NEC PA622XG LCD Large Venue Projector
- Lens Required
|
|
|
|
|
For the current NEC Range Click here
|
NEC Lenses for the PA622XG:
| Model |
NP30ZL
 |
NP12ZL
 |
NP13ZL
 |
NP14ZL
 |
NP15ZL
 |
| |
$1999
|
$1999
|
$899
|
$1999
|
$1999
|
| Screen size range |
52-500" |
30-500" |
40-500" |
60-500" |
60-500" |
| NEC PA622XG Distance Chart (Examples for common Sizes) |
120" (4:3)
2400x1800mm |
2.0m to 2.5m |
2.9m to 3.8m |
3.7m to 7.4m |
7.3m to 11.7m |
11.4m to 17.3m |
150" (4:3)
3000x2300mm |
2.5m to 3.1m |
3.7m to 4.8m |
4.6m to 9.2m |
9.1m to 14.7m |
14.2m to 21.6m |
180" (4:3)
3700x2700mm |
3.1m to 3.9m |
4.4m to 5.7m |
5.5m to 11.0m |
11.0m to 17.6m |
17.6m to 26.7m |
Enjoy design and installation flexibility with a complete line of optional bayonet style lenses, tilt-free installation capabilities and horizontal/vertical lens shift.
Functions and Features
Advanced installation capabilities

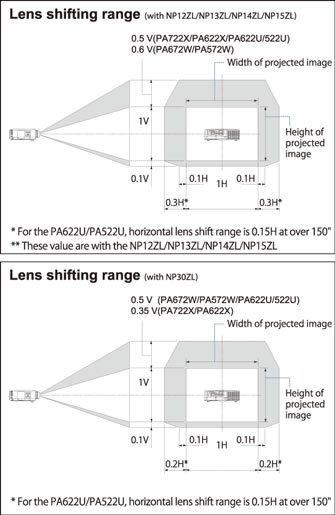

Lens shift function for easily adjusting the position of the projected image
The projector is equipped with a lens shift that allows you to adjust the projected image horizontally or vertically. You can easily adjust the position of the projection just by turning the lens shift dials, without having to move the projector unit itself. Furthermore, the projector is also equipped with a centre lens design for easy alignment.
*The lens shift mechanism does not work when using NP11FL.
*As you maximise the tilt direction of the lens shift, the area surrounding the screen may get darker and shadows may appear.
|
 |
Tilt-free and portrait mode support
The projector can be rotated freely (360°) to point up or down depending on the installation requirements and can be installed on its side to create a portrait image. |
 |
Built-in edge blending
This function seamlessly blends multiple projected images to display a single high-resolution image. |
 |

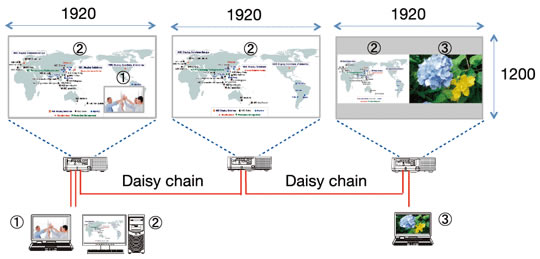

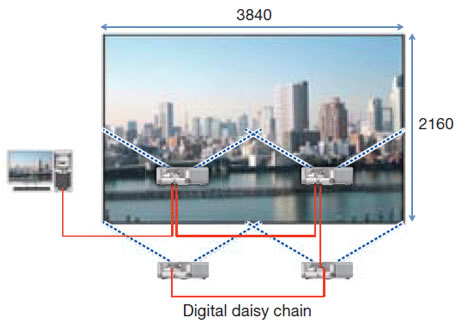

Multiscreen function
Multi-display capabilities and Tiling technologies are integrated into the new PA series. This projector is also equipped with multiple digital input & HDMI output terminals that can connect multiple projectors in a digital daisy chain. These cutting-edge functions produce a beautiful high-resolution image, including a 4K/2K high-resolution display using 4 PA622U/522U projectors and various Picture in Picture/Picture by picture configurations. |
|
Stacking capabilities
This feature allows the projectors to boost an image’s brightness up to 28,800 ANSI lm (PA722X), which is ideal for large screens and environments with strong ambient light. It also prevents the complete loss of an image, which can happen when using only one projector
Geometric correction -
3D REFORM function
This feature corrects horizontal and vertical keystone distortion or adjusts the image when projecting onto an unique shaped screen. |
 |
 |
Fantastic cinema quality picture
Equipped with NEC 4,096 x 2,160 scaler NV1301 and the 3rd SweetVision™ circuit
This 10 bit video processor represents an enormous leap in video processing, with true flagship performance in noise reduction, de-interlacing and scaling.
4K Ultra HD support
( 4,096 x 2,160 / 3,840 x 2,160 )
12 bit gamma correction
Advance colour correction
(6-axis saturation and hue adjustment / skin tone)
Video and film cadence detection
(multi cadence)
Per-pixel motion adaptive de-interlacing
Detail enhancement
Super resolution correction
(3rd SweetVison™)
3D random, mosquito and block noise reduction
Maintenance-free and environment friendly design
The projector uses large two-layer filters. Since they are highly effective at repelling dust, as long as the filter is replaced with new ones when changing the lamp, there is no need for regular cleaning.
ECO mode
ECO mode that curbs electricity consumption and extends the lamp replacement time to a maximum of 4,000 hours.
Energy saving design with a standby power consumption of 0.16 W (200-240 V)
Compatible with diverse signal sources
Built-In HDBaseT support
Simplify your installations with HDBaseT, which is optimized for video applications and supports uncompressed full HD digital video, audio, Ethernet, and various control signals. With only a single cable (up to 100 m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.
Wide selection of inputs and outputs such as HDMI and DisplayPort
The projector is equipped with a wide range of input/output terminals and compatible with a variety of image sources, which lets you connect HDMI, DisplayPort, computer (analogue), 5-core BNC, and video sources. |
|
Specifications
| Model name |
PA722X |
PA622X |
| Method |
Three primary colour liquid crystal shutter projection |
| Specifications of main parts |
|
| |
Liquid crystal panel |
Size |
0.79" (with MLA) × 3 (aspect ratio: 4:3) |
| Pixels(*1) |
786,432 (1,024 dots × 768 lines) |
| Projection lenses |
Zoom |
Manual (zoom range depends on lens) |
| Focus |
Manual |
| Lens shifting |
Manual |
| Lamp wattage (*2) |
350 W AC |
330 W AC |
| Light output (*3) (*4) |
ECO OFF |
7,200 lm |
6,200 lm |
| Contrast ratio (*3) (all white/all black) |
6,000:1 |
5,000:1 |
| Screen size(throw distance) |
40" to 500" (throw distance depends on lens) |
| Colour reproducibility |
10-bit colour processing (approx. 1.07 billion colors) |
| Audio output |
Built-in 10 W monaural speaker |
Quietness
(ECO mode ON/ECO mode OFF) |
33 dB / 39 dB |
| Scan rate |
Horizontal |
Analog: 15 kHz, 24 to 100 kHz (24 kHz or greater for RGB inputs), conforms to VESA standards / Digital: 15 kHz, 24 to 153 kHz, conforms to VESA standards |
| Vertical |
Analog: 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards / Digital: 24, 25, 30, 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards |
Max. display resolution
(horizontal × vertical) |
Analog: 1,920 × 1,200 (with Advanced AccuBlend) / Digital: 4,096 × 2,160 (with Advanced AccuBlend) |
| Input/output connectors |
|
| |
Computer/ Component |
Video input |
Mini D-Sub 15-pin × 1, 5BNC × 1 |
| Audio input |
Stereo mini jack × 2 |
| Audio output |
Stereo mini jack × 1
(selected from Computer / BNC / HDMI) |
| HDMI® Input Terminals |
Video input |
TypeA 19 pin(HDMI® connector) with HDCP(V1.4) × 2 |
| Audio input |
Yes |
| HDMI® Output Terminal |
Video output |
TypeA 19 pin(HDMI® connector) with HDCP(V1.4) × 1 |
| Audio output |
Yes |
| HDBaseT ™ |
Video input |
RJ45 × 1 (IEEE 802.3/802.3u 100BASE-TX),
Shared with Ethernet |
| Audio input |
Yes |
| DisplayPort ™ |
Video input |
DisplayPort 20 pin connecter × 1 |
| Audio input |
Yes |
| BNC (CV) |
Video input |
BNC × 1 |
| Audio input |
Stereo mini jack × 1 ,shared with 5BNC,
BNC (CV), BNC (Y/C) |
| BNC (Y/C) |
Video input |
BNC × 2 |
| Audio input |
Stereo mini jack × 1 ,shared with 5BNC,
BNC (CV), BNC (Y/C) |
| PC control connector |
D-Sub 9-pin × 1 |
| USB port |
USB type A × 1 |
| Ethernet port |
RJ-45 × 1, (Supports 100BASE-TX),
Shared with HDBaseT |
| Remote connector |
Stereo mini jack × 1 |
| 3D SYNC output terminal |
5 V / 10 mA, synchronized signal output for 3D use |
| Usage environment |
Operating temperature: 5 to 40°C (*5), Operating humidity: 20 to 80 % (with no condensation) |
| Storage temperature: -10 to 50°C, Storage humidity: 20 to 80 % (with no condensation) |
| Operating altitude: 0 to 3,650 m (1,700 to 3,650 m: Set [FAN MODE] to [HIGH ALUTITUDE]) |
| Power supply |
100-240 V AC, 50/60 Hz |
| Power consumption |
ECO mode off |
483 W (100-130 V)
460 W (200-240 V) |
463 W (100-130 V)
440 W (200-240 V) |
| ECO mode on |
377 W (100-130 V) / 362 W (200-240 V) |
| STANDBY (NORMAL) |
0.11 W (100-130 V) / 0.16 W(200-240 V) |
| STANDBY(HDBaseT STANDBY) |
7.4 W(100-130 V) / 7.9 W(200-240 V) |
| Rated input current |
5.5 A-2.2 A |
5.1 A-2.2 A |
| Dimensions (W × H × D) |
499 × 142 × 359 mm
(Net dimensions not including protruding parts)
591 × 259 × 491 mm
(Gross dimensions) |
| Weight |
8.4 kg (not including lens) 11.2 kg (Gross weight) |
Supplied Accessories
|
Remote |
|
|
|
|
 |
