Five types of optional lenses and a wide lens shift range provides improved flexibility of your installation.
Equipped with a product design and adjustment functions that are desirable with a variety of installation requirements
Lens shift function for easily adjusting the position of the projected image
The projector is equipped with a lens shift that allows you to adjust the projected image horizontally or vertically. You can easily adjust the position of the projection just by turning the lens shift dials, without having to move the projector unit itself. Furthermore, it is also equipped with a centre lens design for easy alignment. |
 |

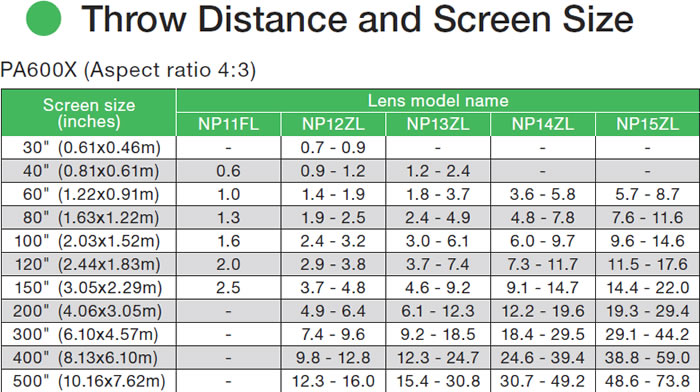

Five types of optional lenses available for flexible installation
The projector supports five types of optional lenses which are adapted to a variety of installation locations and projection methods, including conference rooms, auditoriums, and exhibition halls. The NP13ZL is compatible with 2x zoom, which allows it to handle an even PA600X broader range of projection distances. The lenses can be easily changed by using the lens release button.
*The lenses are not included with this unit.
Considering the environment and offering simple maintenance contributes
to a reduced total cost of ownership.
- Energy saving design with a standby power
consumption of 0.2W
- “Eco Mode” that curbs electricity consumption
and “Carbon Meter” display
- Extends the lamp replacement time to a maximum of 4000 hours in Eco Mode
- Silent design of 31dB in Eco Mode
that will not disturb meetings and classes
Equipped with a maintenance-free large filter
The projector uses large two-layer filters.
Since it is highly effective at repelling dust, as
long as the filter is replaced with new ones
when changing the lamp, there is no need for
regular cleaning.
Environmentally friendly
optional cable cover
offered that uses bio-plastics
Compatible with diverse image sources and network control,
with a commitment to reproducing high quality images
Simple “DICOM SIM. Mode” allows for
the easy display of medical images
The projector can display medical images saved
in the DICOM format and handle presentations
such as academic conferences. |
 |
Compatible with wired / optional wireless LANs
(IEEE 802.11b/g/n) and various network controls
(1) The projector supports Microsoft Windows Media Connect,
which transmits still and moving images (streaming) to projectors
connected to the network (does not support segment overrun).*
(2) Allows you to display files that are in the shared folder of
computers connected to the network.*
(3) Supports a Wi-Fi Protected Setup (WPS). The projector can be
synchronized with the access point and can be connected with a
wireless LAN automatically via the infrastructure.
(4) The projector is equipped with an access point connection that
improves the security of wireless LAN connections
(5) Compatible with the Windows Network Projector and PJ Link
*For details about supported file types and restrictions, please visit our web site.
Wide range of input/output terminals
such as HDMI and DisplayPort
Equipped with a wide range of input/output terminals and compatible
with a variety of image sources such as DisplayPort, which lets you
connect the projector from about 15 meters away
with minimal signal decay, as well as computer
(analogue), 5-core BNC, HDMI, video, and S-video.
Crestron RoomView® compatibility
The projector supports Crestron RoomView®,
allowing multiple devices connected to the network
to be managed and controlled from a computer.
Equipped with a 10W monaural speaker
High resolution design through HQV® technology
The power can be controlled intensively with
Direct Power Off.
High resolution of WUXGA panel (PA500UG)
|
