Easy to use and at the right price, NP Short Throw Series projectors provide all the essential features that you need to connect with your audience.

ESSENTIAL FEATURES FOR EASE OF USE
° Top cover lamp change provides for easy lamp changes without removal of the projector from the mount
° Bright images easily viewed in any application
° Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
° Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
° Remote diagnostics enable the user to monitor and make adjustments to the projector remotely

VERSATILE FEATURES AND POWERFUL PERFORMANCE
° With XGA and WXGA native resolutions, high brightness up to 2600 lumens and patented NEC technologies, NP Short Throw Series portable projectors display impressive image quality
° Dual computer inputs, including DVI-I, ensure quick switching between presentations
° Powerful 7-watt speaker provides volume needed for large rooms
° Nearly silent operation with noise level as low as 29dB in ECO Mode
° Cabinet control lock setting enables user to deactivate buttons on cabinet to prevent unwanted changes to projector settings

DESIGNED WITH THE ENVIRONMENT IN MIND
° Extended lamp life with ECO Mode™ technology increases lamp life up to 5000 hours, while lowering power consumption
° Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
° Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
° Carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is
encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
° Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) ensures efficient energy usage
° Countdown sleep timer can be set to automatically turn off the projector
° Filter life increased by three times compared to previous generation models

Multiple input/output terminals
Multiple input/output terminals include analogue RGB, DVI-I(digital), Video, and S-Video. By using the DVI-RGB adapter, analogue RGB signals can be connected from two computers.

Wired LAN Connectivity
Connect a LAN cable to the LAN port (RJ-45) on the projector to control the projector from a remote PC via the network; for instance, use the PC to turn the power to the projector on and off or switch input signals.
* It is necessary to install the PC Control Utility Pro control software on your PC separately. the projector to be controlled from a PC.
From May 2009, the PC Control Utility Pro can be downloaded from http://www.nec-display.com/dl/en/.

Auto power on (AC / Computer Input)
By inserting the power cord into an outlet, projection will start immediately without pressing the power button. If the Default Source is set to Auto, simply by turning on the power, the projector automatically finds the input signal and projects the images. When the projector is in Standby mode, applying a computer signal from a computer connected to the COMPUTER1 IN input will power on the projector and simultaneously project the computer’s image. This functionality eliminates the need to always use the POWER button on the remote control or the projector cabinet to power on the projector.

Quick start & Direct Power Off
Your projector is setup and ready to display your presentation after 8 seconds from powering on, with NEC's Quick Start function. And for a speedy shut down, projector can be turned off using a power strip equipped with a switch and a breaker without powering down the projector, with the Direct Power Off function.

Auto Vertical Keystone Correction
The projector will automatically detect and correct vertical inclination and trapezoidal distortions. The angle is adjustable vertically within a range of about +/-20 degrees from the projected angle.

Wall Colour Correction for vivid images even without a screen
Without a screen, projected images are affected because of the colour of the wall or blackboard you are projecting on to. The built-in colour correction for projecting images on a coloured wall or blackboard in this projector means that the colour tones of the projected image is approximate to those that are projected on to a white screen. The following nine colour options are available : whiteboard, blackboard, blackboard (grey), light yellow, light green, light blue, sky blue, light rose, and pink.

Variable Enlargement Function of the projected image
The function is capable of enlarging any section that you want to emphasize, such as a detailed table or graph up to a maximum of 4 times (16 times the area).

Very quiet operation in Eco Mode
Eco Mode operation drops projector noise to 29 dB for very quiet operation and extends the lamp replacement period up to a maximum of 4000 hours. In this mode, total cost of ownership can be effectively reduced. The projector can be put in to Eco Mode very easily with press of a button on the remote control.

Employing the newly developed Panel Crashed Air Cooling Technology contributes to the ecology as well
By blowing air from two different directions into the several-millimetre gap between the optical components and striking near the centre of the heat-generating components, the airflow is disturbed and blown directly onto the optical components. Compared to the ordinary cooling system that blows air from a single direction, the cooling efficiency is improved.

This technology suppresses the temperature increase of the optical components by around 10% to 20%, which in turn reduces the number of rotations of the cooling fan required to maintain the appropriate cooling performance and also reduces power consumption and noise emission.

Closed Caption
If the closed caption signals are included in the Video signal or the S-Video signal, the audio data can be displayed on the screen as captions.

Virtual Remote Function Download the Virtual Remote Tool utility software to operate the power on/off or switch inputs on the projector from your PC by using the supplied VGA signal cable. When connected to a PC, the projector can be controlled without using the remote controller or operating the buttons on the main unit of the projector, so that you can efficiently and effortlessly proceed with meetings or classes. Check with our website.(http://www.nec-display.com/dl/en/) * The Virtual Remote Tool can be downloaded from May, 2009. * Use the PC Control Utility Pro to execute the same operation via the LAN. * Depending on the specifications of the connected computer and the versions of the graphics adapter and driver, the function may not operate properly.

The projector supports the optional NP02RC remote controller to register the control ID. The respective projectors can be operated individually with the optional remote controller (NP02RC) by setting the individual control ID numbers to the respective projectors. If multiple projectors are used in the same room, the respective projectors can be operated individually by switching the ID. It is also possible to operate multiple projectors collectively by setting the same ID for all of them.

Built-in 7W speaker for integrated audio solutions

4.5m Power Cable

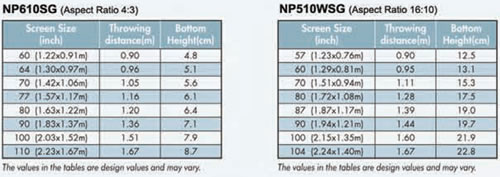

Throw Distances
