Keep your audience engaged during presentations with the NEC M260XG, a value-driven, eco-friendly portable projector ideal for education and small-to-medium-sized business environments. This 2600-lumen model delivers remarkably bright images and features wired and wireless (optional) networking, HDMI and USB inputs, high contrast, and up to 6000 hours of lamp life (in ECO ModeTM).

It was designed with the environment in mind with a carbon savings meter, extended lamp and filter life, and energy-saving features such as quick startup and direct power off. Whether in the classroom or boardroom, the M260X's multitude of advanced technologies allows you to start up in seconds, connect with your audience and shut down with ease.

• HDMI input connects you to high-definition sources
• USB Viewer allows you to present without a PC using a USB flash drive (Jpeg Images Only)
• variable audio-out allows the remote control to adjust the volume of self-powered external speakers connected to the projector
• ECO ModeTM technology helps extend lamp life and lowers power consumption
• integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
• integrated RJ-45 and/or wireless LAN (optional) quickly connects to the LAN for control or image transmission
• dual computer inputs ensure quick switching between presentations
• virtually maintenance-free design includes improved 6000-hour filter life.

An array of advanced functionality for environmentally friendly operation, with improved ease-of-use and installation.

Enhanced design and settings for greater ease-of-use

Newly designed from the user’s perspective

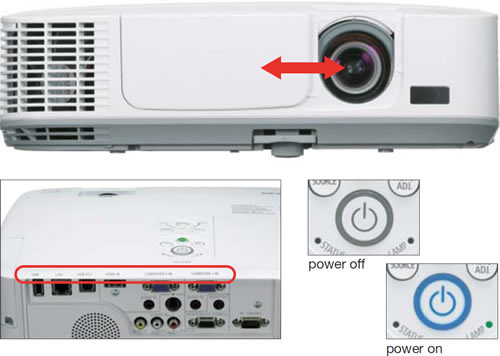

The sliding lens cover temporarily stops video and audio when it is closed. In addition, the design has been completely updated to improve settings and operation. For example, the names of connectors are displayed on the top of the unit to make it easier to find their position on the back and the operation buttons have been made larger so they are easier to press. The power light is an easy-to-see blue LED so you can determine the power status in a glance.

1.7x zoom
The projector has a 1.7x zoom to cover a wide projection distance, so you can setup in various locations.

Interfaces for various functions The projector is equipped with an HDMI connector for projecting digital images in high quality, as well as a wired/wireless (option) LAN port. Model name of the optional wireless LAN unit* varies depending on the country where the unit is used (or to be used). You can connect the projector to a computer using a standard USB cable and project the computer screen from the projector without needing computer cables. The remote control of the projector can perform computer mouse operations so you don’t have to switch between mouse and remote for different operations. The projector also has a viewer function that lets you project data (JPEG) stored on USB memory, so you can give presentations without a computer.

“No signal guidance” for easy cable connections When the power of a device connected to the projector is switched on, the input signal is automatically detected and projected. What’s more, when there is no signal being input, the “no signal guidance” lets you know in a glance where the cable should be inserted, so your setup runs smoothly.

Enhanced functions for reduced power consumption and TCO

A complete lineup of eco functions

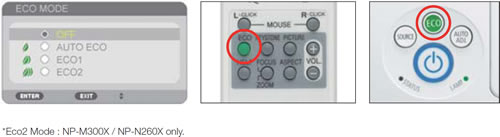

The projector has an Auto Eco Mode, which automatically adjusts the brightness to suit the projected image, and Eco2 Mode*, which is convenient when it’ s too bright during small screen projection. There are Eco buttons on the projector and remote control so you can more easily enable Eco Mode.

Greatly improved lamp lifetime The time between lamp exchanges has been improved significantly. For normal use and Eco Mode, the times are 5,000 and 6,000 hours, respectively.* The low power design cuts energy consumption in standby (called “Power-saving Mode” in reference Excel sheet) to 0.2 W (100-130 V AC)/0.4 W (200-240 V AC), which helps with TCO reduction. *For the M300X, M260X, M230X and M260W. For the M350X and M300W, the times for normal and Eco Mode are 4,000 and 5,000 hours, respectively.

Large filter enhances protection against dust
The large double-layer filter improves protection against dust. If you exchange the filter when you exchange the lamp, there is no need for regular cleaning.

Other functions

• Designed for a quiet noise level of 27 dB (in Eco Mode) to prevent annoying operation noises during projection. (M300X, M260X, M230X and M260W)

• Quick Cooling and Direct Power Off allow speedy cleanup and transfer after use

• Auto Power On automatically switches on the power when the power cord is connected or a signal is input

• Virtual Remote lets you use your computer to switch the power of the projector on and off and change the input signal

• Wall Colour Correction for vivid images even without a screen.

• Auto Vertical Keystone Correction

• Built-in monaural speaker with a powerful 10W output

• Front ventilation for effective heat dissipation

• The Carbon Meter lets you check the amount of CO2 you reduced by using Eco Mode

• Includes a remote with the control ID registration function, which allows operation of multiple projectors with a single remote.

Display 3 x 1.6 cm (0.63") p-Si LCD Panel
Native Resolution 1024 x 768 (XGA)
Brightness 1 2600 ANSI Lumens (approx. 80% in Eco Mode )
Contrast Ratio 1 2000:1
Lamp 180 W AC (145 W AC Eco Mode )
Lamp Life [hrs] 5000 (6000 Eco Mode )
Lens F= 1.7–2.2, f= 17.5–29 mm

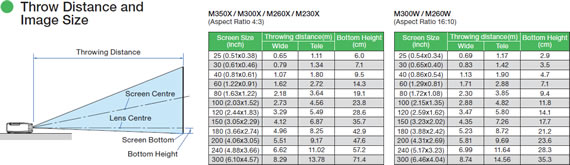

Projection Factor 1.3 – 2.2 : 1
Projection Distance [m] 0.6 – 13.8
Screen Size (diagonal) [cm] Minimum: 63.5 / 25" ; Maximum: 762 / 300"
Zoom Manual
Focus Adjustment Manual
Supported Resolutions 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1366 x 768 (WXGA); 1360 x 768 (WXGA); 1280 x 1024 (SXGA); 1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (MAC 21"); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC 16"); 800 x 600 (SVGA); 720 x 576 SDTV 480p/480i; 720 x 576 (SDTV 576p/576i); 720 x 480 SDTV 576p/576i; 720 x 480 (SDTV 480p/480i); 640 x 480 (VGA/MAC 13")
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz
RGB (analog) Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
HDMI™ Input: 1x HDMI® (Deep Color, Lip sync)
Video Input: 1 x RCA
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
PC Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45
USB 1 x Type B; 2 x Type A (USB 2.0 high speed)
Video Signals PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M
Remote Control AV Mute; Aspect Ratio; Audio Control; Auto Adjust; Digital Zoom; Freeze; Help Eco Mode ; ID set; Picture Adjust; Picture Mode; Presentation and Mouse Control; Source Select
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 239 (Normal) / 193 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by)
Dimensions (W x H x D) [mm] 339 x 99 x 257 (without lens and feet)
Weight [kg] 2.9
Fan Noise [dB (A)] 27 / 34 (Eco / Normal)
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80
Storage Temperature [°C] -10 to 50
Storage Humidity [%] -20 to 80
Optional Accessories Lamp (NP15LP); Wireless LAN module (NP02LM2)
Safety and Ergonomics CE; EuP; TÜV GS; RoHS ; TCO; Gost-R
Speakers [W] 1 x 10 (mono)
Warranty Projector: 5 years parts and labour, Lamp: 6 months or 2000 hours Optical Block Warranty: 2 Yrs/2000 Hrs

Shipping Contents IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Utility software; Security Sticker; Soft Case; Users Manual on CD-ROM; Quick Setup Guide

1 Compliance with ISO21118-2005

Supplied Accessories
Carry Bag	Remote

Rear Panel
