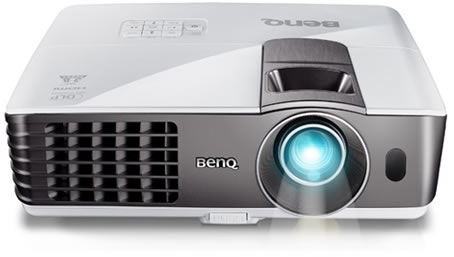

BenQ MX710 DLP Multipurpose Projector






DISCONTINUED

FOR THE CURRENT RANGE OF BENQ PROJECTORS CLICK HERE


Projection Perfect for Every Occasion
The BenQ MX710 is just the projector you need to perfect your presentation in all settings. Featuring XGA resolution with 2700 ANSI lumens and 5300:1 high contrast ratio, the MX710 also offers multi display for ultra-smooth connection, PC-less presentation and 3D ready projection to keep your presentation lookin' great!

Thoughtful Design for Presenters

Multiple Display Options for Various Office and Classroom Needs
Projectors are powerful tools for making successful presentations. To ensure a smooth presentation on your part, BenQ has integrated various display functions into the MX710 to fit every need!

USB Display offers the plug-and-play convenience of USB connection – with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature also offers simultaneous 1-8, 4-1 or partial projection display option for better content management for discussions, presentations, training and classroom teaching.

Wireless Display keeps cables and wires out of everyone's way with the BenQ Wireless Display Adapter (optional accessory) to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.centralized network control via USB 2.0 seamless WLAN connectivity.

10W Microphone Audio Power
The MX710 is built with 10W industry-leading audio power and microphone input to empower your presentation! The 10W speaker is sealed and secured within the projector with BenQ's anti-shake design to deliver crisp-clear audio quality and projection stability, while the microphone input connects you to conventional and wireless microphones and microphone headsets.

What's more, the MX710 can be used as an audio system only even when it's on standby mode! Finally, you can have a blast presenting without straining your voice!

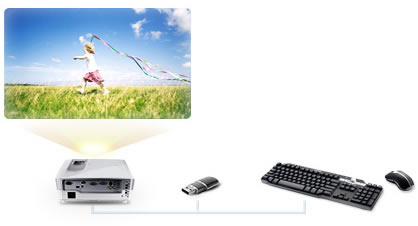

Hassle-Free PC-Less Presentation
Enjoy a hassle-free presentation with the USB Reader and Remote Desktop functions! The USB Reader function enables a JPEG image presentation with a USB flash drive! It's as easy and plug and play! The Remote Desktop function allows you to present using a wireless mouse and keyboard! Consider it an upgrade from the USB Reader option! You'll get to access everything from your computer remotely on the projection screen! Going PC-less also means you'll get to save up on computer purchase, maintenance and repair for your school or company!


Auto / Manual Keystone ± 40°
Automatically or manually, the MX710 gets rid of misshaped images, graphics and charts instantaneously via its ± 40° keystone adjustment function! With the MX710, a perfect square is all you'll see!
Closed Captioning
Display subtitles in video content without the need for an external closed-captioning device with the MX710. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.

Thoughtful Teaching Template Design
To make your teaching job easier, BenQ has added the teaching template function to the MX710. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.

Multi-Function Connectors




Specifications
Projection System
DLP® by Texas Instruments®
Native Resolution
XGA (1024 x 768)
Resolution Supported
VGA (640 x 480) to UXGA (1600 x 1200)
Brightness
2700 ANSI Lumens
Contrast Ratio
5300:1 (Full on / Full off)
Image Size
32” to 300”
Throw Ratio
1.5 to 1.97 (65" @ 2M)
Zoom Ratio
Manual Zoom, 1.3:1
Keystone correction
Auto Keystone
Manual Vertical ± 40 Degree
Lens
F = 2.59 ~ 2.87
Lamp Life
210W, 4000 / 5000 hours (Normal / Economic mode)
Operational Noise
30 / 26 dB (Normal / Economic mode)
Displayable Colours
Full 16.7 million color palette
Aspect Ratio
4:3 Native, 5 aspect ratios selectable
Horizontal Frequency
31 ~ 92 kHz
Vertical Scan Rate
48 ~ 120 Hz
Input Terminals

PC:
Analog RGB: D-sub 15 pin x 2
LAN networking: RJ-45 x1 (LAN Display)
USB connector:
- Type A x1 (USB thumb drive, mouse/ keypad control)
- Type mini B x1 (USB display)

A/V:
HDMI x1
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Microphone: Stereo Mini Jack x1
Audio L/R : RCA x 1 (set)
Stereo Mini Jack x 1

Output Terminals

PC:
D-sub 15 pin x 1

Audio:
Variable Audio Out: Stereo Mini Jack x 1
Speaker: 10W x 1

Control Terminals
Serial Connector: RS232 9 pin (male)
RJ45 x1
USB connector: Type mini B x1 (page up/down) shared
Video Compatibility
NTSC / PAL / SECAM
Dimensions (HxWxD)
104 x 311 x 244 mm
Weight
Net weight: 2.7 kg.
Gross weight: 4.7 kg.
Auto Switching Power Supply
100 to 240 VAC, 50 to 60 Hz
Power consumption
286W, Standby < 1W
On-Screen Display Language
Bulgarian / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hungarian / Indonesian / Italian / Japanese / Korean / Norwegian / Polish / Portuguese / Romanian / Russian / Simplified Chinese / Spanish / Swedish / Turkish / Thai / Traditional Chinese (26 Languages)
Picture Modes
Dynamic Mode
sRGB Mode
Presentation Mode
Cinema Mode
User 1 Mode
User 2 Mode
Functions
BrilliantColor™
Blank
VIDI™
Panel Key Lock
3D Color Management
Auto Off
Crestron LAN Control
Security Password
Closed Captioning
HDTV Compatible
Digital Zoom (x2)
High Altitude Mode
Variable Audio Out
"Q?" Hot Key for FAQ
Quick Cooling
3D Ready
Quick Auto Search
Freeze
Included accessories
Quick Start Guide
Manual CD
Remote Control w/battery
VGA Cable
Power Cord
Soft Carry Case
HDTV Compatibility
480i / 480p / 576i / 576p / 720p / 1080i / 1080p
Supplied Accessories
Carry Bag
Remote

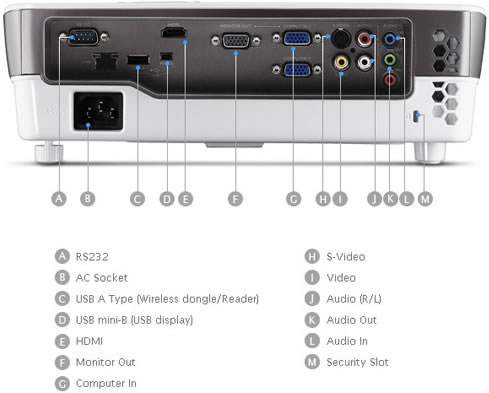

Rear Panel



Optional Accessories

Universal Flush Projector Ceiling Mount FB-1 *Recommended*
Your Price:
$149




Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


BenQ Wireless Adapter 5J.J0614.J21
Your Price:
$99

SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

• Windows 2000, Windows Vista, Windows XP Compatible.
Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video
Not Mac Compatible.




HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
