CANON XEED X700 LCOS XGA High Brightness Projector



DISCONTINUED

FOR CURRENT CANON PROJECTORS CLICK HERE




  • LCOS technology with XGA resolution
  • Ultra-bright 4000 lumens with AISYS optical system
  • 1000:1 contrast ratio
  • Just 31dBA in Quiet Mode
  • 1.7x powered zoom
  • Automatic set-up
  • HDCP-enabled DVI port
  • Ultra-portable design

Starlight brightness. Seamless clarity

Canon's XEED X700 multimedia projector is one of it's most advanced yet. That's because it combines two unique technologies - Canon's Aspectual Illumnination System (AISYS) and super-slim Liquid Crystal on Silicon (LCOS) panels - that not only project great quality images, but also make XEED projectors extremely compact and affordable.

LCOS quality, XGA resolution

The XEED X700 uses LCOS panels to project smooth, faithful images without the unwanted 'lattice effect'. Native XGA resolution (1024 x 768 pixels) provides the definition needed for clear, crisp text and moving images.

Incredibly bight

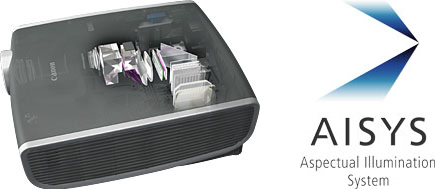

With ultra-bright 4000 lumens projection, the XEED X700 ensures that images remain clearly visible in bright light and large venues. The new AC lamp offers increased efficiency and longer lamp life. Canon's Advanced AISYS optical system optimises the projector's light path, achieving powerful output from a compact, lightweight chassis.

Stunning contrast
The AISYS optical system eliminates the contrast limitations of traditional LCOS projectors. The result is an incredible 1000:1 contrast ratio - giving lifelike colour tones and deep blacks that faithfully reproduce the source image.

No distractions
In Quiet Mode the XEED X700 is near-silent with fan noise reduced to just 31dBA - keeping the room free from distractions. Progressive scan display is supported for flicker-free moving images.

Zoom lens

The motorised Canon 1.7x wide-angle zoom lens projects large images from short throwing distances, enabling flexible projector placement. The powered lens can be operated from the control panel and remote control handset. The lens coating prevents ghosting and flare.

Simple set-up

The XEED X700 makes setting up simple. Auto Focus detects the projector's distance from the screen and focuses accordingly. Auto Screen Colour Correction detects the colour of the projection surface and optimises settings accordingly. Vertical Keystone Correction is automatic, eliminating trapezium distortion of the image. The active input port can also be selected automatically, with Auto Input selection.

Advanced connectivity

The DVI port (Digital Visual Interface) of the XEED X700 provides the best possible image quality from digital sources. Support for the HDCP standard allows high quality playback of encrypted digital content. The projector can be controlled over an Ethernet network via the optional Network Adapter.

Compact design

The portable size of the XEED X700 makes it easy to install. Weighing just 4.8kg, AISYS technology facilitates the combination of high brightness and compact size.


Specifications

Model:

Product Name:

XEED X700

Product Class:

Ultra Portable

  LCD Panel:

Type:

LCOS Reflective Display, TFT Active Matrix

Size & Number:

0.7" diagonal, 3 panels

Aspect Ratio:

4:3

Native Resolution:

1024 x 768 (XGA), 786,432 pixels

  Optics:

Light Source:

275W NSH AC Lamp

Lens F Number & Focal Length:

F1.85 - F2.5; f=21.7 - 35.8mm

Zoom Magnification & Control:

1.7x Motorised

Focus Control:

Motorised Auto/ Manual Focus

Lens Shift:

9:1 fixed

  Image & Audio:

Uniformity:

88%

Brightness:

4000 lumens

Contrast Ratio:

1000:1 (full on/full off)

Projection Distance Coverage:

1.1m - 9.0m (3.0m - 4.9m for 100" image)

Screen size:

40" - 300" (81 x 61cm - 610 x 457cm)

Digital Zoom Magnification:

1x - 12x

Keystone Correction Range:

  Vertical: ±20º (Auto/Manual)
  Horizontal: ±20º (Manual)

Digital RGB Compatibility:

D-XGA/D-SVGA/D-VGA

Analogue RGB Compatibility:

UXGA /SXGA+/SXGA/WXGA/XGA/SVGA/VGA

Video Colour Systems:

1080i/1035i/720p/575p/480p

HD/Component Scan Systems:

1080p/1080i/720p/575p/575i/480p/480i

Scanning Frequency:

Horizontal: 15-100kHz; Vertical: 50-100Hz; Clock: 170MHz

Display Modes:

Standard, Presentation, Movie, SRGB

Image Enhancement :

12-bit Digital Gamma Correction

  Mechanics:

Built-in speaker:

1.0W RMS, Monaural

Front Elevation Mechanism:

Mechanical foot, 11.9º maximum image elevation

  Connectors:

Digital RGB/ Video Analogue RGB Input 1:

DVI-I 29-pin,HDCP compatible

Analogue RGB Input 2:

Mini D-Sub 15-pin (component/SCART via optional cable)

Analogue RGB Output:

Mini D-Sub 15 pin

Composite Video Input:

RCA x1

S-Video Input:

Mini-DIN 4 pin

Stereo audio Input:

3.5mm x2 stereo mini jack x 3

Mouse Control:

USB Type B

Service Port/Projector Control:

Mini-DIN 8 pin

  Ratings:

Dimensions (W x H x D):

266 x 114 x 336mm

Weight:

4.8kg

Power source:

100V 240V AC, 50/60Hz

Power Consumption:

Normal Mode: 360W/ Quiet Mode: 290W/ Standby: 7W

Noise Level:

Normal Mode: 35dBA/ Quiet Mode: 31 dBA

Warranty:

2 years (90 days for lamp)

Operating Environment:

+5ºC to +35ºC

Storage Environment:

-30ºC to +60ºC

  Main supplied Accesories:

Remote Control:

Use two AAA batteries (incl). Communication range about 7m (within 60 degrees of the receiver)

Computer Connection Cable:

DVI computer connection cable,USB cable, AC main power cable, Component video cable
