| INFOCUS X17 DLP PORTABLE MULTIPURPOSE PROJECTOR |
|
|
 |
|
 |
FOR CURRENT INFOCUS PROJECTORS CLICK HERE |
 |
A Shared Vision
InFocus introduces the InFocus X17 digital multimedia projector – designed for collaborative environments, including the office, classroom or large-format public display. This projector is even perfect for your very own home theater thanks to the astounding built-in 5 Watt Speakers. As an all-new take on affordable, high-quality digital projection the X17 features advanced DLP® technology with a magnificant 6 segment colour wheel in a compact size with an integrated audio system and secure installation options. And, functioning with a whisper-quiet 29 dB, this projector successfully reduces all audible noise interruptions.
Performance Factor
The search for a steady-performing, reliable projector ends here and it is completely affordable. The X17 features 2400 Max ANSI Lumens and an 2000:1 contrast ratio which equates to bright images with lush color saturation and deep black levels, even in meeting spaces with present ambient light. The X17 utilizes the latest BrilliantColor™ technology to output true-to-life colors and shades through a wide, short throw lens, providing big image flexibility to smaller rooms.
Contributing More
Nearly all computers utilize a VGA output for monitors and projectors, so the X17 hosts VGA input for data presentations, along with S-video and composite video inputs for multimedia presentation material from a DVD player, camcorder or digital camera. This projector offers onboard serial input for IT integration applications - providing full functionality with maximum flexibility at an affordable price. Also, the X17 beautifully projects video content, so when business ends on Friday feel free to enjoy these projectors at home.
On the Move
The compact nature of the X17 make this projector functional in any meeting space or in the home and enable portability from room to room.

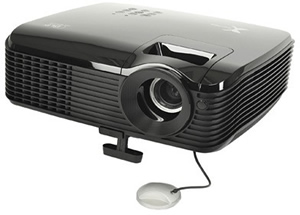

X17 Overview
The X17 features impressive brightness and contrast with XGA resolution and provides detail and clarity on the screen. Most portable computers operate with XGA resolution, so the X17 will connect and project from laptops without any further adjustments.
The Highlights
- 2400 Max ANSI Lumens
- 2000:1 Contrast Ratio
- Onboard 5.0W audio
- Filter-Free design
- DLP® High Resolution XGA chipsets
- Tabletop, Ceiling-mount and rear projection available within factory settings
- 2.4 kg in a compact form-factor
|
Specifications
| Native Aspect Ratio: |
4x3 |
| Supported Aspect Ratio: |
16:9, 4:3, 5:4 |
| Brightness: (max ANSI lumens) |
High Bright: 2400 Lumens
Eco Mode: 2000 Lumens |
| Contrast Ratio: |
2000 : 1 Full On/Full Off |
| Display Technology: |
DLP by Texas Instruments: 0.55" LVDS with Brilliant Color |
| Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050) |
| Video Compatibility: |
Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i |
| Color Wheel (DLP Only): |
6-segment (RGBYCW) |
| Native Resolution: |
XGA |
| Projector Placement: |
Ceiling Projection, Front Projection, Rear Projection |
| Lamp Wattage: |
High Bright: Not Available
Eco Mode: 140 Watts |
| Lamp Life: |
High Bright: Not Available
Eco Mode: 4000 Hours |
| Minimum Image Size: |
2.25 ft (0.69 m) |
| Maximum Image Size: |
21 ft (6.4 m) |
| Standard Lens Zoom: |
1.1 : 1 |
| Standard Lens Throw Ratio: |
1.9 - 2.1 (Distance/Width) |
| Standard Lens Image Offset Ratio: |
120% |
| Standard Lens Projection Distance: |
4.9 - 19.68 ft (1.49 - 6 m) |
| Digital Keystone Correction (Vertical): |
+30°/-30° |
| Digital Keystone Correction (Horizontal): |
Not Available |
| Lens Shift: |
Not Available |

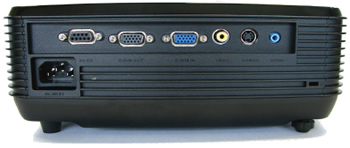

Inputs and Outputs |
| DVI: |
Not Available |
| M1: |
Not Available |
| HDMI: |
Not Available |
| BNC: |
Not Available |
| Component (RCA): |
Number of Inputs: 0
480i/480p/576i/756p/720p/1080i requires optional VESA to Component adapter cable. |
| VESA (HD15): |
Number of Inputs: 1
15-pin analog |
| S-Video: |
Number of Inputs: 1
4-pin mini-DIN |
| Composite (RCA): |
Number of Inputs: 1 |
| Standard Definition TV: |
Composite RCA, S-Video |
| Enhanced Definition TV: |
VGA |
| High Definition TV: |
VGA |
| Computer: |
VGA |
| HDCP Support: |
No |
| Stereo RCA Jacks Inputs: |
No |
| Stereo 3.5 mm Mini-jack Inputs: |
Yes |
| 12v trigger for motorized screens (3.5 mm mini-jack): |
No |
| Projector Control: |
Projector Keypad, Remote, RS-232 |
| Speakers: |
5.0 Watt mono speaker |
| Monitor Output: |
Yes |
| Audio Output: |
Not Available |
Compatibility |
| Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050) |
| H-Sync Range: |
31.35 - 68.7kHz |
| V-Sync Range: |
56 - 85Hz |
| Video Compatibility: |
Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i |
General |
| Audible Noise: |
29 dB |
| Actual Dimensions: |
Height: 4.4 in (11.18 cm)
Length: 10.39 in (26.39 cm)
Width: 8.8 in (22.35 cm)
|
| Actual Weight: |
5.3 lbs (2.4 kg) |
| Shipping Dimensions: |
Not Available |
| Shipping Weight: |
Not Available |
| Projector Warranty: |
2 years |
| Lamp Warranty: |
6 months |
| Accessories Warranty: |
90 days |
Operating temperature:
(at sea level) |
41 - 95° F (5 - 35° C) |
| Maximum Altitude Supported: |
Not Available |
| Typical Power Consumption: |
285 Watts |
| Maximum Power Consumption: |
Not Available |
| Power Supply: |
100 - 240 Volts at 50 - 60 Hz |
| Menu Languages: |
English, French, German, Italian, Norwegian, Portuguese, Simplified Chinese, Spanish, Russian, Swedish, Danish, Turkish, Polish, Finnish, Dutch |
| Approvals: |
UL and c-UL (US/Canada), FCC (US/Canada), CE (CE member countries), GOST (Russia), CCC (China),PSB, MIC, EK |
|
Supplied Accessories
|
Remote |
|
Optional Accessories |
|
|
|
Extended Warranty
|
Program Coverage:
- LCD & Plasma pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
| + 3 Year On-Site Extended Warranty (up to 5 years total) |
$120 |
| + 2 Year On-Site Extended Warranty |
$90 |
| + 1 Year On-Site Extended Warranty |
$75 |
|
|
|
Viewsonic WPG-350 Wireless Presentation Gateway |
Pick Up Avail.
|
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
| . |
Features UL Approved Cabling |
| . |
Filters included on both ends cutting down on noise |
| . |
Maintains stronger signals using a shielded cabling run. |
| . |
Comes in 15pin D-sub format with Male to Male conectors |
| |
|
|
|
|
|
Grandview Universal Projector Ceiling Mount |
Insured Delivery: $16
Pick Up Avail.
|
-Direct to ceiling mount
-Suits most projectors with 3 or 4 mounting holes
- GVMBC = BLACK
- GVMWC = WHITE
|
|
|
|
Grandview GVMBE & GVMWE Extension Pole for Grandview Mount. |
Insured Delivery: $16
Pick Up Avail.
|
- Suites the above Grandview projector mount
- Offers either a 500 or 1000mm drop.
- Available in white, silver and black
- GVMBE = BLACK
- GVMWE = WHITE
- (extension pole only, can only be used with above Hang It Ceiling mount) |
|
|
|
