Hitachi LPTW4001 LCD HD Laser Ultra Short Throw Projector - Optional Wall Mount

Hitachi LPTW4001 LCD Laser HD Ultra Short Throw Projector

The Hitachi LPTW4001 is revolutionary bringing together a very strong 4200 lumen brightness with a long life laser light source. This HD projector produces a clear strong image even in a well lit environment. But does away with the old fashioned lamps bringing in a solid state laser which has a 20,000 hour life. This eliminates the cost of replacement lamps, technicians and down time and is backed up with a 5 year 20,000 hour warranty. The short throw lens allows you to have the projector at the front of the room making for a simpler installation and there is an optional wall mount to truly get it out of the way.

These ultra short throw LCD laser projectors from Hitachi are specifically designed to enhance the visual experience – beit audience or presenter. Vivid colours, bold graphics and crisp text. Our projectors do it all, no matter what the environment. With up to 4,200 ANSI lumens of brightness and WXGA 1280 x 800 resolution, our ultra short throw projectors provide the perfect compatible solution. They also feature a high contrast ratio, cloning function enabling you to copy settings data from one projector to others of the same model, and are wireless presentation ready. Plus, embedded networking gives you the ability to manage and control multiple projectors over your LAN (scheduling of events, centralised reporting, image transfer, and email alerts). Most importantly, the high performance of our projectors is exceptionally reliable and offers a very low cost of ownership.

Features

• WXGA Resolution, 4,200 Lumens
• 500,000:1 Contrast Ratio
• Laser Phosphor Light Source
• 20,000 hours expected light source
• Interactive Pens / Multi-pen capability
• Optional finger touch module
• New & improved wall mount (HASWM06) supports up to 110”
• Wireless Network Option
• 3LCD
• Auto & Manual calibration
• 16 Watt Internal Speakers
• HDMI x 2 (HDCP compliant, HDMI 1 shared with MHL)
• 5 Years or 20,000 Hours (whichever comes first) Warranty
• StarBoard Software supplied – Hitachi’s very own interactive software suite, for when you’re ready to move beyond just annotation.

Interactive Features

• Interactive Software: This product includes a drawing application that offers more sophisticated drawing functions.
• Neatly Convert Letters or Figures: You can automatically convert freehand shapes into geometric objects and handwriting into text on projected images. These operations are easily accomplished with the interactive pens.
• Select a Variety of Useful Tools: The interactive pen lets you operate a compass, ruler, protractor, stopwatch and other useful tools on the projected image, making lessons even easier to understand.
• Advanced Writing/Drawing Capabilities: This projector comes with a built-in function allowing you to directly draw and write on the projected screen without a PC.
• Directly Draw on the Projected Screen: You can write and draw on images projected from connected devices such as a document camera.
• Save and Open Drawn Screens: You can save the image drawn on the projector screen. This enables you to easily manage what you’ve taught in the past.
• Finger Touch Option: This projector incorporates the optional finger touch unit that enables the projector to detect finger touch activity on the screen area. It allows users to annotate and interact with the material presented. Instead of simply showing static images, students and teachers can interact with on screen material for hands-on interactivity that brings learning to life. When using the finger touch unit in a bright environment, auto-calibration may not be used. Must be used on a flat screen. The finger touch unit may not be used in locations where there is sunlight or light from an incandescent light source.
• Convenient Painter Tool Equipped with the Pen, Eraser, Undo, Redo, functions: You can also change the pen colour and thickness. With the easy-to-use Painter tool bar, you can teach classes smoothly.
• Variety Rich Templates: You can conveniently use the interactive function with over 100 pre-installed templates including graphs, graphic organizers, plain colour and many more.
• Multiple Interactive Pens: With up to 6 interactive pens, pupils can do more than just watch–they can interact with the onscreen content. Let them enjoy providing answers, showing their understanding and becoming involved in lessons like never before.
• Windows® Multi Touch: Windows® 8.1/10 multi touch allows users with touch enabled Windows® 8.1/10 systems to operate the PC directly from the interactive screen with up to 6 pens or touches including Windows® 8.1/10 gesture.
• Smart Device Control: Plugging the optional USB wireless adapter into the projector and using the dedicated free online application developed by Hitachi, projectors can be controlled from a tablet or smartphone.
• Starboard Interactive Presentation Software: Hitachi’s world-class interactive StarBoard Software (SBS) is the next standard in collaboration, information sharing and dynamic presentation software. With a customizable interface and toolbar, Starboard streamlines your workflow and improves production. While you would expect to pay hundreds of dollars extra for similar interactive software from the competition, Hitachi bundles it as a standard feature with each interactive projector.

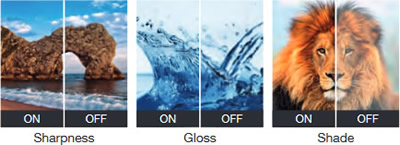

Accentualizer Hitachi original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.

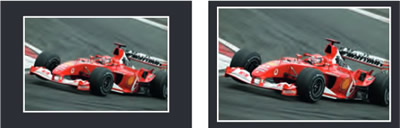

Aspect Zoom Aspect Zoom makes the maximum image size on the screen while keeping the aspect of the image.

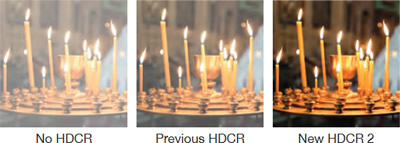

HDCR2 (High Dynamic Contrast Range) When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The recent enhancement to HDCR2 achieves not only auto tone enhancement but also auto color enhancement. This results in clear and vivid images even in bright rooms.

	Cloning Function Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ settings such as gamma and keystone via USB memory, it saves countless hours in setup and installation
	MHL™ MHL (Mobile High-Definition) allows users to mirror their phone/ tablet screen with the projector display. It is compatible with any and all apps.
	Perfect Fit 2 Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
	Projector Quick Connection App For Mobile Devices Our iOS and Android applications offers projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL5G wireless adapter.
	Input Source Naming Users can name input sources in simple language instead of factory default names.
	Microphone Input A microphone can be used via the jack located on the input panel. Allows for more dynamic presentations even in standby mode.
	Network Control, Maintenance and Security Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.
	PC-Less Presentation By using a USB memory stick or other storage device, you can use the projector without a computer for Jpeg or video presentations. Menus are easy to see with a thumbnail display. Additionally there is also a slideshow and video function.
	PIN Lock / MyScreen / MyText PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model. name, serial number or location.
	PJMessenger PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
	Present Content via LAN Hitachi’s suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.
	Template Function Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates to choose from.
	Wireless Presentation Compatible Connect the projector to a computer or your network using the optional USB wireless adapter (part number USBWL5G). The adapter supports IEEE802.11.
	5 Year / 20,000* Hours Light Source Warranty The new laser phosphor light source offers approximately 20,000 hours (normal mode) of operation time and is virtually maintenance free. There is no lamp to replace providing a dramatic reduction in total cost of ownership. *5 Years or 20,000hrs. Whichever comes first
	Built-in Scheduler Allows easy management of the unit.
	Crestron, Extron, AMX certified Allows ease of use with their products.

Specifications

Panel Size 3 LCD 15mm (0.59" ) Panel Structure 3LCD Resolution WXGA (1280 x 800) Light Output (Brightness) ANSI Lumens LP-TW4001: 4200 (Normal) Contrast Ratio 500,000:1 System (Hours) 20,000 Lens Built-in Lens Zoom Digital zoom x 1.35 Lens Focus Powered focus Projection Lens F Number 1.6 Throw Distance 0.413m - 0.903m (centre of glass to screen) Throw Ratio (:1) 0.3 Diagonal Display Size 60 - 130" (110" Max on Hitachi Wall Mount) Installation Ceiling, Tabletop, Rear Speakers 16W mono Digital Keystone Correction (Degrees) Horizontal: ± 5º / Vertical: ± 5º Picture Modes Normal, Cinema, Dynamic, Whiteboard, DICOM SIM, User-1, User-2, User-3 Picture Adjustments ASPECT selection (Normal/4:3/16:9/16:10/14:9/Zoom/Native), Perfect Fit (4 corners and 4 sides), Frame Lock (Data signal with vertical frequency of 49 to 51 Hz, 59 to 61 Hz), HDCR, Image blank by RS232C/Remote control, Image Optimizer, Magnify, Mirror Reverse Image, Up-side Down Image Operating Features Keystone V/H, PerfectFit, Standby Audio, Audio pass through, Cloning function, Easy schedule setting Network Features Wireless Capability(Option), Multi Projector, Moderator Control Mode, Projector Quick Connection (iOS / Android app), Projector Monitoring and Control from a Remote Location, E-mail Alerts Security Features Password/Myscreen Password, Pin Lock, Key Lock Supported Languages 34 Languages (English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese(Brazil), Indonesian, Vietnamese, Hebrew) Digital Input HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL) Analogue Input 15-pin Mini-D-Sub x 2, RCA Jack x 1 Video Output 15 pin Mini D-Sub x 1 (shared with analog computer input) Audio Input 3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1 Audio Output 3.5mm Stereo Mini Jack x 1 RS-232C Control 1 x 9-pin D-Sub Wireless LAN USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz) (optional) Wired LAN RJ45 connector x 1 USB Type-A USB Type A x 2 (PC less Presentation or Wireless adapter) USB Type B USB Type B x 1 (USB display or USB mouse control) Power Supply AC 100V – 120V / AC 220V – 240V (50/60Hz) Operating Power Consumption LP-TW4001: 350W / LP-TW3001: 280W Standby Power Consumption Less than 0.5W Weight LP-TW4001: 7.6Kg / LP-TW3001: 7.4Kg LP-AW4001: 7.6Kg / LP-AW3001: 7.4Kg Dimensions (W x H x D) 512 x 424 x 155mm Noise (Normal) 34dB (Normal), 28dB (Eco) Filter Life (Hours) 20,000 Certification CE Marking, EN61000-3-2, EN61000-3-3, EN55032 (class A), EN55024(EMC directive), EN60950-1 (Low voltage directive), WEEE/RoHS compliant Computer IBM Compatible VGA, SVGA, XGA,WXGA, WXGA+/SXGA/ SXGA+/UXGA (compressed) Video 525i (480i), 525p (480p), 625i (576i), 625p (576p) 1125i (1080i@50/60), 1125p (1080p@50/60) Supplied Accessories Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), AA Batteries x2, Interactive Pen x2, Pen Tip x4, AAA Batteries x4 LP-TW4001 Optional Accessories USB wireless adaptor USB-WL-5G, Wall mount unit: HAS- WM06 (In some buying conditions wall mount is included), Finger Touch Unit (FT-01B), Interactive Pen (I-PEN4) Filter UX43251 Remote Control HL03037 Projector/ Light source Warranty 20,000 hours / 5 years (whichever comes first)

Rear Panel
