Hitachi CPWU9410 DLP Full HD Large Venue Projector
- No Lens
|
|
|
 |
|
FOR CURRENT HITACHI PROJECTORS CLICK HERE
|
| Quick Facts: |
|
|
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 8500 ANSI Lumens
Maximum Contrast: 2,500:1
Weight: 16.6kg
Fan Noise: 36 / 29db (eco)
Warranty: 3 Years
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 4,000hrs
|
FEATURES
- Lens Options
- Horizontal & Vertical Lens Shift
- Horizontal & Vertical Keystone
- Motorised Zoom & Focus
- 2x HDMI Connection
- HD BaseT
- 360° Projection
- Crestron RoomView / AMX Discovery
- Optional Wireless |
CPWU9410
Uncompromising quality, flexibility of installation and extended product life are features on offer with our 9000 Series. Designed to operate consistently and reliably in even the most demanding environments, the 9000 Series is capable of delivering clean, crisp and vibrant images for longer without the need for regular maintenance.
Key Features
- Brightness: 8,500 ANSI Lumens
- Resolution: WUXGA (1920 x 1080)
- Built-in dual colour wheel
- Edge Blending
- 4 Digital Input incl HDBaseT
- 24/7 Operation
- Dual Lamp
Features at a glance
-
 DLP - Digital Light Processing technology is included with the 9000 Series. DLP is especially well suited to the most demanding operating conditions and is ideal for exceptional image readability, durability and effective reduction in the total cost of ownership.
-
 Multi Layer Filter – Four cloth layers and an HAF filter ensure longer periods between required maintenance (up to 15,000 hours) and dust free, quiet operation of the projector.
-
 HD Base T – Signals can be transmitted to the projector with no image degradation using standard LAN (Cat5e/6) cables up to 100m in length.
-
 Low TCO - Significantly extended maintenance intervals resulting from long-life parts reduces the total cost of ownership.
-
 Optional Lenses - Installations are more flexible with a range of optional bayonet lenses. Choose from Fixed Short, Short, Long and Ultra Long throw lenses, designed to suit different requirements.
-
 Wider Lens Shift - With Hitachi's lens shift technology, the image range of movement grows even wider allowing the projector to be placed freely among any number of possible locations.
-
 360° Projection – The projectors can be installed at any angle along the horizontal plane.
-
 Advanced Networking - Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
-
 HDMI - Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
-
 Dual Lamps - Dual lamps not only ensure a brighter, vivid image, but interruption free operation. Lamps are also hot-swappable.
-
 Input Source Naming - Personalise devices and inputs to the projector - for example, re-name a device input to "Tom's Laptop" for easy recognition.
-
 Ultra Quiet - With a low noise level of 29dB in our latest models, the internal fan is one of the quietest in its class. The audience will hear the presenter, not the operating noise of the projector.
-
 Centralised Reporting Function - Using a single PC, create HTML reports for a group of networked projectors to simplify maintenance requirements.
-
 Audio Pass Through - When all you need is sound and not pictures, this convenient feature lets you hear the projector's speakers whilst the rest is on stand-by - helping to preserve lamplife.
-
 Vertical Keystone Correction - Correct misaligned images automatically with vertical keystone correction.
-
 Horizontal Keystone Correction - Correct misaligned images with horizontal keystone correction.
-
 On Screen Display (OSD) - The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.
Edge Blending
The projectors are equipped with the Edge Blending function that
achieves further seamless projection of one image using multiple
projectors. The 9000 series comes with various blending functions that
meet the level users are looking for. |
 |
| |
|
Automatic Blending
Use a camera and quickly
perform high precision blending
processing automatically.
* Requires installation of a specialized
application to your computer. |
 |
|
Instant Blending
Perform blending processing
without the use of any special
equipment. |
 |
|
Geometric Correction (Warping)
Geometric correction is possible from your computer by using the
specialized application. Projection is possible on spherical surfaces
and
surfaces with corners, as well as conventional flat screens. |
 |

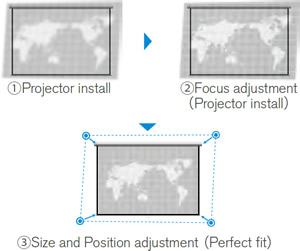

Perfect Fit
Equipped with powered
focus and Perfect fit with
which the position of the
four corners and four sides
of a projected image can
be adjusted. With the
remote controller at hand,
you can adjust focus and
the position of an image. |
 |
|
Specifications
| OPTICAL |
|
|
| Display Device |
CP-WX9210: |
0.65" (16mm) DLP
® x 1 |
| |
CP-WU9410: |
0.67" (17mm) DLP ® x 1 |
| Resolution |
CP-WX9210: |
WXGA (1280 x 800) |
| |
CP-WU9410: |
WUXGA (1920 x 1200) |
| Brightness |
CP-WX9210:
|
8500 Lumens |
| |
CP-WU9410: |
8500 Lumens |
| Contrast ratio |
CP-WX9210/
CP-WU9410: |
2500:1 |
Standard Lens
|
Lens not supplied |
|
| Zoom |
Motorised |
|
| Focus |
Motorised |
|
| Lens shift |
Motorised (V, H) |
|
| Lamp wattage |
370W UHP |
|
| Diagonal display size |
50"~600" (1.27m~15.24 m) |
| Lamp life |
2000 hours (Normal Mode)/4000 hours (Eco Mode)
* |
| |
|
|
| COMPATIBILITY |
|
|
| Computer compatibility |
VGA, SVGA, XGA,
WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA,
WUXGA (compressed), MAC16" |
| Composite/S-Video |
NTSC, PAL,
SECAM, PAL-M, PAL-N, NTSC4.43 |
| Component Video/HDMI |
525i(480i), 525p(480p), 625i(576i),
1125i(1080i@50/60),
750p(720p@50/60), 1125p(1080p@50/60) |
| |
|
|
| FEATURES |
|
|
| Picture adjustments |
Perfect Fit, Memory function (lens shift,
zoom, focus) |
| Advanced features |
Accentualizer technology,
DICOM simulation, Instant stack,
Mechanical shutter, Picture by Picture/Picture in Picture,
Status monitor,
Advanced image processing, HDCR (High Dynamic
Contrast Range), Edge blending,
Warping, iOS Connectivity, Built-in
dual colour wheel, HD Base T, Dual lamp |
| Network |
AMX Device Discovery,
Crestron RoomView® (not accessible through
the wireless adaptor) |
| OSD languages |
33 |
|
| |
|
|
| CONNECTIONS |
|
|
| Digital input |
2 x HDMI
|
|
DVI-D input
|
1 x DVI-D |
|
| HD Base T |
1 x RJ-45 |
|
| Computer input |
1 x 15-pin Mini D-sub, 1 x 5 BNC |
| Monitor output |
1 x 15-pin Mini D-sub |
| Video input |
1 x BNC |
|
| Control |
1 x 9-pin D-sub for RS-232C |
| USB |
1 x USB type A |
|
| Wired network |
1 x RJ-45 |
|
| Wireless network |
IEEE802.11b/g/n (optional USB wireless adaptor is required) |
Wired remote control
(in/out) |
1 x Stereo mini jack/1 x Stereo mini jack |
| |
|
|
| POWER |
|
|
| Power supply |
100~120V/220~240V, auto switching |
| Power consumption/Standby |
990W/<0.5W (AC 220~240V) |
| |
|
|
| PHYSICAL |
|
|
| Dimensions (W x H x D) |
537 x 170 x 438mm (excluding feet and extrusions) |
| Weight |
16.6Kg (without lens) |
|
| Noise level |
36dB (Normal Mode)/ 29dB (Eco Mode) |
| Operating temperature |
0~50°C, 45~50°C: operated in Eco Mode only |
| Air filter |
Hybrid (up to 15,000 hours)
* |
| |
|
|
| OPTIONAL ACCESSORIES |
Lamp DT01581 |
|
| |
Filter UX39621 |
|
| Lenses |
USL-901 (ultra short throw lens)
SL-902 (short throw lens )
SD-903W (standard lens for CP-WX9210/CP-WU9410)
ML-904 (middle throw lens)
LL-905 (long throw lens)
UL-906 (ultra long throw lens) |
|
|
|
|
|
 |
