Hitachi CPTW2505 LCD HD Ultra Short Throw Projector

CPTW3005 Ultra Short throw Projector

The innovative interactive CP-TW2505 features an ultra short throw design and integrates Hitachi’s powerful software to deliver a complete interactive experience on any flat surface. With a rich feature set that meets the specific interactive needs of K-12, higher education, and corporate users, the CP-TW2505 is both easy to install and easy to calibrate. It provides vibrant image quality with cost-effective operation and produces large images in small spaces. New generation interactive features include interactive pen, multiple pen capability, auto-calibration, PC-less drawing, and multi-display interactive. Additionally, a suite of
advanced features normally found only on the higher end models includes High Dynamic Contrast Range (HDCR), 2 HDMI ports, and Hitachi’s original technology Accentualizer that allows the projected image to appear more real by enhancing sharpness, gloss and shade. As with all Hitachi projectors, you can expect vibrant image quality, cost-efficient operation, and long-lasting reliability. Plus, Hitachi’s Intelligent Eco and Saver Modes with ImageCare combines optimal picture performance with energy-savings for a lower total cost of ownership. For added peace of mind, Hitachi’s CP-TW2505 is also backed by a generous 3 year warranty and our world-class service and support programs.

Key Features

• WXGA 1280 x 800 resolution

• 2,700 ANSI lumens white/color output

• 10000:1 contrast ratio

• HDMI 2 inputs

• Powered Focus / Perfect Fit

• Interactive pens

• Auto-calibration

• Multi-pen capability

• PC-less drawing

• Multi-display interactive

• HDCR/Accentualizer/ Image Optimizer
• StarBoard Interactive Software in-cluded with no yearly subscription fee!

• Compatible with other top interactive software


Starboard Interactive Presentation Software Hitachi’s world-class interactive StarBoard Software (SBS) is the next standard in collaboration, information sharing and dynamic presentation software. With a customizable interface and toolbar, Starboard streamlines your workflow and improves production. While you would expect to pay hundreds of dollars extra for similar interactive software from the competition, Hitachi bundles it as a standard feature with each interactive projector.

Accentualizer
Hitachi original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.

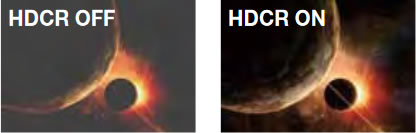

HDCR (High Dynamic Contrast Range) When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. This results in clear images even in bright rooms.

Cloning Function Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ settings such as gamma and keystone via USB memory, it saves countless hours in setup and installation.

ImageCare Technology ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio and lengthening lamp life. The result is a lower total cost of ownership and decreased maintenance cost.

Intelligent Eco and Saver Modes Automatically changes the brightness of the lamp according to the brightness level of the screen. Also, automatically changes the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features give optimal picture performance with maximum energy savings.

Perfect Fit 2 Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.

Projector Quick Connection App For Mobile Devices Our iOS application offers projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter.

Tabletop Presentation Make any tabletop a projection screen using the optional tabletop stand. Ideal for a small group environment or in a room with limited space.

STANDARD FEATURES

Input Source Naming Users can name input sources in simple language instead of factory default names.

Microphone Input A microphone can be used via the jack located on the input panel. Allows for more dynamic presentations even in standby mode.

Network Control, Maintenance and Security Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.

PC-Less Presentation By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally there is also a slideshow and video function.

PIN Lock / MyScreen / MyText PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.

PJMessenger PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.

Present Content via LAN Hitachi’s suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.

Template Function Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates to choose from.

New generation interactive projector for education and corporate environments.
The CP-TW3005 ultra short throw interactive LCD projector from Hitachi is specifically designed to enhance the visual experience — from the audience to presenters. Whether in a classroom or executive boardroom, the CP-TW3005 is the perfect solution.

With 2,700 ANSI lumens brightness and WXGA
The CP-TW2505 ultra short throw interactive LCD projector from Hitachi is specifically designed to enhance the visual experience — from the audience to presenters. Whether in a classroom or executive boardroom, the CP-TW2505 is the perfect solution. With 2,700 ANSI lumens brightness and WXGA 1280 x 800 resolution, the CP-TW2505 will captivate the full attention of any audience by delivering your message with clarity and impact. Vivid colors. Bold graphics. Crisp text. It also features a high contrast ratio, long lamp life, cloning function enabling you to copy settings data from one projector to others of the same model, and is wireless presentation ready. Plus, embedded networking gives you the ability to manage and control multiple projectors over your LAN (scheduling of events, centralized reporting, image transfer and email alerts). Best of all, the high performance CP-TW2505 is exceptionally reliable and offers a very low cost of ownership.

Specifications

Display Projection Technology 3LCD, 3 chip technology Resolution WXGA 1280 x 800 White Light Output 2,700 ANSI lumens Color Light Output 2,700 ANSI lumens Colors 16.7 million colors Aspect RatioNative 16:10 / 4:3 and 16:9 compatible Contrast Ratio 10000 : 1 (using active IRIS) Throw Ratio(distance : width) 0.2 : 1 from edge of projector to screen 0.3 : 1 from mirror cover to screen Focus Distance 16" - 27" from mirror cover to screen Display Size60" - 100" Lens & Operation Lens F = 1.8, f = 4.21 mm Lamp Wattage 250W Approximately 5,000 hours (standard mode) 10,000 hours (Eco-2 mode) Expected Filter Life** Approximately 4,000 hours Speaker Output 16W Keystone H and V: +/- 5º Compatability Computer VGA, SVGA, XGA, WXGA, WXGA+/SXGA/WSXGA+/UXGA (compressed), MAC 16" H-Sync 15 kHz - 106 kHz V-Sync 50 Hz - 120 Hz Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM Component Video 480i, 480p, 576i, 720p, 1080i, 1080p HDMI 480i, 480p, 576i, 720p, 1080i, 1080p, computer signal TMDS clock 27 MHz - 150 MHz USB Connection*** USB 2.0 Connectors Digital Input HDMI x 2 (HDCP compliant) Computer Input 1 15-pin mini D-sub x 1 Computer Input 2 15-pin mini D-sub x 1 Computer Monitor Output 15-pin mini D-sub x 1 (shared with computer in 2) Video Input S-Video N/A Composite VideoRCA jack x 1 Component Video 15-pin D-sub x 2 (shared with computer in 1/2) Audio Input 3.5 mm stereo mini jack x 1, RCA jack (L/R) x 1, MIC-in 3.5 mm mini jack x 1 Audio Output 3.5 mm stereo mini jack x 1 Network LAN Wired RJ-45 port (10 base-T / 100 base-TX) USB Type A x 2 (PC-less presentation, wireless adapter) Type B x 1 (USB display or mouse control) Control Terminals 9-pin D-sub x 1 (RS-232 control) Ratings & Warranty Power Supply AC100-120V / AC220-240V, 50/60Hz Power Consumption 360W Operating Temperature 0ºC - 40ºC Dimensions (W x D x H) 376 x 361 x 137mm (excluding protruding parts) Weight Approximately 4.49 kg Approvals RCM class A (AU/ NZ), UL New Zealand (AU/ NZ) Warranty 3 year limited parts and labor

Rear Panel
