Hitachi CPEW3051WN LCD Widescreen Multipurpose Projector

Hitachi CP-EW3051WN business projector

The Hitachi CPEW3052WN offers a great combination of a HD resolution and a massive selection of inputs. It ocmes with two HDMI, two VGA, a composite connection as well as wired network, optional wireless, USB to laptop connection and a USB stick reader for images and video. With an ample 3 year warranty and a massive lamp life of up to 12,500 it is a real office workhorse.

From the classroom to the conference room, Hitachi’s CP-EW3051WN LCD projector combines superior image clarity, high quality value, and long-life reliability. Bright, vivid colours with razor-sharp text and bold graphics will truly enhance any lesson or meeting and make it more memorable. For greater installation convenience, the CPEW3051WN has a cloning function which enables you to copy configuration settings from one projector to others of the same model via USB memory. The CPEW3051WN also includes our iOS application Projector Quick Connection App which offers simple control options including sending photo and document files and web site contents to the projector. Hitachi’s ImageCare combines optimal picture performance with maximum energy savings for a lower total cost of ownership.

Key Features

• 3,200 ANSI Lumens

• WXGA Resolution

• 20,000:1 Contrast Ratio

• Up to 12,500hrs lamp life (ECO Mode)

• 3LCD

• Wireless Network Option

• 16 Watt Internal Speakers

• Saver/Eco Mode with Image Care Technology

• HDMI x 2 Input

• Supports MHL

• 3 Year Warranty


Accentualizer: Hitachi original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colours of projected images are the actual colours of the objects they represent.

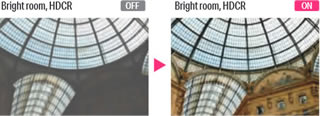

HDCR2 (High Dynamic Contrast Range): When average projectors are used in bright rooms, the darker colours of an image deteriorate, and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The recent enhancement to HDCR2 achieves not only auto tone enhancement but also auto colour enhancement. This results in clear and vivid images even in bright rooms.

Cloning Function: Copy configuration settings from one projector to others of the same model via USB memory. Cloning can save almost all PJ settings such as gamma and keystone via USB memory.

ImageCare Technology: ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio and lengthening lamp life. The result is a lower total cost of ownership and decreased maintenance cost.

Image Optimizer: The Image Optimizer automatically adjusts HDCR2 and Accentualizer to improve visibility as lamp brightness dims over time.

Saver Modes: Automatically changes the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, this feature gives optimal picture performance with maximum energy savings.

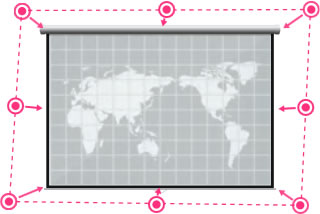

Perfect Fit 2: Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.

Projector Quick Connection App for Mobile Devices: Our iOS application offers full projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL5G wireless adapter.

Input Source Naming: Users can rename input sources in more descriptive terms instead of the factory default names.

Network Control, Maintenance and Security: Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.

PC-Less Presentation: By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. There is also a slideshow function. This feature also supports the following file types: JPG, PNG, BMP, GIF, AVI, and MOV — frame rate is under 12fps 640 x 480.

PIN Lock / MyScreen / MyText: PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.

PJMessenger: PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.

Present Content via LAN: Hitachi’s suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.

Serial Number and Media Access Control Label: A label is affixed to side of projector to more easily access and read the model name, serial number and MAC address while mounted in ceiling use. This is a convenience for installers, end users and auditors for instant accessibility.

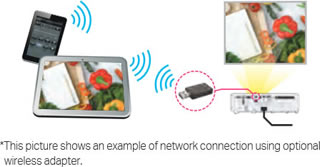

Wireless Presentation Compatible: Connect the projector to a computer or your network using the optional USB wireless adapter (part number USBWL5G). The adapter supports IEEE802.11 a/b/g/n/ac.

Specifications

Display Projection Technology 3LCD, 3 chip technology Resolution WXGA - 1280 x 800 Light Output 3,200 ANSI lumens Colors 16.7 million colors Aspect Ratio Native 16:10 and 4:3 / 16:9 compatible Contrast Ratio 20,000 : 1 (using active IRIS) Throw Ratio (distance : width) 1.5 - 1.8 : 1 Display Size 30" - 300" Lamp Lamp Wattage 230W Expected Lamp Life** Approximately 6,000 hours (standard mode) 12,500 hours (Eco-2 mode) Speaker Output 16W Keystone H and V: +/- 30º Compatibility Computer VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC 16" H-Sync 15 kHz - 106 kHz V-Sync 56 Hz - 120 Hz Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM Component Video 480i, 480p, 576i, 720p, 1080i, 1080p HDMI 480i, 480p, 576i, 720p, 1080i, 1080p, Computer signal TMDS Clock 27 MHz - 150 MHz Connectors Digital Input HDMI x 2 (HDCP compliant) Computer Input 1 15-pin mini D-sub x 1 Computer Input 2 15-pin mini D-sub x 1 (shared with Monitor out) Computer Monitor Output 15-pin mini D-sub x 1 (shared with Computer in 2) Composite Video RCA jack x 1 Component Video 15-pin mini D-sub x2 (shared with computer in 1, in 2/Monitor out) Audio Input 3.5 mm stereo mini jack x 2, RCA jack (L/R) x 1, MIC-in 3.5 mm mini jack x 1 Audio Output 3.5mm stereo mini jack x 1 Network LAN Wired RJ-45 port Network LAN Wireless USB-A, IEEE802.11 b/g/n - optional wireless adapter required USB Type A x 2 (PC-less presentation, wireless adapter) Control Terminals 9-pin D-sub x 1 (RS-232 control) Ratings & Warranty Power Supply AC100-120V / AC220-240V, 50/60Hz Power Consumption 320W Operating Temperature 5ºC - 35ºC Dimensions (W x D x H) 349 × 88 × 264mm (excluding protruding parts) Weight Approximately 3.5Kg
