Majestic Large-screen Reproduction Regardless of the Image Source
Strikingly clear images increase the excitement.
A high 1500lm brightness for clear image reproduction
The aperture ratio of the HC6800 is increased 20% compared to conventional
LCD panels, improving the light transmittance ratio. This works to make
the reproduction of even clearer, more vivid images possible by concealing
the grid between pixels.
Even in the relative brightness of a living room with the curtains closed,
high-definition images played back from terrestrial digital broadcasts,
Blu-ray media or other sources can be enjoyed to the fullest.
High-quality reproduction of colours true to the image source.

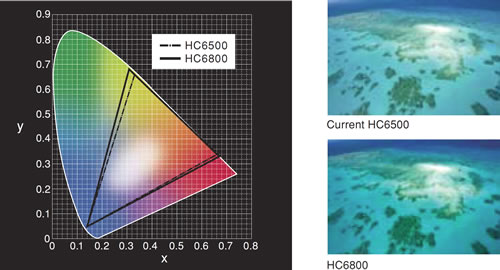

Wide-range cinema colour filter for precise reproduction of colours
Even when using Cinema mode (D65), a bright 910lm is maintained.
An expansive colour reproduction range that enables the adjustment of
colour balance spanning the green and cyan spectrums enables image
colours to be reproduced with greater depth and brightness. Even
improvements in DVD content will be noticed.
Advanced image processing for greater picture quality
“Reon-VX IC – A product of IDT, Inc. (Silicon Optix)
The ideal device for upscaling quality high-definition and
DVD images to full HD 1,920 x 1,080 pixel resolution.
Thanks to a 10-bit calculation at the core of the
high-precision I/P conversion function, signals from every
type of source, from terrestrial and satellite digital
broadcasts to video-recorded images are progressively
played back with higher picture quality.
Enjoy the true expression of movie images

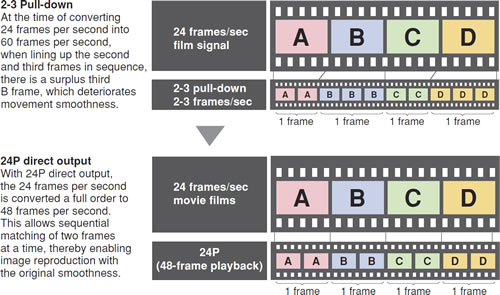

Blu-ray 24P direct output compatible
Capable of handling an output of 48P - twice the speed of cinema film
(24 frames per second). This precise timing ensures true-to-life reproduction
with original, smooth movement.
Diverse Adjustment Functions for Images More Beautiful Than Ever
Sharp, dynamic images

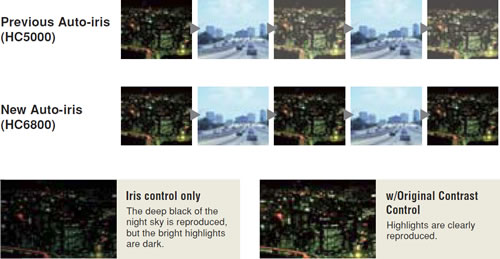

Diamond Black Iris - Unique to Mitsubishi Electric
This artificial iris automatically controls the projected light quantity and analyses
brightness signals in units of 1/60 per second. When scenes change repeatedly
between light and dark, blacks can be toned down using instantaneous
tracking. Moreover, the HC6800 is equipped with our “Original Contrast Control”
technology, allowing the peak expression of white while simultaneously
maintaining black gradation performance.
For the enjoyment of full high-definition

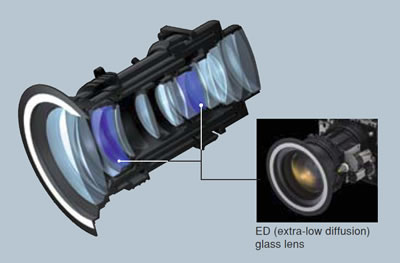

High-performance extra-low dispersion (ED) lens
The 17-piece, 14-cluster ED lens boasts higher performance than the standard
regular glass lens. Images retain their sharpness right to the edges of the
screen
Performance Enhancing Features take the Cinema Experience to Even Higher Levels
Quiet sound design allows movies to be enjoyed to the fullest
The cooling duct design has been changed and a large fan with small-sized
motor installed for an extremely quiet 20dBA operation. With the noise of the
cooling fan silenced, the movies audio track can be fully enjoyed.
“Deep Colour” compatible for increased image depth

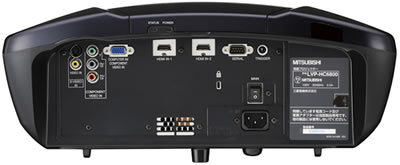

The HC6800 is equipped with two HDMI Ver1.3
input ports. In addition, 8bit, 10 and 12bit transmission
are also possible. Compatible with Deep
Colour, rich gradation and high contrast images
have been realised.
High flexibility for room installation
Equipped with an 1.6x ultrashort-throw lens, projection from as close as
3.1~5m is possible when used with a 100-inch screen (16:9), making a room
floor space of approximately 10m2 more than sufficient. Additionally,
the motorised shift lens can adjust the image both horizontally and vertically,
providing greater freedom for projector set-up.
Appreciate the grandeur of wide cinema scope
A fast-growing trend in the world of home theatre is viewing in cinema scope.
When equipped with an anamorphic lens (sold separately), this convenient
function enables easy switching between “Normal” and “Cinema Scope”
viewing modes.
|
