Epson EMP-410W Projector at Just Projectors!

Epson EMP-410W TFT ULTRA SHORT THROW WIDESCREEN DATA PROJECTOR

DISCONTINUED

FOR CURRENT EPSON PROJECTORS CLICK HERE

Discover the key to delivering high performance presentations, while staying with in budget. Equipped with LAN connectivity, dual PC inputs, AV out and a 10W speaker the EMP–410W is the ideal solution for business and education.

Project without any shadows

The EMP-410W adopts a newly developed ultra large calibre, high precision lens, delivering 60" diagonal 16:10 images from a distance of only 0.65m, the Epson EMP-410W virtually eliminates the shadow effect caused by people or objects in front of the screen.

It projects clear, sharp images regardless of whether you are using a 4:3, 16:9 or 16:10 aspect ratio, Perfect for use with DVDs and laptops (projecting a widescreen WXGA image), screens and interactive whiteboards.

Make an impact with wide and powerful images

Displaying an original widescreen picture, the Epson EMP-410W automatically detect and resisesg of any aspect ratio (4:3/16:10/16:9). More horizontal space allows you to use a larger surface to project wide spreadsheets, presentations, corporate videos & interactive whiteborad space.

Easy maintenance with network monitoring and control

The Epson EMP Monitor™ software enables you to configure and operate the projector remotely over your network. You can even set an e–mail alert for the inside temperature of your projector or monitor the lamp status in order to prevent any possible problems disrupting your presentations.

Multi Media and Audio capability

The Epson EMP-410W accepts input data from 2 PCs, allowing you to conveniently switch between them. It's built in 10W speaker offers excellent audio support. In addition, the rear ports allow for a range of connectivity to other sources, such as DVD players and digital cameras.

Direct Power On/Off

It is possible to connect the projector to a rooms main power source so that you can turn on directly by hitting the main power switch.

Allows the EMP-410W to start–up without pressing the power button.
This function is extremely convenient for projectors located in areas such as classrooms, shops and large events.

Simple Lamp Replacement

E–TORL lamp with a longer brightness mode ensures extended use and low cost usability.

V13H010L42 lamp can be replaced easily by simply accessing it from the hatch on the top of the EMP-410W
The hatch on the top of the projector is removed by merely loosening 1 screw.

Environmentally friendly

The Epson EMP-410W is designed and produced in compliance with Epson's stringent environmental standards. It allows you to display on a screen of up to 110 inches and consumes much less power than large flat–panel televisions.

That means you can save both energy and costs. This projector also boasts improved lamp life, a sleep timer function, paint–free design and recyclable packaging.

Minimise power consumption – When not in use thanks to timer functions and rapid power on/off.
Reduce pollution – The packaging is 100% recyclable and our projectors are manufactured without any paint.
E–TORL lamp Delivering brilliant light – all the time, every time– Save money and energy – E–TORL low–wattage lamps last up to 4,000 hours.
One of the crucial factors offered by EMP-410W is the capability of providing up to 1800 ANSI lumens via incredibly efficient E–TORL (Epson Twin Optimised Reflection Lamp) technology. Designed to minimise light leakage – a primary cause of lamp inefficiency – and minimise light diffraction.

Security

User Logo Protect
Power on Protect
Security cable
Key Lock control panel

Help function

In the event of a problem, simply press the Help button and the Help function guides you through the solution step–by–step.
The Help function not only guides you through problem solving steps, but also offers you choices at every step to adjust specific functions or customise solutions to problems.

Specifications

SPECIFICATION OF MAIN PARTS
PRODUCT TYPE	Entry Level Multimedia Projectors
PRODUCT NAME	EMP-410W
PRODUCT CODE	V11H281053
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Front / Rear / Ceiling Mount
LCD	Size	0.56 inches with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	1,024,000 pixels (1280 x 800) x 3
	Native resolution	WXGA
	Aspect ratio	16:10 (which covers 16:9 and 4:3)
	Pixel arrangement	Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Digital zoom / Manual focus
	F-number	1.8
	Focal length	6.48mm
	Zoom ratio	1.0 - 1.35 (Digital)
LAMP	Type	170W UHE E-TORL
	Life	4000Hr ( Low Brightness )# 3000Hr ( High Brightness )#
OPTICAL SYSTEM	Dichroic Mirror Separation & Prism combine method

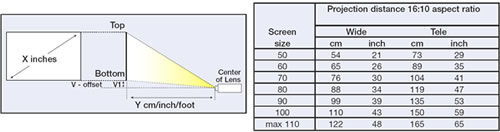

SCREEN SIZE (PROJECTED DISTANCE)	50 to 110 inch [0.54 to 1.22 m]
BRIGHTNESS
	High Brightness Mode	2000 ANSI lumens (Colour mode: Game)
CONTRAST	500:1
BRIGHTNESS UNIFORMITY	85% (Typ.)
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
VIDEO QUALITY	Simple Interlace - Progressive conversion
SOUND OUTPUT	10W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK	13.5MHz to 162MHz up to UXGA 60Hz
HORIZONTAL	15KHz to 92KHz
VERTICAL	50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal Colour Temperature / Tracking / Position / Sharpness / Volume etc... /
FOOT ADJUSTER	Front-centre
TILT ANGLE	0 to 13 degrees
KEYSTONE CORRECTION	Vertical: +/- 15 degrees
PASSWORD PROTECTED FUNCTION (security function)	Implemented
ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1280 x 800 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	D-sub 15pin x 1 Blue moulding
	Audio	Stereo mini jack x 2
OUTPUT SIGNAL	Video	Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync.	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 (Black moulding)
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 560 line PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin Blue molding
	Audio	RCA x 1 (White/Red )
CONTROL I/O
SERIAL I/O	Terminal	D Sub 9 pin x 1
	Signal	RS-232C
	Network Interface	RJ45 x 1
EASY MP
FUNCTION	ESC/VP.net
	E-mail notification
	SNMP
	Web control
	PJ-Link
	AMX Device Discovery compatible
SOFTWARE	EMP Monitor (for Windows)
OPERATING TEMPERATURE	5°C to 35°C (41°F to 95°F) > (20%-80% Humidity )
COOL-DOWN PERIOD	"Instant Off"
START-UP PERIOD	Approx. 5 seconds (warm up 30 seconds)
DIRECT POWER ON	Yes
DIRECT POWER OFF	Yes
POWER SUPPLY VOLTAGE	100-240V AC±10% 50/60Hz
POWER CONSUMPTION	100-240VAC 2.7-1.1A 50/60Hz Lamp 251W/236W (Lamp on) 4.2W/5.5W (standby, network off)
EXHAUST DIRECTION	Side
DIMENSION
EXCLUDE FEET	258(D) x 327(W) x 95(H) mm
MAXIMUM DIMENSION	272(D) x 327(W) x 157(H) mm
WEIGHT	Approx. 3.6kg
FAN NOISE
HIGH BRIGHTNESS MODE	35dB
LOW BRIGHTNESS MODE	28dB
WARRANTY
STANDARD WARRANTY	3 years* 2 years, 12 Months or 750 hours on Lamp

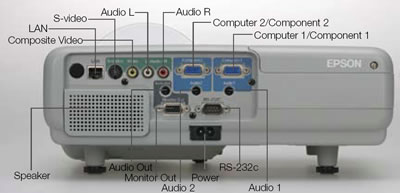

Rear Panel
