| Quick Facts: |
                            |


                              | Epson EH-TW8200 Throw Distance Chart (Examples for common Sizes) |


                              | Image Size  |
                              Installation Distance
                                (Approx. To Lens) |


                              | 92" (16:9) 2030x1140mm  |
                              From 2.8m to 5.8m |


                              | 100" (16:9) 2130x1200mm  |
                              From 3.0m to 6.3m |


                              | 110" (16:9) 2435x1370mm |
                              From 3.3m to 7.0m |


                              | 120" (16:9) 2580x1450mm |
                              From 3.6m to 7.6m |

                            |


                           SPECIFICATIONS
                            Native Resolution: WUXGA 1920 x 1080 16:9
                            Brightness: 2400 ANSI Lumens
                            Maximum Contrast: 600,000:1
                            Weight: 8.4kg
                            Fan Noise:  22db
                            Warranty: 2 Years (+1 Year $135)
                            Lamp Warranty: 12 months  / 750 hours
                            Lamp Life Up To: 5,000hrs   |
                          FEATURES
                            - 2.0x Zoom
                              -  2x HDMI Connection
                              - Horizontal & Vertical Lens Shift
                              - Frame Interpolation

                              - 2D to 3D Conversion

                            |





                      Epson EH-TW8200 Overview
                        Featuring Full HD 2D and 3D 1080p performance and an astounding contrast ratio of up to 600,000:1, the Epson TW8200 makes it easier than ever to entertain family and friends with brilliant colour and exquisite detail. Delivering 2,400 lumens of colour/white light brightness, using Epson’s 3LCD, 3-chip technology, the TW8200 projects brilliant images with true-to-life colour. And, with the widest lens shift in its class, the Epson TW8200 offers fast, easy and flexible installation.
                      KEY FEATURES:
                       Exquisite Detail — A contrast ratio of up to 600,000:1 for the most discerning AV enthusiasts
                        A True Cinematic Experience — 2D and 3D, Full HD 1080p technology
                        Great Picture Uniformity and Positioning Flexibility — State-of-the-art Fujinon® lens with a 2.1x zoom ratio
                        Widest Horizontal Lens Shift in its Class — Vertical and horizontal lens shift for flexible, easy setup
                        Ready for Exciting 3D — 2 pairs of rechargeable RF 3D glasses included
                      C2Fine™ technology delivers a higher contrast ratio for exquisite detail
                        C2Fine offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, and, when combined with the auto iris, this technology allows for contrast ratios up to 600,000:1.

                      Super Resolution
                        Makes DVDs and standard definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution. It also sharpens blurry images that have been enlarged by a general upscaling process.

                      Frame Interpolation
Film is encoded on Blu-ray at 24 frames per second. FineFrame   deconstructs and reconstructs these sources for a 1080p frame rate   output of up to 120Hz, virtually eliminating flicker and frame-to-frame   judder. The 4:4 pulldown function also makes corrections for improperly   encoded sources, and features a reverse 2:3 pulldown detection and   correction function.

                      Bright 3D Drive Technology for 3D Cinematic Adventures
                        Enjoy thrilling 3D adventures right in the comfort of your living room. Featuring Bright 3D Drive technology, the TW8200 puts you right in the middle of the action. Epson’s drive system minimizes the blackout time of 3D glasses and provides greater brightness when viewing 3D content.
                      2D-to-3D Conversion
                        Transform any 2D movie, from the latest science-fiction adventure to your favourite classic, to spectacular 3D. Or, watch the big game in exciting 3D. The TW8200 makes it easier than ever with convenient 2D-to-3D conversion. With just the touch of a button, you can watch your favourite shows and movies in eye-popping 3D. There are no special discs required. And, the possibilities are endless.



                            |
                          Two Rechargeable RF 3D Glasses Included
Enjoy 3D adventures from any seat in the house. Line of sight is not required with the included RF 3D glasses. Rechargeable for up to 40 hours of battery life, these innovative glasses have a 3-minute quick-charge feature for up to 3 hours of battery life. |


                      Installation Flexibility
A powerful 2.0x Optical zoom teamed with vertical and horizontal keystone correction makes projector placement a breeze. The TW8200 automatically corrects the image vertically. And for horizontal image correction just move the easy-slide control bar to make the necessary adjustments.






                      Advanced Auto Iris Technology (2D and 3D)
                        Epson Auto Iris technology adjusts the aperture to provide optimum contrast and brightness for each scene.
                      Split Screen Feature
                        Project two images (video or still) side-by-side from two different sources simultaneously. Choose from three layout options. You can swap the images as well as choose the source for audio.






                          5000 Hours  Lamp Life
The Epson EH-TW8200 now offers a 5000 hour lamp life ensuring a low cost of ownership. Additionally the replacement lamp price is only $299rrp Unlike many projectors which can be almost double that price.   |

  |

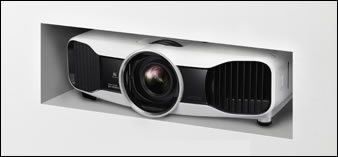

                          Front Exhaust
                            A front exhaust system ensures easy installation even in a wall cavity. |
                            |





                          Automatic Lens Cover
                            Closed automatically when power off the unit to protect the lens from scratches and dirt. |
                            |


                      Connectivity Panel







                                               |



                        Specifications





                                  | PRODUCT NAME |
                                  Epson EH-TW8200 |


                                  | PRODUCT CODE |
                                   V11H527053 |


                                  | WHAT'S IN THE BOX |
                                    |


                                  |   |
                                  EH-TW8200 Projector, Power Cable, Remote Control + Batteries,         3D Glasses + USB cable for charging x 2, 3D Glasses Charger, HDMI Cable         Clamp x 2, User's Manual |


                                  | TECHNOLOGY |
                                    |


                                  | Projection System |
                                  RGB liquid crystal shutter projection system |


                                  | LCD Panel |
                                  0.74-inch wide panel with MLA (D9, C2 Fine, 12 bit, OD) |


                                  | OPTICAL |
                                    |


                                  | Zoom |
                                  1-2.1 (Optical Zoom) |


                                  | Screen Size |
                                  30" to 300" [0.87 to 9.03 m] (Zoom: Wide)
                                    30" to 300" [1.88 to 19.15 m] (Zoom: Tele)  |


                                  | Lens Shift |
                                  Vertical: -96.3% to +96.3% (H Center, Manual)
                                    Horizontal: -47.1% to +47.1% (V Center, Manual) |


                                  | Keystone Correction  |
                                  Vertical: -30 to +30 degrees |


                                  | Projection Distance |
                                  100" screen 2.98 - 6.36 m |


                                  | Throw Ratio |
                                  1.34 (Zoom: Wide), 2.87 (Zoom: Tele) |


                                  | Projection Lens F Number |
                                  2.0 - 3.17 |


                                  | Projection Lens Focal Length |
                                  22.5 mm - 47.2 mm |


                                  | Focus Method |
                                  Manual Focus |


                                  | IMAGE |
                                    |


                                  | Colour Light Output |
                                  2,400 Lumens |


                                  | White Light Output |
                                  2,400 Lumens  |


                                  | Resolution |
                                  1080p |


                                  | Native Aspect Ratio |
                                  16:9 |


                                  | Contrast Ratio |
                                  600,000:1 |


                                  | Lamp Type |
                                  230 W UHE (E-TORL) |


                                  | Colour Video Processing |
                                  Full 10bit (Partial 12bit) |


                                  | CONNECTIVITY |
                                    |


                                  | Input: Video  |
                                  1 x RCA (Yellow), 1 x Component Video |


                                  | Input: Computer |
                                  1 x D-sub 15-pin (RGB) |


                                  | Input: Digital |
                                  2 x HDMI |


                                  | Input: Control |
                                   1 x RS232c, 1 x Trigger Out |


                                  | ADVANCED FEATURES |
                                   |


                                  | WirelessHD |
                                  No |


                                  | Super Resolution  |
                                  Yes |


                                  | 3D Formats |
                                  Top-and-Bottom, Side-by-Side, Frame Packaging |


                                  | 2D to 3D Conversion  |
                                  Yes |


                                  | THX Certification  |
                                  No |


                                  | ISF Certification  |
                                  No |


                                  | Split Screen |
                                  Yes |


                                  | Direct Power On |
                                  Yes  |


                                  | Security |

                                    Kensington®-style lock provision |


                                  | Colour Modes |
                                  Dynamic, Living room, Natural, Cinema, 3D Dynamic, 3D Cinema  |


                                  | GENERAL |
                                   |


                                  | Dimensions D x W x H |
                                  395 x 466 x 140 mm  |


                                  | Weight |
                                  8.4kg |


                                  | Lamp Warranty |
                                  12 months or 750 hours*  |


                                  | Projector Warranty |
                                  2 Years |


                                  | Power Consumption: Lamp on |
                                  340W |


                                  | Power Consumption: Standby |
                                  0.39W  |


                                  | Noise Level |
                                  Eco: 22dB  |







                                  Supplied Accessories

  |


                                  Remote  |


                                   |



                                 |

                          |
