Epson EH-TW4500 LCD Full High Definition Home Theatre Projector



EH-TW4500









DISCONTINUED
FOR CURRENT EPSON PROJECTORS CLICK HERE


AKA Epson Home Cinema 8500 UB 1080p

Epson is pleased to introduce the Epson EH-TW4500 Home Theatre Projector. Featuring a contrast ratio of 200,000:1, improved Deep Black Technology and HQV Processor the EH-TW4500 sets a new benchmark in High Definition home cinema. The EH-TW4500 delivers superb quality through cutting-edge technology. Exactly what you expect from the world’s number one projector manufacturer – Epson.

KEY FEATURES:

  • Deep, dark blacks, crystal clear detail – UltraBlack technology with an unprecedented 200,000:1 contrast ratio
  • Rich, vibrant colour – latest generation D7 3-chip optical engine with 3LCD C2Fine® technology
  • Superior video quality – Silicon Optix HQV Reon-VX processor minimises noise and jaggies generating a more natural looking image
  • Refined Frame Interpolation – Smooth image movement, even in high speed scenes

The Epson EH-TW4500 sets a new benchmark in 1080p High Definition home theatre projection. The EH-TW4500 is targeted to satisfy the most discerning of home theatre enthusiasts seeking best-in-class contrast ratio and superb picture quality. The EH-TW4500 can be used on a table top, or as the centrepiece of a full home theatre installation.

Enjoy the Home Theatre Experience in a way you never thought possible
With unrivalled Silicon Optix HQV Reon-VX video processing and a best-in-class 200,000:1 contrast ration, Epson’s flagship EH-TW4500 projector offers the most discerning home theatre enthusiast a stunning visual experience. Whether you’re watching movies or sports, this 1080p projector ensures amazing image quality with the latest generation Epson D7 chip, UltraBlackTM technology and a bright 1,600 lumens of light output.
With innovative colour adjustment features and a state-of-the-art Fujinon lens, a brand trusted by renowned Hollywood filmmakers, the EH-TW4500 delivers superb video performance. And, with Epson’s 3LCD, 3-chip optical engine, it offers such incredible quality, you’re sure to achieve a true cinematic experience. The EH-TW4500 brings big-screen entertainment home in a whole new way.

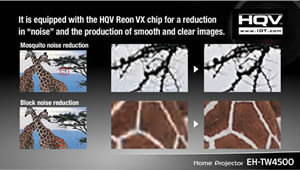

Silicon Optix HQV Reon-VX processor
The Silicon Optix HQV processor is the reference standard in deinterlacing and scaling. With standard definition (SD) and high definition (HD) interlaced content (DVDs, TV shows, 1080i HDTV broadcasts), the HQV Reon-VX processor reduces jagged edges on low angle solid lines and flat edges. This superior video processor minimizes MPEG compression-related artifacts, such as mosquito noise and restores the image to a more natural picture.
3LCD technology – for amazing quality and colour
3LCD technology delivers amazing colour and detail. Whether it’s a blockbuster movie or live sporting event, 3LCD technology takes video performance to the next level. Delivering legendary image quality, this innovative technology always ensures a thrilling cinematic experience.

OptiCinemaTM lens system
The OptiCinema lens system is a precision, high quality optical grade system. Co-developed with Fujinon, a top supplier of precision camera optics to the world’s leading HD camera makers, the system offers:

  • Maximum picture uniformity
  • Clarity across the entire screen
  • Freedom from colour fringing

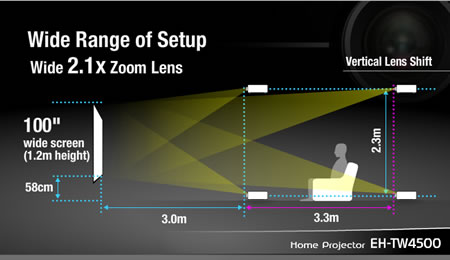

  • Precision focus with 2.1x zoom
  • Maximum installation flexibility with 96% vertical / 47% horizontal lens shift

UltraBlack technology and Vertical Alignment
Achieve incredibly deep blacks with an astounding 200,000:1 contrast ratio, UltraBlack technology and Epson’s exclusive Vertical Alignment (VA) LCD technology. With VA LCD technology, opaque (black) is the natural state. Signal voltage is applied to increase translucence (transmittance) as needed. This is a fundamental design and performance advantage – a complete rethinking of LCD chip design

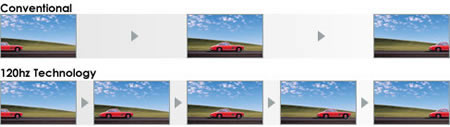

FineFrame interpolation processing technology
Film is encoded on Blu-ray at 24 frames per second. FineFrame deconstructs and reconstructs these sources for a 1080p frame rate output of up to 120Hz, virtually eliminating flicker and frame-to-frame judder. The 4:4 pulldown function also makes corrections for improperly encoded sources, and features a reverse 2:3 pulldown detection and correction function.

Energy-efficient E-TORL lamp
The innovative E-TORL lamp, exclusively from Epson, is a reliable performer that delivers more lumens per watt and lasts up to 4,000 hours. Switch the projector to High Brightness Mode and the E-TORL lamp still produces up to 4,000 hours of light performance. The special E-TORL design minimizes both light diffraction and light leakage, providing the ultimate in lamp longevity.

Optional cable cover
The optional attractive colour coded cable cover, continuing the clean lines of the projector and hiding away untidy cabling.






Specifications
PRODUCT TYPE
Home Theatre Projectors
PRODUCT NAME
EH-TW4500
PRODUCT CODE
V11H337353
PROJECTION SYSTEM
RGB Liquid Crystal Display
PROJECTION METHOD
Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD
Size 0.74 inches wide D7 panel with MLA
Driving method Poly-Silicon TFT Active Matrix
Native resolution 1080P Full HD (1920 x 1080)
Pixel number 2073600 pixels (1920 x 1080 pixels) x 3
Aspect ratio 16:9
Pixel arrangement Stripe
Refresh Rate 100Hz or 120Hz (based on input signal)
PROJECTION LENS
Type manual: zoom / focus
F-number 2.0 - 3.17
Focus length 22.5 - 47.2mm
Zoom ratio 1:2.1
LAMP
Type 200 W UHE E-TORL Lamp
SCREEN SIZE (PROJECTED DISTANCE)
30 to 300 inch (0.87m to 9.03m) (Wide)
30 to 300 inch (1.88m to 19.15m) (Tele)
LENS SHIFT RANGE
Vertical: 96.3% max. (upward & downwards)
Horizontal: 47.1% max. (Left and Right)
BRIGHTNESS
White Light Output 1600 lumens
Colour Light Output* 1600 lumens
High Brightness Mode Colour Mode ( Dynamic, Zoom: Wide, Lens shift: V5.5 / H Centre )
*For further information on Colour Light Output
CONTRAST
200,000:1 ( Colour Mode: Dynamic, Zoom: Wide, Lens shift: : V10 / H Centre , Auto iris: On )
COLOUR PROCESSING
Full 10 bit
COLOUR REPRODUCTIVITY
Full Colour (1.07 Billion Colours)
COLOUR SPACE
115% of NTSC
VIDEO QUALITY
Interlace - Progressive conversion 3D Y/C separation, Noise reduction, Mosquito NR, Block NR
EFFECTIVE SCANNING FREQUENCY RANGE (Digital)
PIXEL CLOCK 13.5MHz to 150MHz
HORIZONTAL 15 to 80KHz
VERTICAL 24, 50 to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Input signal etc.
TILT ANGLE 0 to 8.0 degrees
CONTRAST ENHANCEMENT 1 / 2 / 3 / Off
SUPER-RESOLUTION 1 / 2 / 3 / Off

COLOUR MODE

Dynamic, Living Room, Natural, Theatre, Theatre Black 1, Theatre Black 2, x.v. Color
EPSON CINEMA FILTER

Controlled automatically with colour mode
(ON: Natural / Theatre / Theatre Black 1 / Theatre Black 2 / x.v.Color,  OFF: Dynamic / Living room)

AUTO IRIS Controlled automatically adjusting to video source. (Available at all colour modes except x.v.Color; user selectable Off/Normal/Fast on OSD)
EPSON SUPER WHITE

Controlled automatically adjusting to video source (Available at Natural/Theatre/Theatre Black 1 and 2; user selectable ON/OFF on OSD)

4:4 Pull Down (1080p/24p, 1080/60i, or 480i capability)

On/Off, convert 3:2 pull down signal to 4:4 pull down (Default on:1080/24p, Default off:1080/60i or 480i, HDMI & Component Input)

ASPECT MODE
Auto / Normal / Full / Zoom / Wide / Anamorphic Wide
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1080p
  Resize 1280 x 1024 / 1360 x 768 / 1024 x 768 / 800 x 600 / 640 x 480
INPUT SIGNAL Signal type Separate signal
  Video signal Analog (0.7V p-p,75 ohm/ Mac0.714Vp-p, 75ohm)
  Sync.signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
INPUT TERMINAL Video Mini D-sub 15 pin x 1 Blue molding
HDMI Ver.1.3
DISPLAY PERFORMANCE Native 1080p
  Video standard 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  Video signal TMDS ( Signal for HDMI)
  Input Terminal HDMI x 2 (HDCP)
VIDEO I/O
COMPONENT INPUT
INPUT SIGNAL Video standard 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  Video signal Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75 ohm / sync. negative 0.3V or 3-state +/-0.3V on Y)
INPUT TERMINAL   RCA x 3 (Red / Green / Blue)
COMPOSITE / S VIDEO
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync.negative, 75 ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75 ohm)
INPUT TERMINAL S-Video Mini DIN x1
  Composite Video RCA (Yellow) x 1
CONTROL I/O
SERIAL I/O I/O terminal D-sub 9 pin x 1
  I/O signal RS-232c
TRIGGER OUT

Output terminal

3.5 mm mini-jack x 1
  Output Signal Power on: 12v DC, 200mA max Power off: 0v
LOCK FUNCTION Operation Lock & child-lock
OPERATING TEMPERATURE 5°C to 35 °C (41°F to 95 °F) at 20% ~ 80% Humidity
DIRECT POWER ON Yes
COOL-DOWN PERIOD Approx 16 seconds
POWER SUPPLY VOLTAGE 100-240 VAC ±10%, 50/60Hz
POWER CONSUMPTION 284W (Lamp High)
DIMENSIONS
EXCLUDE FEET 450mm(W) x 360mm(D) x 136mm(H)
MAXIMUM DIMENSION 450mm(W) x 390mm(D) x 145mm(H)
WEIGHT Approx. 7.5 kg
FAN NOISE
HIGH BRIGHTNESS MODE 28dB (Colour mode: Dynamic)
WHISPER MODE 22dB (Colour mode: Theatre Black 1 and 2)
ACCESSORIES
POWER CORD 3m
REMOTE CONTROL Stick type (backlight)
BATTERY Alkaline, AA x2 (Included)
USER'S MANUAL Included (CD-Rom)
LENS CAP Included
WARRANTY* 2 years
* including lamp

Manual Download Epson EH-TW4500 User Manual
Supplied Accessories
Remote
Rear Panel
