Epson EB-W10 LCD Multimedia Widescreen Projector



EB-W10






DISCONTINUED
FOR CURRENT EPSON PROJECTORS CLICK HERE

Epson EB W10 Reviews:


"With automatic keystone the EB-W10 setup is a little easier and it also has an instant off function so there's no need to wait around for a lengthy cool down process. Lamp life is quite good too with a 4000 hour lamp life on high brightness mode and 5000 hour lamp life on eco mode. A small carry case is included and at only 2.3kg the W10 won't take an iron man to lug it around. All in all a great projector with a solid set of features by a renowned brand we're more than happy to recommend the EB-W10. "


Epson is pleased to introduce the Epson EB-W10 3LCD Multimedia Projectors. Bright, stylish and compact, these versatile multimedia projectors are available at a resolution to suit a wide range of applications. Priced to please, the ‘10’series delivers performance and reliability to business and education environments in style.

AV Mute Slide

KEY FEATURES:

  • Powerful 2,600 Lumens Brightness – All the power you need to create big, bold presentations and dazzling home theatre
  • Stylish, Compact Design – Powerful enough to be used as an installation projector, light and compact enough to be used as a portable. The 10 series delivers a professional appearance however it is used.
  • 1.2X Optical Zoom Lens – Flexible placement for either desktop or installation usage
  • HDMI Input Terminal – The ultimate digital AV interface delivers crisp, sharp images that will bring your presentations and home theatre viewing to life!
  • Front Exhaust – Directs hot exhaust air away from desktop users and their audience

The Epson EB-W10 projector offers a stylish new design, and impressive performance. A powerful 2,600 lumens enables use in bright environments, and their wide variety of input options ensures compatibility with a broad range of multimedia input devices including computers, home theatre equipment and gaming consoles.

Auto Keystone Correction

FEATURES AND BENEFITS:

Powerful 2,600 lumens brightness
The new Epson 10 series projectors deliver a bright 2,600 lumen image thanks to Epson’s unique E-TORL lamp technology and efficient optical engine. This makes the 10 series bright enough to be used as either an installation or desktop projector in even the brightest of rooms, without the need to dim the lights or close the curtains.

Stylish, Compact Design
With stylish flowing lines, and compact form, the Epson 10 series conveys an attractive, professional appearance whether installed on a ceiling mount, or used as a portable presentation tool. White colouring enables the projector to blend unobtrusively with the ceiling when mounted, leaving the presentation room appearing clean and professional.

HDMI Input Terminal
High quality digital content can be delivered to the EB-W10 via HDMI, the ultimate digital interface, making this product suitable for use as a home theatre projector, with the EB-W10’s WXGA resolution delivering modern widescreen movies in their native format.
USB Display Function and USB Memory Slide Show
The Epson 10 series can display your presentation via a connection to a PC with a simple USB cable. You can also create and JPEG display images directly from a USB memory device, making it possible to give presentations without the need for a PC.

1.2X Optical Zoom Lens
The Epson EB-W10 features a powerful 1.2x optical zoom lens ensuring flexible installation and desktop use.

Low cost Lamp / Long Lamp Life
The Epson EB-W10 has an exceptional lamp life of 4000 hours on high brightness mode and a whopping 5000 hours on economic mode. This coupled with the low cost lamp at only $199 makes the Epson EB-W10 one of the more affordable projectors to use in the long term.



Specifications
PRODUCT TYPE Entry Level Multimedia Projectors
PRODUCT NAME Epson EB-W10
PRODUCT CODE V11H367053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.59 inches without MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 1,024,000 pixels (1280 x 800) x 3
  Native resolution WXGA
  Aspect ratio 16:10
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Optical zoom / Manual focus
  F-number 1.58 - 1.72
  Focal length 16.9mm - 20.28mm
  Zoom ratio 1.0 ~ 1.2 Optical
LAMP Type 175W UHE
  Life (Estimated) 5000Hr ( Brightness ECO)# 4000Hr (Brightness Normal)#
#Subject to operation and environmental conditions.
OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE) 33 to 318 inch [0.9 to 9.0m] (Zoom: Tele),
33 to 317 inch [1.08 to 10.5m] (Zoom: Wide)
LIGHT OUTPUT (Brightness)
  Normal Mode 2,600 Lumens Light Output
2,600 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom: Wide)
  Eco Mode 2,040 Lumens Light Output
2,040 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 2000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY 90% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
VIDEO QUALITY Simple Interlace-Progressive conversion
SOUND OUTPUT 1W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK 13.5MHz to 162MHz up to UXGA 60Hz
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
EFFECTIVE SCANNING FREQUENCY RANGE (DIGITAL)
PIXEL CLOCK 13.5MHz to 162MHz up to UXGA 60Hz
HORIZONTAL 15KHz to 64KHz
VERTICAL 50Hz to 60Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
FOOT ADJUSTER Front-centre
TILT ANGLE 0 to 12 degrees
AUTO KEYSTONE CORRECTION Vertical: -30 to +30 degrees
PASSWORD PROTECTED FUNCTION
(security function)
Implemented
OTHER FUNCTION
USB Display Display Performance - Native - 1280 x 800
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1280 x 800 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
INPUT TERMINAL Video D-sub 15pin x 1 (Blue moulding)
  Audio RCA x 1 (White/Red)
HDMI
DISPLAY PERFORMANCE Native 1280 x 800 pixels
INPUT SIGNAL Version Capabilities Ver 1.3a (Specific features IS NOT supported)
  Video Standard 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  Video Signal TMDS (TMDS is signal for HDMI)
  Audio Signal Linear PCM
  Input Terminal HDMI x 1
  HDCP Supported
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Audio signal 500mVrms / 47k-ohm
INPUT TERMINAL Video Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin (Blue moulding)
  Audio RCA x 2 (White/Red )
CONTROL I/O
USB I/O

I/O Terminal

I/O Speed

Type B x1 (for mouse control)

USB Type B Ver. 2.0

MEMORY I/O
USB I/O

I/O Terminal

I/O Speed

USB Type A x 1(for USB Memory)

USB Type A Ver. 1.1

OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity )
COOL-DOWN PERIOD "Instant off"
START-UP PERIOD Approx. 5 seconds (warm up 30 seconds)
POWER SUPPLY VOLTAGE 100-240V AC±10% 50/60Hz
POWER CONSUMPTION 100-240VAC 3.2-1.4A 50/60Hz Lamp
280W/265W (Lamp on)   2.6W/3.9W (standby)
DIMENSION
EXCLUDE FEET 228(D) x 295(W) x 77(H) mm
MAXIMUM DIMENSION 228(D) x 295(W) x 79(H) mm
WEIGHT Approx. 2.3kg
FAN NOISE
ECO MODE 29dB
NORMAL MODE 37dB
WARRANTY
STANDARD WARRANTY 2 years
Supplied Accessories
Carry Bag
Remote

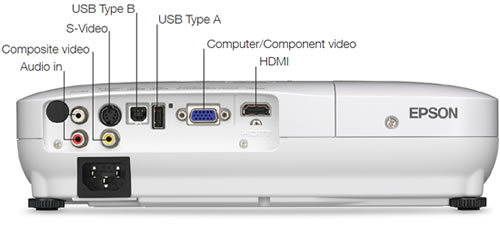

Rear Panel

EB-W10 Rear



Optional Accessories
