Epson EB-S8 LCD Multimedia PROJECTOR

DISCONTINUED

FOR CURRENT EPSON PROJECTORS CLICK HERE

Epson is pleased to introduce the Epson EB-S8 3LCD Multimedia Projectors. Bright, stylish and compact, these versatile multimedia projectors are available at a resolution to suit a wide range of applications. Priced to please, the ‘8’series delivers performance and reliability to business and education environments in style.

KEY FEATURES:

Powerful 2,500 Lumens Brightness – All the power you need to create big, bold presentations and dazzling home theatre
Stylish, Compact Design – Powerful enough to be used as an installation projector, light and compact enough to be used as a portable. The 8 series delivers a professional appearance however it is used.
1.35X Optical Zoom Lens – Flexible placement for either desktop or installation usage.
Front Exhaust – Directs hot exhaust air away from desktop users and their audience.
The Epson EB-S8 projector offer a stylish new design, and impressive performance.

A powerful 2,500 lumens enables use in bright environments, and their wide variety of input options ensures compatibility with a broad range of multimedia input devices including computers, home theatre equipment and gaming consoles.

FEATURES AND BENEFITS:

Powerful 2,500 lumens brightness
The new Epson 8 series projectors deliver a bright 2,500 lumen image thanks to Epson’s unique E-TORL lamp technology and efficient optical engine. This makes the 8 series bright enough to be used as either an installation or desktop projector in even the brightest of rooms, without the need to dim the lights or close the curtains.

Stylish, Compact Design
With stylish flowing lines, and compact form, the Epson 8 series conveys an attractive, professional appearance whether installed on a ceiling mount, or used as a portable presentation tool. White colouring enables the projector to blend unobtrusively with the ceiling when mounted, leaving the presentation room appearing clean and professional.

USB Display Function
The Epson 8 series can display your presentation via a connection to a PC with a simple USB cable.

1.35X Digital Zoom Lens
The Epson EB-S8 boasts a 1.35x digital zoom ensuring flexible installation and desktop use.

Specifications

SPECIFICATION OF MAIN PARTS
PRODUCT TYPE	Entry Level Multimedia Projectors
PRODUCT NAME	EB-S8
PRODUCT CODE	V11H309053
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Front / Rear / Ceiling Mount
LCD	Size	0.55 inches without MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	480,000 pixels (800 x 600) x 3
	Native resolution	SVGA
	Aspect ratio	4:3
	Pixel arrangement	Cross Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Digital zoom / Manual focus
	F-number	1.44
	Focal length	16.6mm
	Zoom ratio	1.0 ~ 1.35 Digital
LAMP	Type	200W UHE
	Life	5000Hr ( Low Brightness )# 4000Hr ( High Brightness )#
#Subject to operation and environmental conditions.
OPTICAL SYSTEM	Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE)	23 to 260 inch [0.87 to 10.5m] (Zoom: Tele), 30 to 350 inch [0.87 to 10.5m] (Zoom: Wide)
LIGHT OUTPUT (Brightness)
	Normal Mode	2500 Lumens (Colour mode: Dynamic, Zoom: Wide)
	Eco Mode	1960 Lumens (Colour mode: Game, Zoom: Wide)
	Colour Light Output (Colour Brightness)	2500 Lumens (Colour mode: Dynamic)
CONTRAST	2000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY	90% (Typ.)
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
VIDEO QUALITY	Simple Interlace-Progressive conversion
SOUND OUTPUT	1W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK	13.5MHz to 108MHz up to UXGA 60Hz
HORIZONTAL	15KHz to 69KHz
VERTICAL	50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
FOOT ADJUSTER	Front-centre
TILT ANGLE	0 to 12 degrees
AUTO KEYSTONE CORRECTION	Vertical: -30 to +30 degrees
PASSWORD PROTECTED FUNCTION (security function)	Implemented
OTHER FUNCTION
USB Display	USB Display Ver.1.42 (for Windows)
ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	800 x 600 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47K-ohm
INPUT TERMINAL	Video	D-sub 15pin x 1 (Blue moulding)
	Audio	RCA x 1 (White/Red)
OUTPUT SIGNAL	Video	Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync.	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 (Blue moulding)
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin (Blue moulding)
	Audio	RCA x 2 (White/Red )
CONTROL I/O
USB I/O	Type B x 1 (for mouse control)
OPERATING TEMPERATURE	5°C to 35°C (41°F to 95°F) > (20%-80% Humidity )
COOL-DOWN PERIOD	"Instant off"
START-UP PERIOD	Approx. 5 seconds (warm up 30 seconds)
POWER SUPPLY VOLTAGE	100-240V AC±10% 50/60Hz
POWER CONSUMPTION	100-240VAC 3.2-1.4A 50/60Hz Lamp 280W/265W (Lamp on) 0.3W/0.4W (standby)
DIMENSION
EXCLUDE FEET	228(D) x 295(W) x 77(H) mm
MAXIMUM DIMENSION	228(D) x 295(W) x 79(H) mm
WEIGHT	Approx. 2.3kg
FAN NOISE
ECO MODE	29dB
NORMAL MODE	34dB
WARRANTY
STANDARD WARRANTY	2 years* *excluding lamp
ACCESSORIES
POWER CORD	1.8m
COMPUTER CABLE	1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male)
USB CABLE	1.8m, A/B
REMOTE CONTROL	Included
SOFT CARRYING CASE	Included
PASSWORD PROTECT STICKER	Included
AIR FILTER	Included
OWNER'S MANUAL	CD-ROM

Supplied Accessories
Carry Bag	Remote

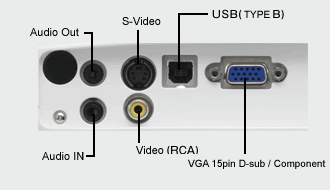

Rear Panel

Optional Accessories

Viewsonic WPG-350 Wireless Presentation Gateway

Your Price:

$329

Pick Up Avail.

[More Info]

- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display

Premium VGA Monitor Cable (15HDM/15HDM)

5 metres

$29.95

10 metres

$59.95

15 metres

$69.95

20 metres

$89.95

30 metres

$110.95

Aus Wide Delivery: $15

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

.	Features UL Approved Cabling
.	Filters included on both ends cutting down on noise
.	Maintains stronger signals using a shielded cabling run.
.	Comes in 15pin D-sub format with Male to Male conectors

Universal flush ceiling mount (205)

Your Price:

$149

Insured Delivery: $16
Pick Up Avail.

• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

Buy your new EB-S8 projector now, Contact Us today!
