Epson EB-1925W LCD Large Venue Widescreen Multimedia PROJECTOR
- With Wireless, PC-Free & Auto Screen Fit |
|
 |
 |
|
|
|
FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE |
The ideal tool offers you the best performance in both business meetings
and the classroom!

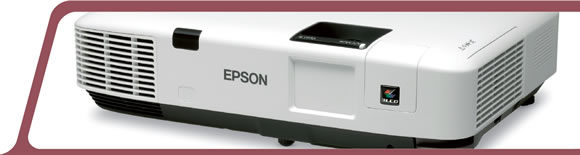

The Epson EB-1900 series is the compact, portable projector series that delivers high-quality projection without the fuss.
Packed with all the functions and features you need for impressive presentations in meetings or in the classroom, the Epson
EB-1900 series comes in a clean, easy-to-use, easy-to-maintain design, yet packs a punch.
4000lm Brightness
With a brightness of 4000lm projected images are visible
and clear even under fl uorescent lights or without curtains.
Front heat exhaust vents
The heat exhaust vents is intelligently positioned in the front
so that it will not affect the audience seated at the side of
the projector. |
 |
 |
Lightweight at up to 3.5kg^
At a modest leading lightweight of up to 3.5kg^, the
EB-1900 series projector is extremely mobile and easy to
carry around.
^ EB-1900 is at 3.2kg and EB-1910 is at 3.4kg |
Hassle-free to set up
Wireless Connection (For EB-1915/1925W only)
With the wireless connectivity feature, the EB-1900 series
projector allows you to make a connection between the PC
and the projector directly using an access point within a
wireless LAN, thus eliminating messy complicated cables
and clutter. |
 |
 |
USB Display
With the EB-1900 series projector, you no longer have to
deal with complicated set ups. Images can be projected
by simply connecting the PC and projector via the included
USB cable. In addition, a built-in 10W speaker* allows
you to enjoy powerful sound without the need for external
speakers. |
Easy-to-use features that allow images to be adjusted automatically
Auto H/V Keystone Correction (Excluding EB-1900)
During set-up, the projector automatically adjusts the focus
and keystone correction, resulting in perfect images without
the need for manual adjustment.
Note:
EB-1915/1925W is able to adjust images both vertically and horizontally.
EB-1910 is able to adjust images vertically only.
|
“Screen Fit” (For EB-1915/1925W only)
This one touch “Screen Fit” feature adjusts the image
vertically and horizontally to fi t to the size of the screen or
whiteboard.
|
User-friendly features for everyone
“Slide Converter” function (For EB-1915/1925W only)
The EB-1900 series projector comes with “Slide Converter”
software, allowing presentations to be made directly via a
USB memory device, without the need for any PC/laptop. |
 |
Instant On/Off
When you finish your presentation, you can pack up and go.
There is no need to wait for the projector to cool down.

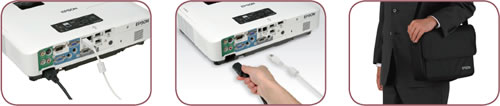

Direct Power On/Off
With this feature, you can connect the projector directly
to the room’s power source and switch the projector on
and off without having to press the “power” button on the
projector.
Easy to share pictures (Excluding EB-1900)
You can view pictures in JPEG format and save them on
a USB memory device directly with the EB-1900 series
projector. This feature allows pictures to be converted into “scenario files” as a slide show with the use of a remote
control or the operation panel. |
 |
A whole host of connectivity features to choose from

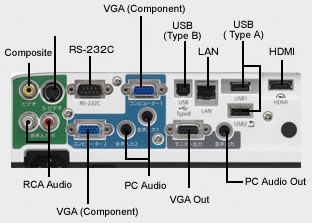

Wide-ranging Connectivity
Choose from a variety of connections including USB*,
LAN*, wireless connection** and HDMI**. It is also possible
to connect Epson’s ELP-DC06 document camera with a
USB cable*
* Excluding EB-1900
** For EB-1915/1925W only
|
Specifications
| PRODUCT TYPE |
Portable Multimedia Projector |
| PRODUCT NAME |
EB-1925W |
| PRODUCT CODE |
V11H314053 |
| PROJECTION SYSTEM |
RGB Liquid Crystal Shutter Projection System |
| PROJECTION METHOD |
Front / Rear / Ceiling Mount |
| SPECIFICATION OF MAIN PARTS |
| LCD |
Size |
0.74 inch with MLA |
| |
Driving method |
Poly-Silicon TFT Active Matrix |
| |
Pixel number |
1,024,000 dots (1280x800) x 3 |
| |
Native resolution |
WXGA |
| |
Aspect ratio |
16:10 |
| |
Pixel arrangement |
Stripe |
| |
Refresh Rate |
50Hz – 60Hz |
| PROJECTION LENS |
Type |
Manual zoom / focus |
| |
F-number |
1.75 - 2.42 |
| |
Focus length |
24 - 38.2mm |
| |
Zoom ratio |
1:1.6 |
| |
Lens Cover |
Slide lens shutter |
| LAMP |
Type |
230 W UHE (E-TORL) |
| SCREEN SIZE (PROJECTED DISTANCE) |
30 to 300 inch [1.50 to 15.42m] (Zoom: Tele),
30 to 300 inch [0.91 to 9.56m] (Zoom: Wide)
60" screen 1.9m – 3.1m |
| LIGHT OUTPUT |
| |
Normal Mode |
4,000 Lumens
(Colour mode: Dynamic, Zoom: Wide) |
| |
ECO Mode |
2,700 Lumens
(Colour mode: Dynamic, Zoom: Wide) |
| |
Colour Light Output |
4,000 Lumens
(Colour mode: Dynamic) |
| CONTRAST |
2000:1 (Auto Iris On) |
| BRIGHTNESS UNIFORMITY |
88% (Typ.) |
| COLOUR REPRODUCTIVITY |
Full colour (16.77 million colours) |
| VIDEO QUALITY |
3D Y/C separation Noise reduction, Motion compensated Interlace-Progressive conversion (2-2, 3-2 film detection) |
| SOUND OUTPUT (Internal speaker) |
10W monaural |
| FUNCTION |
Pointer, User Logo, A/V mute, Freeze, E Zoom |
| COLOUR MODES |
Dynamic, Presentation, Theatre, Photo, Blackboard, Whiteboard, Sports, Custom, sRGB |
| EFFECTIVE SCANNING FREQUENCY RANGE |
| PIXEL CLOCK |
13.5MHz to 162MHz
up to UXGA 60Hz |
| HORIZONTAL |
15KHz to 92KHz |
| VERTICAL |
50Hz to 85Hz |
| ADJUSTMENT FUNCTION |
| PROJECTOR / REMOTE CONTROL |
Brightness / Contrast / Tint / Saturation /
Sharpness / Input signal / Sync / Tracking / Position /
Color temperature / Volume / etc… |
| HEIGHT ADJUSTER |
Front-centre |
| TILT ANGLE |
0 to 10 degrees |
| KEYSTONE CORRECTION |
Vertical: -45 to +45 degrees (Zoom: Tele)
Horizontal: -30 to +30 degrees (Zoom: Tele) |
| AUTO KEYSTONE CORRECTION |
Horizontal & Vertical
Vertical : -30 degrees to +30 degrees
Horizontal: -20 degrees to +20 degrees |
| SCREEN FIT |
Screen Fit : Approx. 6 seconds
Distance : 1m~3.5m
Screen Size : 40inch~100inch
Horizontal & Vertical
Vertical : -30 degrees to +30 degrees
Horizontal: -20 degrees to +20 degrees |
| SOURCE SEARCH |
YES |
| AUTO DETECTION OF RGB / COMPONENT |
YES |
| MULTI SCREEN COLOUR ADJUSTMENT |
YES |
| PROJECTOR ID |
YES |
| OPERATION PANEL PROTECTION FUNCTION |
YES |
PASSWORD PROTECTED FUNCTION
(Security function) |
YES (Protection of User logo, Power On, Network) |
| TEST PATTERN |
YES |
| HIGH ALTITUDE MODE |
YES |
| USER'S LOGO |
YES |
| IRIS ON/OFF |
YES |
| USER BUTTON |
YES |
| FOCUS |
Powered |
| LENS SHUTTER FUNCTION |
A/V Mute Function |
| ANALOGUE RGB I/O |
| DISPLAY PERFORMANCE |
Native |
1280 x 800 pixels |
| INPUT SIGNAL |
Signal type |
Separate signal |
| |
Video signal |
Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) |
| |
Sync. signal |
Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
| |
Audio signal |
500mVrms / 47K-ohm |
| INPUT TERMINAL |
Video |
Mini D-sub 15pin x 2 Blue moulding |
| |
Audio |
|
| OUTPUT SIGNAL |
Video |
Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Sync. |
Separate (positive & negative,TTL) /
Composite (positive & negative, TTL) /
Sync. on green (negative 0.2-0.4 Vpp) |
| OUTPUT TERMINAL |
Video |
Mini D-sub 15pin x 1 Black moulding |
| |
Audio |
Stereo mini-jack |
| VIDEO I/O |
| DISPLAY PERFORMANCE |
|
NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) |
| INPUT SIGNAL |
Video standard |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| |
Video signal |
Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Audio signal |
500mVrms / 47Kohm |
| INPUT TERMINAL |
Video |
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector) |
| |
Audio |
RCA (White/Red) x 2 |
| USB DISPLAY |
Display Performance |
Native (1024 x 768) |
| |
Input Signal |
Video
Audio |
| CONTROL I/O |
| USB I/O |
I/O Terminal |
USB connector series B x1 (for mouse, K/B, control) |
| SERIAL I/O |
I/O Terminal |
Mini D-sub 9pin x1 |
| |
I/O Signal |
RS-232C |
| NETWORK INTERFACE |
|
RJ45 x1 |
| MEMORY I/O |
I/O Terminal |
USB Type A x 1(for USB Memory, Document Camera) |
| WIRELESS SPECIFICATION |
Supported Speeds |
802.11a/b/g |
| |
Supported Modes |
Adhoc, Infrastructure |
| OPERATING TEMPERATURE |
5°C to 35°C (41°F to 95°F) (20%-80% Humidity ) |
| DIRECT POWER ON |
YES |
| DIRECT POWER OFF |
YES |
| COOL-DOWN PERIOD |
Instant off |
| START-UP PERIOD |
Approx. 10 seconds |
| POWER SUPPLY VOLTAGE |
100 - 120V / 200 - 240V ±10%, 50/60Hz AC |
| POWER CONSUMPTION |
319W (Normal Mode), 237W (ECO Mode)
6.8W (Standby network on), 0.3W (Standby Network off) |
| DIMENSION |
| EXCLUDE FEET |
257(D) x 357(W) x 86(H) mm |
| MAXIMUM DIMENSION |
257(D) x 357(W) x 95(H) mm |
| WEIGHT |
Approx. 7.54lb / 3.4Kg |
| FAN NOISE |
|
| ECO MODE |
29dB |
| NORMAL MODE |
37dB |
| ACCESSORIES |
| POWER CORD |
3m |
| COMPUTER CABLE |
1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male) |
| USB CABLE |
3m, USB A / B |
| REMOTE CONTROL |
Included |
| BATTERY |
Alkaline AA x 2 |
| PASSWORD PROTECT SEAL |
Included |
| BUNDLED SOFTWARE |
Meeting & Monitoring Ver.1.10 |
| OWNER'S MANUAL |
Included (CD-Rom) |
| WARRANTY |
| STANDARD WARRANTY |
2 years |
| EASY MP |
| FUNCTION |
Projector control and projector management via network
E-mail notification
SNMP
AMX Device Discovery |
| SOFTWARE |
EMP Monitor Ver4.31 (for Windows) |
| |
EMP Network Manager Ver1.02 (for Windows / MAC OSX) |
| PC FREE(PHOTO, IMAGE AND MOVIE) |
Yes |
| NETWORK PRESENTATION |
Yes |
| WINDOWS NETWORK PROJECTOR |
Yes |
| PC APPLICATIONS |
EasyMP Monitor Ver.4.31 (for Windows) |
| |
Projector Control Ver.1.01 (for Windows) Web download only |
| |
EasyMP Network Projection Ver.2.60 (for Windows and Mac) No Audio |
| |
USB Display Ver.1.43 (for Windows) With Audio |
| |
EasyMP Slide converter Ver.1.00 (for Windows) |
| WIRELESS LAN SECURITY |
WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
EAP-TLS,
EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2,
PEAP/MS-CHAPv2, PEAP/GTC
LEAP, EAP-Fast/MS-CHAPv2, EAP-Fast/GTC |
Supplied Accessories
|
Remote |
|
|
