Epson EB-1830 LCD Large Venue Multimedia PROJECTOR




DISCONTINUED

FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE



Epson is pleased to introduce the EB-1830 3LCD Multimedia Projector. Designed for total ease of use in the corporate environment, these powerful projectors feature market leading technologies that deliver automatic set-up, rich, colours and crisp images, enhancing the professional appearance of your business.

KEY FEATURES:

  • Easy to use Features Including Automatic Setup – Simply turn on the power and leave the rest to the projector.
  • Powerful Brightness – Enables the EB-1830 to be used in bright environments, even in large rooms such as classrooms and offices without dimming the lights or drawing the curtains. (EB-1830 produces 3,500 lumens)
  • Network Functionality – Operate and monitor from a remote location
  • USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
  • Low Power Consumption – The EB-1830 complies with the European EuP Directive on Eco-Design of energy using products
  • Broad Connectivity – 2 x PC inputs, S-Video, RCA, RS-232C, Audio out, monitor out, RJ45

Weighing in at only 3.5kg, and capable of producing up to 3,500 lumens Light Output and 3,500 lumens Colour Light Output, the Epson EB-1830 is most at home in the corporate environment. Fully networkable, and boasting many easy to use features, this projector is an ideal tool for the modern office.

FEATURES AND BENEFITS:

Easy-To-Use
The Epson EB-1830 is designed for absolute ease of use. Simply turn on the power, direct the projector towards the screen or wall and the projector will automatically correct the image in seconds. Any vertical keystoning is automatically corrected.

Network Capability
With the EB-1830 monitoring and operation can be carried out from a remote PC via network connection. System Administrators can turn the projector off, switch between sources, as well as control and monitor lamp and temperature conditions. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce impact on the environment.

USB Display Function and USB Memory Slide Show
The EB-1830 can display your presentation via a connection to a PC with a simple USB cable. You can also create and display JPEG images directly from a USB memory device, making it possible to give presentations without the need for a PC.

Low Power Consumption – EuP Compliance
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-1830 conforms to the criteria of this directive.

Direct Connect to ELP-DC06 Document Camera
Further enhancing suitability to the modern corporate environment is the ability for the EB-1830 to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.
*ELP-DC06 Camera Sold Seperately







Specifications
PRODUCT TYPE
Portable Multimedia Projector
PRODUCT NAME
EB-1830
PRODUCT CODE
V11H341053
PROJECTION SYSTEM
RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD
Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD
Size
0.70 inch with MLA
Driving method
Poly-Silicon TFT Active Matrix
Pixel number

786,432 pixels
(1024 x 768) x 3

Native resolution
XGA
Aspect ratio
4:3
Pixel arrangement
Stripe
Refresh Rate
72Hz
PROJECTION LENS
Type
Manual zoom / focus
F-number
1.75 - 2.42
Focus length
24 - 38.2mm
Zoom ratio
1:1.6
Lens Cover
Slide lens shutter
LAMP
Type
230 W UHE (E-TORL)
SCREEN SIZE (PROJECTED DISTANCE)
30 to 300 inch [1.58 to 16.24] (Zoom: Tele),
30 to 300 inch [0.96 to 9.07m] (Zoom: Wide)
60" screen 2.0m – 3.2m
LIGHT OUTPUT
High Brightness Mode
3,500 Lumens
(Colour mode: Dynamic, Zoom: Wide)
Low Brightness Mode
2,350 Lumens
(Colour mode: Dynamic, Zoom: Wide)
Colour Light Output
3,500 Lumens
(Colour mode: Dynamic)
CONTRAST
2000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY
88% (Typ.)
COLOUR REPRODUCTIVITY
Full colour (16.77 million colours)
VIDEO QUALITY
3D Y/C separation Noise reduction, Motion compensated Interlace-Progressive conversion (2-2, 3-2 film detection)
SOUND OUTPUT (Internal speaker)
10W monaural
FUNCTION
Pointer, User Logo, A/V mute, Freeze, E Zoom
COLOUR MODES
Dynamic, Presentation, Theatre, Photo, Blackboard, Whiteboard, Sports, Custom, sRGB
EFFECTIVE SCANNING FREQUENCY RANGE
PIXEL CLOCK
13.5MHz to 162MHz
HORIZONTAL
15KHz to 92KHz
VERTICAL
50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL
Brightness / Contrast / Tint / Saturation /
Sharpness / Input signal / Sync / Tracking / Position /
Color temperature / Volume / etc…
HEIGHT ADJUSTER
Front-centre
TILT ANGLE
0 to 10 degrees
KEYSTONE CORRECTION
Vertical: -30 to +30 degrees (Zoom: Tele)
AUTO KEYSTONE CORRECTION
Yes (Vertical only)
SOURCE SEARCH
YES
AUTO DETECTION OF RGB / COMPONENT
YES
MULTI SCREEN COLOUR ADJUSTMENT
YES
PROJECTOR ID
YES
OPERATION PANEL PROTECTION FUNCTION
YES
PASSWORD PROTECTED FUNCTION
(Security function)
YES (Protection of User logo, Time lock, Network)
TEST PATTERN
YES
HIGH ALTITUDE MODE
YES
USER'S LOGO
YES
IRIS ON/OFF
YES
USER BUTTON
YES
LENS SHUTTER FUNCTION
A/V Mute Function
ANALOGUE RGB I/O
DISPLAY PERFORMANCE
Native
1024 x 768 pixels
INPUT SIGNAL
Signal type
Separate signal
Video signal
Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
Sync. signal
Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
Audio signal
500mVrms / 47K-ohm
INPUT TERMINAL
Video
Mini D-sub 15pin x 2 Blue moulding
Audio
OUTPUT SIGNAL
Video
Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
Sync.
Separate (positive & negative,TTL) /
Composite (positive & negative, TTL) /
Sync. on green (negative 0.2-0.4 Vpp)
OUTPUT TERMINAL
Video
Mini D-sub 15pin x 1 Black moulding
Audio
Stereo mini-jack
VIDEO I/O
DISPLAY PERFORMANCE
NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL
Video standard
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Video signal
Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
Audio signal
500mVrms / 47Kohm
INPUT TERMINAL
Video
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Audio
RCA (White/Red) x 2
USB DISPLAY
Display Performance
Native (1024 x 768)
Input Signal
Video
Audio
CONTROL I/O
USB I/O
I/O Terminal
USB connector series B x1 (for mouse, K/B, control)
SERIAL I/O
I/O Terminal
Mini D-sub 9pin x1
I/O Signal
RS-232C
NETWORK INTERFACE
RJ45 x1
MEMORY I/O
I/O Terminal
USB Type A x 1(for USB Memory, Document Camera)
OPERATING TEMPERATURE
5°C to 35°C (41°F to 95°F) (20%-80% Humidity )
DIRECT POWER ON
YES
DIRECT POWER OFF
YES
COOL-DOWN PERIOD
Instant off
START-UP PERIOD
Approx. 10 seconds
POWER SUPPLY VOLTAGE
100 - 120V / 200 - 240V ±10%, 50/60Hz AC
POWER CONSUMPTION
319W (Normal Mode), 237W (ECO Mode)
8.8W (Standby network on), 0.3W (Standby Network off)
DIMENSION
EXCLUDE FEET
257(D) x 357(W) x 86(H) mm
MAXIMUM DIMENSION
257(D) x 357(W) x 95(H) mm
WEIGHT
Approx. 7.54lb / 3.4Kg
FAN NOISE
ECO MODE
29dB
NORMAL MODE
37dB
ACCESSORIES
POWER CORD
3m
COMPUTER CABLE
1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male)
USB CABLE
3m, USB A / B
REMOTE CONTROL
Included
BATTERY
Alkaline AA x 2
PASSWORD PROTECT SEAL
Included
BUNDLED SOFTWARE
Meeting & Monitoring Ver.1.10
OWNER'S MANUAL
Included (CD-Rom)
WARRANTY
STANDARD WARRANTY
2 years
Supplied Accessories
Carry Bag
Remote

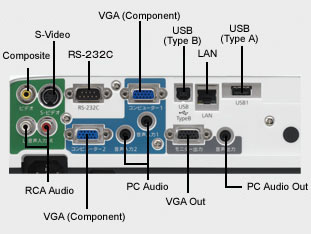

Rear Panel
