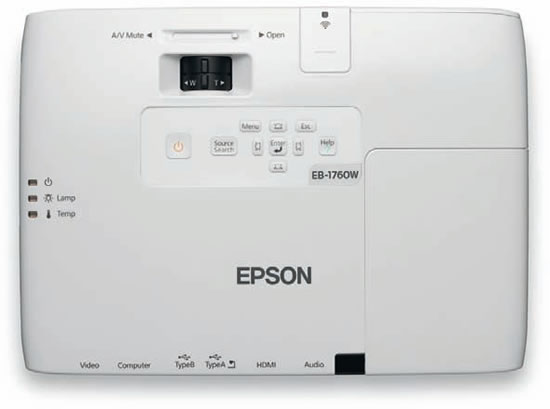

Epson EB-1760W LCD Ultra Portable Multimedia Widescreen Projector
|
|
|
 |
|
|
FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE
|
Whether travelling on business or simply moving between meeting
rooms, this ultra-mobile projector is the ideal choice for effective,
stress-free presenting.
Designed with the mobile presenter in mind, this stylish projector weighs just
1.7kg with a height of 44mm – making it one of the flattest and lightest models
in Epson’s projector range. A high white and Colour Light Output (CLO) of 2,600
lumens combined with Epson’s 3LCD technology provides outstanding picture
quality and vivid natural colours even in full daylight. The projector’s WXGA
resolution offers full widescreen presenting.
Perfect for presenting on-location, set-up is easy with the quick start-up and
instant-off functions. Automatic vertical keystone and manual horizontal keystone
correction means images are always completely straight and free from distortion.
Control and improve your presentation with a host of EasyMP features, including
3-in-1 USB display, USB PC free function, plus optional wireless connectivity.
KEY FEATURES
• Extra-flat, ultra-light design
• 2,600 lumens for easy daylight viewing
• Automatic vertical keystone correction
• USB Display for fuss-free presenting
• Quick start-up and instant-off functions
Capable of producing a bright 2,600 lumen image, the EB-1760W is ideal for use by busy executives on the go. Weighing in at only 1.7kg, and boasting a broad range of user friendly functionality including V + H keystone correction, and small enough to fit in one bag along with your notebook PC, the EB-1760W is a lightweight projector that really packs a punch.
Easy to use Features – Horizontal and Vertical keystone correction makes setup a breeze
Small and lightweight – Only 45mm thick, and 1.7kg in weight
Wireless 802.11b/g/n – Available as an option for use with the EB-1760W
“One Bag” Solution for Busy Executives – So small you can carry both your notebook PC and projector in the one carry bag!
Low Cost Total Cost of Ownership – Lamp price only $119RRP
Broad Connectivity – HDMI, VGA, Video (RCA), USB Type B, USB Type A, Audio (stereo mini)
“One Bag” Solution for Busy Executives – So small you can carry both your notebook PC and projector in the one carry bag!
Low Cost Total Cost of Ownership – Lamp price only $149RRP
Broad Connectivity – HDMI, VGA, Video (RCA), USB Type B, USB Type A, Audio (stereo mini) |
 |
Easy-To-Use
The Epson EB-1760W was designed for absolute ease of use. Horizontal and Vertical keystone correction enables users to project a square image from an offset position. Perfect for executives presenting in a client’s meeting room.
In line with the screen aspect of most notebook PCs, the EB-1760W projects in a native WXGA widescreen aspect, meaning no complications. Simply connect, and project!
Network and Wireless Capability
With the EB-1760W you can remove the need for untidy, complicated cabling, and connect to your 802.11b/g/n wireless network via the ELPAP07 wireless LAN module (optional). For added simplicity, the ELPAP08 USB Quick Wireless Connection Key (optional) enables users to make a quick peer to peer connection to a PC.
USB Display Function and USB Memory Slide Show
The EB-1760W can display your presentation with image, audio and mouse control via a connection to a PC or Mac with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.
Low Power Consumption – EuP Compliance
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-1760W conforms to the criteria of this directive.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern corporate environment is the ability for the EB-1760W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.
|
Specifications
| PRODUCT TYPE |
Portable Multimedia Projector |
| PRODUCT NAME |
Epson EB-1760W |
| PRODUCT CODE |
V11H361053 |
| PROJECTION SYSTEM |
RGB Liquid Crystal Shutter Projection System |
| PROJECTION METHOD |
Front / Rear / Ceiling Mount |
| SPECIFICATION OF MAIN PARTS |
| LCD |
Size |
0.59 inch without MLA |
|
Driving method |
Poly-Silicon TFT Active Matrix |
|
Pixel number |
(1280 x 800) x 3 |
|
Native resolution |
WXGA |
|
Aspect ratio |
16:10 |
|
Pixel arrangement |
Cross Stripe |
|
Refresh Rate |
50Hz-60Hz |
| PROJECTION LENS |
Type |
Manual zoom / focus |
|
F-number |
1.58 - 1.70 |
|
Focus length |
13.52 – 16.22mm |
|
Zoom ratio |
1 - 1.2 |
|
Offset |
10:1 |
|
Type |
205 W UHE |
|
Optical System |
Dichroic Mirror Separation & Prism Combine Method |
| SCREEN SIZE (PROJECTED DISTANCE) |
30 to 300 inch [0.67 to 6.81m] (Zoom: Tele),
30 to 300 inch [0.80 to 8.18m] (Zoom: Wide)
60" screen 1.35m – 1.62m |
| BRIGHTNESS |
|
High Brightness Mode |
2,600 Lumens Light Output
2,600 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide) |
|
Low Brightness Mode |
1,700 Lumens Light Output
1,700 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide) |
| CONTRAST |
2000:1 (auto iris on ) |
| BRIGHTNESS UNIFORMITY |
87% (Typ.) |
| COLOUR REPRODUCTIVITY |
Full colour (16.77 million colours) |
| SOUND OUTPUT (Internal speaker) |
1W monaural |
| FUNCTION |
User Logo, A/V mute, Freeze, E Zoom, Help |
| COLOUR MODES |
PC: Dynamic, Photo, Presentation, Theatre, sRGB, Blackboard, Whiteboard, Custom.
Video: Dynamic, Sports, Presentation, Theatre, sRGB, Blackboard, Whiteboard, Custom. |
| EFFECTIVE SCANNING FREQUENCY RANGE |
| PIXEL CLOCK |
13.5MHz to 162MHz |
| HORIZONTAL |
15KHz to 92KHz |
| VERTICAL |
50Hz to 117Hz |
| ADJUSTMENT FUNCTION |
| PROJECTOR / REMOTE CONTROL |
Brightness / Contrast / Tint / Saturation /Sharpness / Input signal / Sync / Tracking / Position /Color temperature / Volume / etc… |
| height ADJUSTER |
Front-centre |
| TILT ANGLE |
0 to 14 degrees |
| KEYSTONE CORRECTION |
Vertical: -45 to +45 degrees (Zoom: Tele)
Horizontal: -30 degrees to +30 degrees ( Zoom: Tele) |
| AUTO KEYSTONE CORRECTION |
Vertical: -30 degrees to +30 degrees |
| SOURCE SEARCH |
YES |
| AUTO DETECTION OF RGB / YCbCr |
YES |
| MULTI SCREEN COLOUR ADJUSTMENT |
YES |
| OPERATION PANEL PROTECTION FUNCTION |
YES |
| AUTO IRIS ON/OFF |
YES |
PASSWORD PROTECTED FUNCTION
(Security Function)
|
(Protection of User logo, Time lock, Network) |
| ANALOGUE RGB I/O |
| DISPLAY PERFORMANCE |
Native |
1280 x 800 pixels |
| INPUT SIGNAL |
Signal type |
Separate signal |
|
Video signal |
Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
|
Sync. signal |
Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
|
Audio signal |
500mVrms / 47K-ohm |
| VIDEO INPUT TERMINAL |
|
D-sub 15pin x 1 Blue-moulding |
| HDMI |
| Input signal |
Video standard
Video signal |
480i/576i/480p/576p/720p/1080i/1080p
TMDS ( signal for HDMI ) |
| Input terminal |
Audio signal
Video |
Linear PCM
HDMI x 1 (Correspond to HDCP) |
| VIDEO I/O |
| DISPLAY PERFORMANCE |
|
NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern) |
| INPUT SIGNAL |
Video standard |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
|
Video signal |
Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
|
Audio signal |
500mVrms / 47Kohm |
| VIDEO INPUT TERMINAL |
|
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
USB Display |
| CONTROL I/O |
USB I/O
USB I/O |
I/O terminal
I/O Speed |
Type B x1 (for USB Display, mouse, K/B control)
USB Vers. 2.0 |
| OPERATING TEMPERATURE |
5°C to 35°C (41°F to 95°F), (20% - 80% Humidity)
Thermal shutdown > 45 degree C |
| OPERATING ALTITUDE |
0m to 2286m < 0ft to 7500ft >
(over 1500m / 4,921ft with high altitude mode) |
| DIRECT Power On |
Yes |
| COOL-DOWN PERIOD |
Instant off |
| START-UP PERIOD |
< 7.2 seconds |
| EXHAUST DIRECTION |
Front |
| POWER SUPPLY VOLTAGE |
100-240V AC±10% 50/60Hz |
| POWER CONSUMPTION |
240VAC 2.7-1.2A 50/60Hz
Lamp On 278W |
| DIMENSION |
| EXCLUDE FEET |
210(D) x 292(W) x 44(H) mm |
| MAXIMUM DIMENSION |
210(D) x 292(W) x 53.4(H) mm |
| WEIGHT |
Approx. 1.7Kg |
| FAN NOISE |
|
| LOW BRIGHTNESS MODE |
30dB |
| HIGH BRIGHTNESS MODE |
40dB |
EASY MP FUNCTION
(VIA OPTIONA WIRELESS LAN ADAPTER) |
| Projector control and projector management via network |
|
Email notification: Yes (via Included Wireless LAN Unit)
SNMP: Yes (via Included Wireless LAN Unit)
Web Control: Yes (via Included Wireless LAN Unit)
PJ Link : Yes (via Included Wireless LAN Unit)
AMX Device Discovery: Yes (via Included Wireless LAN Unit)
Network Presentation: Yes (via Included Wireless LAN Unit) |
|
Software |
EMP Monitor (for Windows*#)
EMP NS Connection (for windows*# and Mac)
EMP Slide Maker2 (for Windows*#) |
|
Security (Wireless LAN) |
WEP, WPA-PSK (TKIP), WPA-PSK(AES)
* Software compatible with MS Vista available free of charge at epson.com.au from June 1st, 2007
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit. |
| ACCESSORIES |
| POWER CORD |
3.0m |
| COMPUTER CABLE |
1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) |
| USB CABLE |
3.0 m, USB A / B HI-SPEED |
| REMOTE CONTROL |
Compact type (Included) |
| BATTERY |
Manganese AA x 2 |
| AUDIO ADAPTER |
3.5mm stereo mini plug (male) <-> RCA jack x 2 (female) 15cm |
| WIRELESS LAN ADAPTOR |
802.11b/11g/11n (Optional) |
| SOFT CARRYING CASE |
Included |
| LENS COVER |
In built |
| SOFTWARE |
INCLUDED (CD-ROM) |
| PASSWORD PROTECT STICKER |
Included |
| OWNER'S MANUAL |
Included |
| WARRANTY |
| STANDARD WARRANTY |
2 years |
Supplied Accessories
|
Carry Bag |
Remote |
|
|
|
|
|
| Optional Accessories |
| Optional Accessories |
|
Universal Flush Projector Ceiling Mount FB-1 *Recommended* |
|
|
SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
|
FEATURES
- Direct to ceiling mount (150mm)
-
Suits most projectors with 3 or 4 holes
|
|
Epson Wireless Adapter ELPAP07 |
|
|
SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC or via a network
• With 802.11b/g/n Wireless Connectivity
• Notebook/desktop PC requires an existing wireless connection.
• Not suitable for full motion video
|
|
|
Epson Quick Wireless Adapter ELPAP08 |
|
|
SPECIFICATIONS
• Upgrade the ELPAP07 to Plug & Play Quick Operation (ELPAP07 required)
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity
• Notebook/desktop PC requires an existing wireless connection.
• Not suitable for full motion video
|
|
|
|
|
Premium VGA Monitor Cable |
5 Metres |
$29.95
|
10 Metres |
$59.95 |
15 Metres |
$69.95 |
20 Metres |
$89.95 |
30 Metres |
$110.95 |
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
- Features UL Approved Cabling
- Filters included on both ends cutting down on noise
- Maintains stronger signals using a shielded cabling run.
- Comes in 15pin D-sub format with Male to Male conectors
|
 |
