Epson EB-1750 LCD Ultra Portable Multimedia Projector









DISCONTINUED
FOR CURRENT EPSON PROJECTORS
CLICK HERE


Whether travelling on business or simply moving between meeting rooms, this slimline, ultra-mobile projector is the ideal choice for effective, stress-free presenting.

Designed with the mobile presenter in mind, this stylish projector weighs just 1.7kg with a height of 44mm – making it one of the flattest and lightest models in Epson’s projector range. A high white and Colour Light Output (CLO) of 2,600 lumens combined with Epson’s 3LCD technology provides outstanding picture quality and vivid natural colours even in full daylight.

Perfect for presenting on-location, set-up is easy with the quick start-up and instant-off functions. Automatic vertical keystone and manual horizontal keystone correction means images are always completely straight and free from distortion. With the 3-in-1 USB display – unique to Epson – presenters can play both image and sound from the projector, as well as using the remote control with just one USB cable. This is also compatible with Macs too.

KEY FEATURES
• Extra-flat, ultra-light design
• 2,600 lumens for easy daylight viewing
• Automatic vertical keystone correction
• USB Display for fuss-free presenting
• Quick start-up and instant-off functions

Capable of producing a bright 2,600 lumen image, the EB-1750 is ideal for use by busy executives on the go. Weighing in at only 1.7kg, and boasting a broad range of user friendly functionality including V + H keystone correction, and small enough to fit in one bag along with your notebook PC, the EB-1750 is a lightweight projector that really packs a punch.

“One Bag” Solution for Busy Executives – So small you can carry both your notebook PC and projector in the one carry bag!

Low Cost Total Cost of Ownership – Lamp price only $149RRP

Broad Connectivity – VGA, Video (RCA), USB Type B, USB Type A, Audio (stereo mini)

Easy-To-Use
The Epson EB-1750 was designed for absolute ease of use. Horizontal and Vertical keystone correction enables users to project a square image from an offset position. Perfect for executives presenting in a client’s meeting room.

USB Display Function and USB Memory Slide Show
The EB-1750 can display your presentation with image, audio and mouse control via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.

Low Power Consumption – EuP Compliance
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-1750 conforms to the criteria of this directive.

Direct Connect to ELP-DC06
Further enhancing suitability to the modern corporate environment is the ability for the EB-1750 to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC


Specifications
PRODUCT TYPE Portable Multimedia Projector
PRODUCT NAME Epson EB-1750
PRODUCT CODE V11H372053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.55 inch without MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number (1024 x 768) x 3
  Native resolution XGA
  Aspect ratio 4:3
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Manual zoom / focus
  F-number 1.58 - 1.70
  Focus length 13.52 – 16.22mm
  Zoom ratio 1 - 1.2
  Offset 7.9:1
  Type 230 W UHE
  Optical System Dichroic Mirror Separation & Prism Combine Method
SCREEN SIZE (PROJECTED DISTANCE) 30 to 300 inch [0.72 to7.3m] (Zoom: Tele),
30 to 300 inch [0.86 to 8.77m] (Zoom: Wide)
60" screen 1.45m – 1.74m
BRIGHTNESS
  High Brightness Mode 2,600 Lumens Light Output
2,600 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
  Low Brightness Mode 1,400 Lumens Light Output
1,400 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 2000:1 (auto iris on )
BRIGHTNESS UNIFORMITY 91% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker) 1W monaural
FUNCTION User Logo, A/V mute, Freeze, E Zoom, Help
COLOUR MODES PC: Photo, Presentation, Theatre, Game, sRGB, Blackboard, Whiteboard, Custom
Video: Sports, Presentation, Theatre, Game, sRGB, Blackboard, Whiteboard, Custom
EFFECTIVE SCANNING FREQUENCY RANGE
PIXEL CLOCK 13.5MHz to 162MHz
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 117Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation /Sharpness / Input signal / Sync / Tracking / Position /Color temperature / Volume / etc…
height ADJUSTER Front-centre
TILT ANGLE 0 to 14 degrees
KEYSTONE CORRECTION Vertical: -45 to +45 degrees (Zoom: Tele)
Horizontal: -30 degrees to +30 degrees ( Zoom: Tele)
AUTO KEYSTONE CORRECTION Vertical: -30 to +30 degrees (Zoom: Tele)
SOURCE SEARCH YES
AUTO DETECTION OF RGB / YCbCr YES
MULTI SCREEN COLOUR ADJUSTMENT YES
OPERATION PANEL PROTECTION FUNCTION YES
AUTO IRIS ON/OFF YES
PASSWORD PROTECTED FUNCTION
(Security Function)
(Protection of User logo, Time lock, Network)
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1024 x 768 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
VIDEO INPUT TERMINAL   D-sub 15pin x 1 Blue-moulding
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
VIDEO INPUT TERMINAL   Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
USB Display
CONTROL I/O
USB I/O I/O terminal

I/O Speed
Type B x1 (for USB Display, mouse, K/B control)

USB Vers. 2.0
OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F), (20% - 80% Humidity)
Thermal shutdown > 45 degree C
OPERATING ALTITUDE 0m to 2286m < 0ft to 7500ft >
(over 1500m / 4,921ft with high altitude mode)
DIRECT Power On Yes
COOL-DOWN PERIOD Instant off
START-UP PERIOD < 7.2 seconds
Exhaust direction Front
POWER SUPPLY VOLTAGE 100-240V AC±10% 50/60Hz
POWER CONSUMPTION 240VAC 2.7-1.2A 50/60Hz
Lamp On 304W
DIMENSION
EXCLUDE FEET 210(D) x 292(W) x 44(H) mm
MAXIMUM DIMENSION 210(D) x 292(W) x 53.4(H) mm
WEIGHT Approx. 1.7Kg
FAN NOISE
LOW BRIGHTNESS MODE 30dB
HIGH BRIGHTNESS MODE 40dB
ACCESSORIES
POWER CORD 3.0m
COMPUTER CABLE 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male)
USB CABLE 3.0 m, USB A / B HI-SPEED
REMOTE CONTROL Compact type (Included)
BATTERY Manganese AA x 2
SOFT CARRYING CASE Included
LENS COVER In built
SOFTWARE INCLUDED (CD-ROM)
PASSWORD PROTECT STICKER Included
OWNER'S MANUAL Included
WARRANTY
STANDARD WARRANTY 2 years
Supplied Accessories
Carry Bag
Remote

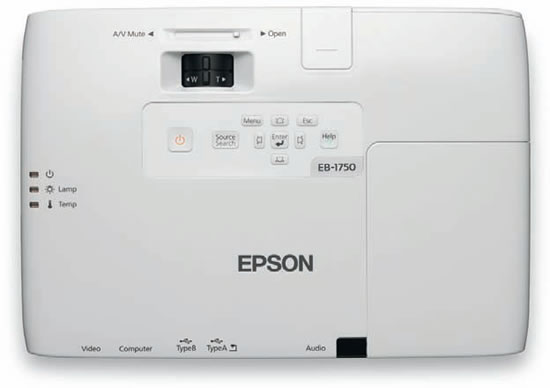

Rear Panel
Optional Accessories



VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
