Epson EB-1735W LCD Ultra Portable Widescreen Multimedia PROJECTOR - With Wireless & PC Free






DISCONTINUED

FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE

Epson EB-1735W Reviews

I was very impressed with the Epson 1735W. It does everything a good multimedia projector should, has decent brightness, excellent portability and terrific (and painless) wireless networking. Using the USB network key, connecting wirelessly to the 1735W is as easy as turning on your computer.

Colors are deep and rich, making this a great projector for photo presentations and the quality of its video reproduction is very pleasing to the eye as well.

The 1735W comes with a travel bag that holds the projector and all of its cables and accessories. That’s good, because its light weight and easy setup make it a natural for those who travel a lot, making presentations at each stop. It can also be permanently mounted in a small boardroom or classroom, while maintain easy access to controls, lamp and air filter.


Super sleek energy efficient 3LCD business projectors combining powerful performance with a range of easy to use functions in a sophisticated and stylish compact lightweight body.

Features:

  • High 3000 Lumens Brightness
  • Short Throw Lens
  • WXGA Widescreen Resolution for more details & easier connection to modern laptops
  • Wireless with Easy Connect
  • Easy Connect USB Port
  • PC Free Presentations
  • Light weight 1.8kg design
  • Long lamp life, 4000 hours on eco mode
  • Auto Keystone Correction
  • New iris design offering a 2000:1 contrast for better images
  • Instant off & Quick start up

Advanced 3LCD technology

World–leading projector video display technology
At the heart of the EB-1735W is Epson's world–leading 3LCD technology. This projection system uses three individual LCD panels to display images that exhibit silky smooth movement and fresh, natural colours.

Bright, vibrant colours and unequalled image quality are characteristics of 3LCD technology, with the projector delivering outstanding results in any presentation environment.

Due to 3LCD's incredibly efficient use of light, projectors based on this technology are able to achieve quiet operating levels, exceptional clarity and flicker–free presentations.


Light–efficient lamp technology E–TORL

Delivering brilliant light — all the time, every time
One of the crucial features delivered by the EB-1735W is its ability to provide up to 3000 ANSI lumens via incredibly efficient E–TORL (Epson Twin Optimised Reflection Lamp) technology. Designed to minimise light leakage — a primary cause of lamp inefficiency — and minimise light diffraction, E–TORL lamps combine an ellipsoidal reflector, spherical lens and hemispherical mirror. This combination ensures optimum light efficiency with minimal power consumption and heat generation.

Environmentally Conscious Design

No use of Halogen fireproof chemicals for the the main body
Recycled paper used for packaging, no use of Styrofoam
Lead-free lens
Low power consumption and improved light efficiency
Reduced standby power consumption

Advanced Wireless Security
Enterprise level wireless network and security

With projectors increasingly becoming a valuable tool for business and education, it is often important to control their use and of course, prevent theft. With the EB-1735W you can (if required) prevent operation without a correct password, set a time limit and protect the user logo in the start–up screen.

To ensure the EB-1735W provides the best possible fit with today's increasingly wireless environment, the projector has been designed with enterprise–level security features. Among the various security and encryption technologies incorporated within the projector are:

  • Wired Equivalent Privacy (WEP) standard encryption scheme
  • WiFi Protected Access–PreShared Key (WPA–PSK) security specification, often referred to as WPA "Home", which uses a key of 256 bits in length
  • WiFi Protected Access–Extensible Authentication Protocol (WPA–EAP), sometimes referred to as WPA "Enterprise", which offers TLS (Transport Layer Security), TTLS (Tunnelled Transport Layer Security) and PEAP (Protected Extensible Authentication Protocol) connection and authentication methods.
  • Lightweight and Efficient Application Protocols (LEAP)

Wired or Wireless Network Connectivity

Absolute flexibility in today's network environments
A key benefit of the EB-1735W is its ability to be wirelessly connected to your laptop or PC in any of three different ways.

Wireless connection to PCs and laptops can be done in seconds with ?Quick Wireless Connection? using the USB wireless key included with the projector. Simply plug the USB wireless key into the PC or lap top and the wireless connection is made automatically ? no need to wrestle with set up or connection screens.

The EB-1735W projectors are also compatible with the Windows Vista Network Projector function, which enables full PC to projector functionality in just three clicks of a mouse.

The EB-1735W incorporate Epson?s exclusive EasyMP technology with network capability and multi-screen display allowing up to four projectors to be connected wirelessly to just one computer, thus creating larger, panoramic or split-screen displays, or simultaneous display of the output from four different applications. Contributing significantly to the EB-1735W's high performance when operating in a wireless* network environment is the Epson NS Connection Software, designed specifically to improve the compression and decompression of data; resulting in superb image quality and transfer speed. Using Epson's NS Connection wireless mode the EB-1735W support 802.11a/b/g protocols, achieving wireless transfer rate of up to 54Mbps.

Note*: EMP NS Connection, *EMP Monitor or *EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
* EMP Monitor or *EMP Slidemaker2 software does not support Mac OS.

Low Fan Noise

The EB-1735W allows you to concentrate on the presentation not the projector, with fan noise as low as 30dB.

Multi-Screen Display

A useful feature of the EB-1735W  is the versatile multi–screen display feature. By taking advantage of the PC and Macintosh operating systems' multitasking capabilities, a single computer can be used to control — simultaneously — up to four EB-1735W's, with each one displaying a separate application.

In education and corporate presentations, the EB-1735W's multi–screen display feature represents an enormous step forward in providing presentations that deliver enormous impact for maximum effect.

Connectivity

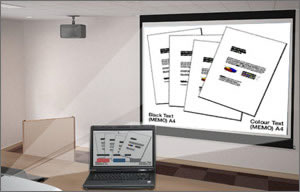

Presenter View

With the EasyMP NS ” Presenter View” function you can project a Powerpoint slide image on the screen while at the same time viewing presentation notes and operating buttons to go forward and back between slides on your computer monitor.

2000:1 Contrast Ratio
With a contrast ratio of 2000:1, the EB-1735W projects bright scenes with ultra bright whites, and dark scenes with rich blacks. Underpinning the projector's ability to regulate the brightness and contrast of every scene is the advanced Auto Iris.
Using the Auto Iris function, the
EB-1735W controls and adjusts lamp brightness levels 60 times every second. When the projector is displaying a light scene, the iris is opened to allow more light to pass through to the LCD panels, resulting in a bright image. For dark scenes, the iris opening is reduced, delivering richer blacks than are possible with less advanced systems.
Portable projection power

There can be little doubt that with a 3000 ANSI lumens output and weighing in at just 1.8kg, the EB-1735W is an ideal projector for presenters on the move or installed in a high profile boardroom. Regardless of its compact size, the EB-1735W packs an enormous number of high performance features and functions typically found only in larger projectors. Including a durable stylish carry bag and backed by legendary Epson reliability, this is undoubtedly the projector for those who refuse to compromise on power and functionality.

PC-Free Presentation
Total freedom to present without the need for a connected computer

Connect a USB memory device  to project pictures, MPEG2/MPEG4/WMV files and presentations without the need for a PC — it's that simple. True projection portability requires more than just freedom from the need to create a projector to PC connection, which is why the EB-1735W provides full industry USB memory device support.

Convert your PowerPoint® presentation using the Epson EMP Slide Maker2 software provided, save it to a USB memory device, and true projection portability becomes a reality. Epson's powerful PC Free software, built in to the projector, lets you take control of your presentations and leave your PC or notebook behind.

High Brightness

Up to 3000 ANSI lumens for brilliant image projection

With its 3000 ANSI lumens in high brightness mode, the EB-1735W delivers brilliant presentation quality, even in the brightest room. For longer lamp life the Brightness level can be reduced to 1900 ANSI Lumens. The EB-1735W is designed with features to ensure a "best fit" for any situation.


Movie Sending
MPEG2 Video Performance

 Whether in a corporate meeting room, a school drama faculty or even an advertising studio, the EB-1735W provides an outstanding MPEG2 video experience. Utilising advanced high performance file transfer technology built–in to the unit, MPEG2 files can be wirelessly transferred directly to the projector for high quality and — importantly — full screen video display.

Instant Off and Quick Start up

Shut off the power, put away the projector, and go to your next presentation. It's that simple, there is no waiting time associated with EB-1825 when you are on the move. When starting the projector there is only 5 seconds between pressing the “power” button and the projection of the start up screen .

A/V Mute Slide

You can stop and resume presentations easily by opening and closing the A/V mute slide. It will automatically change to the low fan noise mode when the slide is closed. This function enables you to give more effective presentations by allowing you to mute the image and draw the audience's attention elsewhere.

Wide and powerful images

With the increase in widescreen viewing the EB-1735W features an original widescreen picture that automatically detects and resizes any aspect ratio (4:3/16:10/16:9). More horizontal space allows you to use a larger surface to project wide spreadsheets, presentations, photos, corporate videos & widescreen interactive whiteboards.

4000 Hour Lamp
At only $399 RRP the E–TORL lamp has a longer estimated life of between 3000* and 4000* hours.
*Subject to operation and environmental conditions.



Specifications
PRODUCT TYPE Portable Multimedia Projector
PRODUCT NAME EB-1735W
PRODUCT CODE V11H270053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.74 inch with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number (1280 x 800) x 3
  Native resolution WXGA
  Aspect ratio 16:10
  Pixel arrangement Stripe
  Refresh Rate 50Hz-72Hz
PROJECTION LENS Type Manual zoom / focus
  F-number 1.58 - 1.68
  Focus length 16.1 – 19.34mm
  Zoom ratio 1 - 1.2
  Offset 7.6:1
  Type 170 W UHE
  Optical System Dichroic Mirror Separation & Prism Combine Method

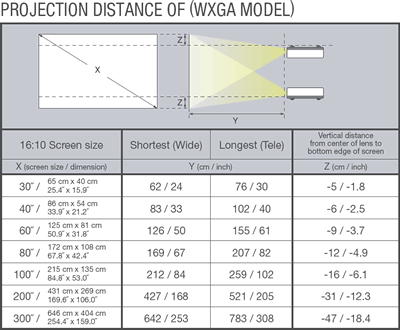

SCREEN SIZE (PROJECTED DISTANCE) 30 to 300 inch [0.76 to7.83m] (Zoom: Tele),
30 to 300 inch [0..62 to 6.82m] (Zoom: Wide)
60" screen 1.26m – 1.55m
BRIGHTNESS
  High Brightness Mode 3000 ANSI lumens
(Colour mode: Game, Zoom: Wide)
  Low Brightness Mode 1900 ANSI lumens
(Colour mode: Game, Zoom: Wide)
CONTRAST 400:1, 2000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY 89% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker) 1W monaural
FUNCTION Pointer, User Logo, A/V mute, Freeze, E Zoom, Help
COLOUR MODES PC: Photo, Presentation, Theatre, Game, sRGB, Blackboard, Custom
Video: Sports, Presentation, Theatre, Game, sRGB, Blackboard, Custom
EFFECTIVE SCANNING FREQUENCY RANGE
PIXEL CLOCK 13.5MHz to 162MHz
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal
height ADJUSTER Front-centre
TILT ANGLE 0 to 12 degrees
KEYSTONE CORRECTION Vertical: -30 to +30 degrees (Zoom: Tele)
AUTO KEYSTONE CORRECTION Vertical: -30 to +30 degrees (Zoom: Tele)
Source Search YES
AUTO DETECTION OF RGB / YCbCr YES
MULTI SCREEN COLOUR ADJUSTMENT YES
OPERATION PANEL PROTECTION FUNCTION YES
  YES
  (Protection of User logo, Time lock, Network)
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1280 x 800 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
VIDEO INPUT TERMINAL   D-sub 15pin x 1 Blue-moulding
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Audio signal 500mVrms / 47Kohm
VIDEO INPUT TERMINAL   Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)

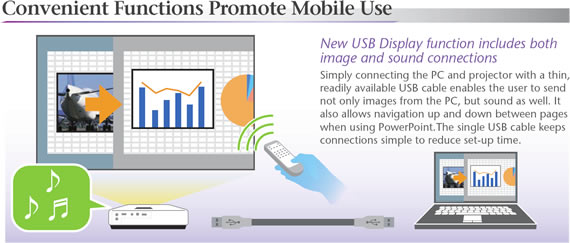

USB Display
AUDIO I/O
AUDIO SIGNAL   500mVrms / 47Kohm
AUDIO TERMINAL   Stereo mini jack x 1
(Audio In or Out are selectable on OSD menu)
(Audio Out is available via EasyMP)
CONTROL I/O
USB I/O I/O terminal Type B x1 (for mouse control)
Type A x 1 ( for IM-X )
USB I/O Type Type A x 1 ( Special I/O )
  Supported Wireless LAN Standard accessory
  Supported Ethernet Optional Unit V12H005M02
OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F), (20% - 80% Humidity)
Thermal shutdown > 45 degree C
OPERATING ALTITUDE 0m to 2286m < 0ft to 7500ft >
(over 1500m / 4,921ft with high altitude mode)
DIRECT Power On Yes
COOL-DOWN PERIOD Instant off
START-UP PERIOD Approx. 5 seconds
Exhaust direction side
POWER SUPPLY VOLTAGE 100-240V AC±10% 50/60Hz
POWER CONSUMPTION 240VAC 2.7-1.2A 50/60Hz
Lamp On 230W
DIMENSION
EXCLUDE FEET 202(D) x 284(W) x 65(H) mm
MAXIMUM DIMENSION 202(D) x 284(W) x 73(H) mm
WEIGHT Approx. 1.8Kg
FAN NOISE
LOW BRIGHTNESS MODE 30dB
HIGH BRIGHTNESS MODE 39dB
ACCESSORIES
POWER CORD 1.8m
COMPUTER CABLE 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male)
USB CABLE 3.0 m, USB A / B HI-SPEED
REMOTE CONTROL Compact type (Included)
BATTERY Alkaline AAA x 2
AUDIO ADAPTER 3.5mm stereo miniplug (male) <-> RCA jack x2 (female) 15cm
WIRELESS LAN ADAPTOR 802.11a/11b/11g (Included)
SOFT CARRYING CASE Included
LENS COVER In built
SOFTWARE INCLUDED (CD-ROM)
PASSWORD PROTECT STICKER Included
OWNER'S MANUAL Included
Easy MP Function
(wireless functionality)   802.11 a/b/g wireless connectivity
Projector control and projector management via network
Email notification
SNMP
PC Free
Network presentation (Network and USB)
Web Control
  Software EMP Monitor (for Windows*#)
EMP NS Connection (for windows*# and Mac)
EMP Slide Maker2 (for Windows*#)
  Security (Wireless LAN) WEP, WPA-PSK (TKIP), WPA-PSK(AES)
EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2,
PEAP/MS-CHAPv2, PEAP/GTC
LEAP EAP-East/MS-CHAPv2 EAP-Fast/GTC
* Software compatible with MS Vista available free of charge at epson.com.au from June 1st, 2007
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
WARRANTY
STANDARD WARRANTY 2 years,
6 Months or 750 hours on Lamp
Supplied Accessories
Carry Bag
Remote
Rear Panel

Optional Accessories

Extended Warranty

Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes
+ 3 Year On-Site Extended Warranty (up to 5 years total) $249
+ 2 Year On-Site Extended Warranty $179
+ 1 Year On-Site Extended Warranty $140

Viewsonic WPG-350 Wireless Presentation Gateway

Your Price:
$329

Pick Up Avail.

[More Info]

- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display


Premium VGA Monitor Cable (15HDM/15HDM)

5 metres
$29.95
10 metres
$59.95
15 metres
$69.95
20 metres
$89.95
30 metres
$110.95


Aus Wide Delivery: $15

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

. Features UL Approved Cabling
. Filters included on both ends cutting down on noise
. Maintains stronger signals using a shielded cabling run.
. Comes in 15pin D-sub format with Male to Male conectors

Click for more cables

Click to enlarge

Universal flush ceiling mount (205)

Your Price:
$149

Insured Delivery: $16
Pick Up Avail.

• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
Buy your new EB-1735W projector now, Contact Us today!

How to Buy
Get a Quote
View Cart
Delivery / Payment
Service
Returns Policy
Product Support


About Us
Who are we?
Testimonials
Contact Us


© GM Multimedia Pty. Ltd. All rights reserved. ABN: 82 119 523 723. GM Multimedia does not operate a showroom. All product information can be accessed by contacting our sales department. All brands and names are trademarks of their respective companies. Prices in $AUD and are GST inclusive. Prices subject to change without notice. Product images used on website are for illustration purposes only and may vary from the product description. Legal Notice & Disclaimer
