Epson EB-1725 LCD Ultra Portable Multimedia PROJECTOR - With Wireless & PC Free |
|
 |
 |
 |


 |


 |
FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE |
Epson EB-1725 Reviews |
|
|
"The Powerlite 1725 is an extremely portable projector in a class often referred to as micro-portable. Weighing in just under four pounds, it is also very small, with a footprint about the same size as a standard sheet of paper.
While the 1725 is highly portable, being both small and light, it is also an extremely versatile projector, and as a result, it will appeal to many businesses, government agencies and schools as a low cost, rather bright projector for permanent installation. "
|
|
Super sleek energy efficient 3LCD business projectors combining powerful performance with a range of easy to use functions in a sophisticated and stylish compact lightweight body.
Features:
- High 3000 Lumens Brightness
- Short Throw Lens
- Wireless with Easy Connect
- Quick connect USB port
- PC Free Presentations
- Light weight 1.8kg design
- Long lamp life, 4000 hours on eco mode
- Auto Keystone Correction
- New iris design offering a 2000:1 contrast for better images
- Instant off & Quick start up
 |
Advanced 3LCD technology
World–leading projector video display technology
At the heart of the EB-1725 is Epson's world–leading 3LCD technology. This projection system uses three individual LCD panels to display images that exhibit silky smooth movement and fresh, natural colours.
Bright, vibrant colours and unequalled image quality are characteristics of 3LCD technology, with the projector delivering outstanding results in any presentation environment.
Due to 3LCD's incredibly efficient use of light, projectors based on this technology are able to achieve quiet operating levels, exceptional clarity and flicker–free presentations. |
Light–efficient lamp technology E–TORL
Delivering brilliant light — all the time, every time
One of the crucial features delivered by the EB-1725 is its ability to provide up to 3000 ANSI lumens via incredibly efficient E–TORL (Epson Twin Optimised Reflection Lamp) technology. Designed to minimise light leakage — a primary cause of lamp inefficiency — and minimise light diffraction, E–TORL lamps combine an ellipsoidal reflector, spherical lens and hemispherical mirror. This combination ensures optimum light efficiency with minimal power consumption and heat generation.
|
|
 |
Environmentally Conscious Design
No use of Halogen fireproof chemicals for the the main body
Recycled paper used for packaging, no use of Styrofoam
Lead-free lens
Low power consumption and improved light efficiency
Reduced standby power consumption |
Advanced Wireless Security
Enterprise level wireless network and security
With projectors increasingly becoming a valuable tool for business and education, it is often important to control their use and of course, prevent theft. With the EB-1725 you can (if required) prevent operation without a correct password, set a time limit and protect the user logo in the start–up screen.
To ensure the EB-1725 provides the best possible fit with today's increasingly wireless environment, the projector has been designed with enterprise–level security features. Among the various security and encryption technologies incorporated within the projector are:
- Wired Equivalent Privacy (WEP) standard encryption scheme
- WiFi Protected Access–PreShared Key (WPA–PSK) security specification, often referred to as WPA "Home", which uses a key of 256 bits in length
- WiFi Protected Access–Extensible Authentication Protocol (WPA–EAP), sometimes referred to as WPA "Enterprise", which offers TLS (Transport Layer Security), TTLS (Tunnelled Transport Layer Security) and PEAP (Protected Extensible Authentication Protocol) connection and authentication methods.
- Lightweight and Efficient Application Protocols (LEAP)
Wired or Wireless Network Connectivity
Absolute flexibility in today's network environments
A key benefit of the EB-1725 is its ability to be wirelessly connected to your laptop or PC in any of three different ways.
Wireless connection to PCs and laptops can be done in seconds with ?Quick Wireless Connection? using the USB wireless key included with the projector. Simply plug the USB wireless key into the PC or lap top and the wireless connection is made automatically ? no need to wrestle with set up or connection screens. |
 |
The EB-1725 projectors are also compatible with the Windows Vista Network Projector function, which enables full PC to projector functionality in just three clicks of a mouse.
The EB-1725 incorporate Epson?s exclusive EasyMP technology with network capability and multi-screen display allowing up to four projectors to be connected wirelessly to just one computer, thus creating larger, panoramic or split-screen displays, or simultaneous display of the output from four different applications. Contributing significantly to the EB-1725's high performance when operating in a wireless* network environment is the Epson NS Connection Software, designed specifically to improve the compression and decompression of data; resulting in superb image quality and transfer speed. Using Epson's NS Connection wireless mode the EB-1725 support 802.11a/b/g protocols, achieving wireless transfer rate of up to 54Mbps.
Note*: EMP NS Connection, *EMP Monitor or *EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
* EMP Monitor or *EMP Slidemaker2 software does not support Mac OS. |
Low Fan Noise
The EB-1725 allows you to concentrate on the presentation not the projector, with fan noise as low as 30dB. |
 |
 |
Multi-Screen Display
A useful feature of the EB-1725 is the versatile multi–screen display feature. By taking advantage of the PC and Macintosh operating systems' multitasking capabilities, a single computer can be used to control — simultaneously — up to four EB-1725's, with each one displaying a separate application.
In education and corporate presentations, the EB-1725's multi–screen display feature represents an enormous step forward in providing presentations that deliver enormous impact for maximum effect. |
Connectivity

Presenter View
With the EasyMP NS ” Presenter View” function you can project a Powerpoint slide image on the screen while at the same time viewing presentation notes and operating buttons to go forward and back between slides on your computer monitor. |
 |
 |
2000:1 Contrast Ratio
With a contrast ratio of 2000:1, the EB-1725 projects bright scenes with ultra bright whites, and dark scenes with rich blacks. Underpinning the projector's ability to regulate the brightness and contrast of every scene is the advanced Auto Iris.
Using the Auto Iris function, the |
EB-1725 controls and adjusts lamp brightness levels 60 times every second. When the projector is displaying a light scene, the iris is opened to allow more light to pass through to the LCD panels, resulting in a bright image. For dark scenes, the iris opening is reduced, delivering richer blacks than are possible with less advanced systems. |
Portable projection power
There can be little doubt that with a 3000 ANSI lumens output and weighing in at just 1.8kg, the EB-1725 is an ideal projector for presenters on the move or installed in a high profile boardroom. Regardless of its compact size, the EB-1725 packs an enormous number of high performance features and functions typically found only in larger projectors. Including a durable stylish carry bag and backed by legendary Epson reliability, this is undoubtedly the projector for those who refuse to compromise on power and functionality. |
 |
 |
PC-Free Presentation
Total freedom to present without the need for a connected computer
Connect a USB memory device to project pictures, MPEG2/MPEG4/WMV files and presentations without the need for a PC — it's that simple.
True projection portability requires more than just freedom from the need to create a projector to PC connection, which is why the EB-1725 provides full industry USB memory device support. |
Convert your PowerPoint® presentation using the Epson EMP Slide Maker2 software provided, save it to a USB memory device, and true projection portability becomes a reality. Epson's powerful PC Free software, built in to the projector, lets you take control of your presentations and leave your PC or notebook behind. |
High Brightness
Up to 3000 ANSI lumens for brilliant image projection
With its 3000 ANSI lumens in high brightness mode, the EB-1725 delivers brilliant presentation quality, even in the brightest room. For longer lamp life the Brightness level can be reduced to 1900 ANSI Lumens. The EB-1725 is designed with features to ensure a "best fit" for any situation. |

|
 |
Movie Sending
MPEG2 Video Performance
Whether in a corporate meeting room, a school drama faculty or even an advertising studio, the EB-1725 provides an outstanding MPEG2 video experience. Utilising advanced high performance file transfer technology built–in to the unit, MPEG2 files can be wirelessly transferred directly to the projector for high quality and — importantly — full screen video display. |
Instant Off and Quick Start up
Shut off the power, put away the projector, and go to your next presentation. It's that simple, there is no waiting time associated with EB-1825 when you are on the move. When starting the projector there is only 5 seconds between pressing the “power” button and the projection of the start up screen . |
 |
 |
A/V Mute Slide
You can stop and resume presentations easily by opening and closing the A/V mute slide. It will automatically change to the low fan noise mode when the slide is closed. This function enables you to give more effective presentations by allowing you to mute the image and draw the audience's attention elsewhere. |
4000 Hour Lamp
At only $399 RRP the E–TORL lamp has a longer estimated life of between 3000* and 4000* hours.
*Subject to operation and environmental conditions.
|
Specifications
PRODUCT TYPE |
Portable Multimedia Projector |
PRODUCT NAME |
EB-1725 |
PRODUCT CODE |
V11H268053 |
PROJECTION SYSTEM |
RGB Liquid Crystal Shutter Projection System |
PROJECTION METHOD |
Front / Rear / Ceiling Mount |
SPECIFICATION OF MAIN PARTS |
LCD |
Size |
0.70 inch with MLA |
|
Driving method |
Poly-Silicon TFT Active Matrix |
|
Pixel number |
(1024 x 768) x 3 |
|
Native resolution |
XGA |
|
Aspect ratio |
4:3 |
|
Pixel arrangement |
Stripe |
|
Refresh Rate |
50Hz-72Hz |
PROJECTION LENS |
Type |
Manual zoom / focus |
|
F-number |
1.58 - 1.68 |
|
Focus length |
16.1 – 19.34mm |
|
Zoom ratio |
1 - 1.2 |
|
Offset |
6:1 |
|
Type |
170 W UHE |
|
Optical System |
Dichroic Mirror Separation & Prism Combine Method |

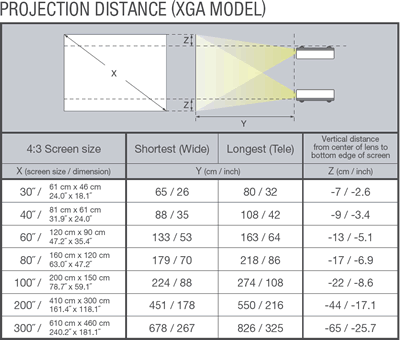

SCREEN SIZE (PROJECTED DISTANCE) |
30 to 300 inch [0.80 to 8.26m] (Zoom: Tele),
30 to 300 inch [0.65 to 6.78m] (Zoom: Wide)
60" screen 1.33m -1.63m |
BRIGHTNESS |
|
High Brightness Mode |
3000 ANSI lumens
(Colour mode: Game, Zoom: Wide) |
|
Low Brightness Mode |
1900 ANSI lumens
(Colour mode: Game, Zoom: Wide) |
CONTRAST |
400:1, 2000:1 (Auto Iris On) |
BRIGHTNESS UNIFORMITY |
89% (Typ.) |
COLOUR REPRODUCTIVITY |
Full colour (16.77 million colours) |
SOUND OUTPUT (Internal speaker) |
1W monaural |
FUNCTION |
Pointer, User Logo, A/V mute, Freeze, E Zoom, Help |
COLOUR MODES |
PC: Photo, Presentation, Theatre, Game, sRGB, Blackboard, Custom
Video: Sports, Presentation, Theatre, Game, sRGB, Blackboard, Custom |
EFFECTIVE SCANNING FREQUENCY RANGE |
PIXEL CLOCK |
13.5MHz to 162MHz |
HORIZONTAL |
15KHz to 92KHz |
VERTICAL |
50Hz to 85Hz |
ADJUSTMENT FUNCTION |
PROJECTOR / REMOTE CONTROL |
Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal |
height ADJUSTER |
Front-centre |
TILT ANGLE |
0 to 12 degrees |
KEYSTONE CORRECTION |
Vertical: -30 to +30 degrees (Zoom: Tele) |
AUTO KEYSTONE CORRECTION |
Vertical: -30 to +30 degrees (Zoom: Tele) |
Source Search |
YES |
AUTO DETECTION OF RGB / YCbCr |
YES |
MULTI SCREEN COLOUR ADJUSTMENT |
YES |
OPERATION PANEL PROTECTION FUNCTION |
YES |
|
YES |
|
(Protection of User logo, Time lock, Network) |
ANALOGUE RGB I/O |
DISPLAY PERFORMANCE |
Native |
1024 x 768 pixels |
INPUT SIGNAL |
Signal type |
Separate signal |
|
Video signal |
Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
|
Sync. signal |
Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
|
Audio signal |
500mVrms / 47K-ohm |
VIDEO INPUT TERMINAL |
|
D-sub 15pin x 1 Blue-moulding |
VIDEO I/O |
DISPLAY PERFORMANCE |
|
NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern) |
INPUT SIGNAL |
Video standard |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
|
Video signal |
Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
|
Audio signal |
500mVrms / 47Kohm |
VIDEO INPUT TERMINAL |
|
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
USB Display |
AUDIO I/O |
AUDIO SIGNAL |
|
500mVrms / 47Kohm |
AUDIO TERMINAL |
|
Stereo mini jack x 1
(Audio In or Out are selectable on OSD menu)
(Audio Out is available via EasyMP) |
CONTROL I/O |
USB I/O |
I/O terminal |
Type B x1 (for mouse control)
Type A x 1 ( for IM-X ) |
USB I/O |
Type |
Type A x 1 ( Special I/O ) |
|
Supported Wireless LAN |
Standard accessory |
|
Supported Ethernet |
Optional Unit V12H005M02 |
OPERATING TEMPERATURE |
5°C to 35°C (41°F to 95°F), (20% - 80% Humidity)
Thermal shutdown > 45 degree C |
OPERATING ALTITUDE |
0m to 2286m < 0ft to 7500ft >
(over 1500m / 4,921ft with high altitude mode) |
DIRECT Power On |
Yes |
COOL-DOWN PERIOD |
Instant off |
START-UP PERIOD |
Approx. 5 seconds |
Exhaust direction |
side |
POWER SUPPLY VOLTAGE |
100-240V AC±10% 50/60Hz |
POWER CONSUMPTION |
240VAC 2.7-1.2A 50/60Hz
Lamp On 230W |
DIMENSION |
EXCLUDE FEET |
202(D) x 284(W) x 65(H) mm |
MAXIMUM DIMENSION |
202(D) x 284(W) x 73(H) mm |
WEIGHT |
Approx. 1.8Kg |
FAN NOISE |
|
LOW BRIGHTNESS MODE |
30dB |
HIGH BRIGHTNESS MODE |
39dB |
ACCESSORIES |
POWER CORD |
1.8m |
COMPUTER CABLE |
1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) |
USB CABLE |
3.0 m, USB A / B HI-SPEED |
REMOTE CONTROL |
Compact type (Included) |
BATTERY |
Alkaline AAA x 2 |
AUDIO ADAPTER |
3.5mm stereo miniplug (male) <-> RCA jack x2 (female) 15cm |
WIRELESS LAN ADAPTOR |
802.11a/11b/11g (Included) |
SOFT CARRYING CASE |
Included |
LENS COVER |
In built |
SOFTWARE |
INCLUDED (CD-ROM) |
PASSWORD PROTECT STICKER |
Included |
OWNER'S MANUAL |
Included |
Easy MP Function |
(wireless functionality) |
|
802.11 a/b/g wireless connectivity
Projector control and projector management via network
Email notification
SNMP
PC Free
Network presentation (Network and USB)
Web Control |
|
Software |
EMP Monitor (for Windows*#)
EMP NS Connection (for windows*# and Mac)
EMP Slide Maker2 (for Windows*#) |
|
Security (Wireless LAN) |
WEP, WPA-PSK (TKIP), WPA-PSK(AES)
EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2,
PEAP/MS-CHAPv2, PEAP/GTC
LEAP EAP-East/MS-CHAPv2 EAP-Fast/GTC
* Software compatible with MS Vista available free of charge at epson.com.au from June 1st, 2007
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit. |
WARRANTY |
STANDARD WARRANTY |
2 years,
6 Months or 750 hours on Lamp |
