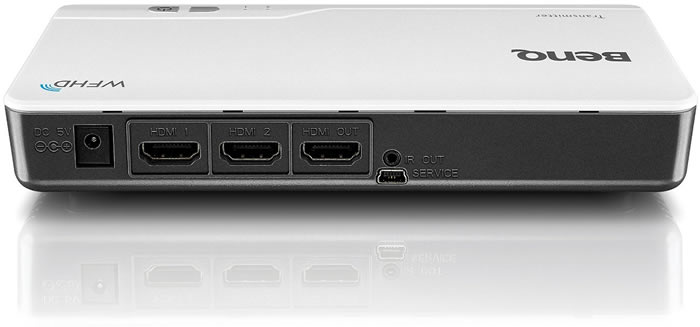

The BenQ Wireless Full HD Kit WDP01
Wireless Full HD Kit WDP01 works together with any 1080P projector with HDMI.
Some BenQ models include the W1090, W1120, W2000,
W1110, W3000, W1070+ W1080ST+, W1350, W1070, W1080ST, W7500, W1500, W1400, W1090, W8000) to make easy and fast wireless projection.
Cable-free, One-Stop Home Entertainment
New-Generation Wireless Full HD Kit
Designed to Give You More Freedom and Less Hassle
Together with BenQ’s new-generation Wireless Full HD Kit, the Projector frees you from wiring troubles, placement hassles, as well as extra remodeling costs. Available as an optional accessory, this powerful kit enables the Projector to stream uncompressed, stunning 1080p Full HD content wirelessly . So you can kick back, relax and enjoy your favorite movies and games!
‧ Absolute Convenience | One-Time Setup
Only a few steps are required to set up the kit once and for all to give you plug-and-play convenience like no other. Once everything is connected correctly, the transmitter and the receiver will automatically pair up with the Projector the first time you power them on – and turn on to re-connect with the projector every time after. To save you from all the cable trouble, the customized receiver box can be easily mounted to the right side of the projector and electronically charged by the projector instead of taking up another power socket. It just doesn’t get easier than this.
‧Unparalleled Transmission Technology| Fluid Cross-Room Streaming
The Projector comes with a wireless coverage of up to 30 meters (100 feet) in distance at line of sight and four built-in antennas to ensure the best streaming quality through cabinet doors and from one room to the next. The home projector also delivers a latency-free performance ideal for playing fast-action and motion-sensing games. Time to get ready for high quality audiovisual enjoyment and the smoothest gaming experience in the living room or in the privacy of your bedroom.
*Transmission distance depends on actual environment. Stated distance is based on line-of-sight measurement. Structures constructed of steel, wood, concrete, or brick may decrease transmission distance.
‧Zero Interference | DFS Anti-Interference Performance
With a Dynamic Frequency Selection (DFS) mechanism to automatically switch between channels when encountering signal interference, an incredibly stable HD streaming quality is all you’ll get.
Specifications
| Wireless Operating Frequencies |
4.9~ 5.9GHz (Include non-DFS and DFS Frequency Bands) |
| Antenna |
High performance internal antennas x 4 |
| System Latency |
<1ms |
| Transmission Distance |
The maximum video transmission range is 30 meters (100 feet)*
Line of sight (LOS) scenarios (The minimum range is 2 meters) |
| Audio Bit Rate Support |
Up to 6 Mbps audio stream:
Support AC3 and DTS
2 Channel PCM : 16~24 bits audio sample with 32~96KHz sampling rate
|
| Interface |
Transmitter Receiver
A/V
HDMI Input x2 N/A
HDMI Output x2 N/A
IR Control
IR Sensor Yes Yes
IR Blaster Extender Yes (2.5mm Jack) N/A
IR Sensor Extender N/A Yes
Switches
Power Yes Yes
Source Yes Yes
LEDs
Power X1 (Red/Blue) X1 (Red/Blue)
Source X2 (Blue) X2 (Blue)
Signal Status N/A OSD displayed
Power
Input 5V DC Jack 5V mini USB
Dimensions (mm³) 182(W) x 96.5(L) x 31.5(H) 95(W) x 95(L) x 31.5(H) mm |
| Power Supply |
100~ 240V AC in, 5V 2A DC out Power Adaptor |
| Operating Temperature |
0°~40°C |
| Package Contents |
Color Carton
WHDI Tramsmitter / Receiver
Remote Control (w/ Battery x 2) x 1
IR Blaster Cable x 1
Mounting holder x 2
Anchor x 2 (one for fixing Rx bottom case, one for fixing projector bottom case)
Velcro x 1
Mini USB Cable (100cm) + TX Power Adaptor (w/ multi-nation plugs - US/UK/China/EU/TW)
Mini USB Cable (45cm) + RX Power Adaptor (w/ multi-nation plugs - US/UK/China/EU/TW)
HDMI Cable (45cm) x1
User Manual CD (24L)
Quick Start Guide (6L) |
|
