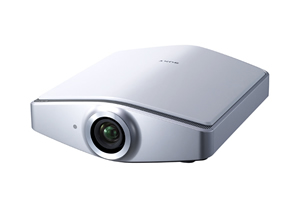

SONY VPLVW100 HIGH DEFINITION HOME CINEMA PROJECTOR




DISCONTINUED
For Current Models Click Here

WIDESCREEN HIGH DEFINITION SXRD HOME PROJECTOR - VPLVW100
The Ultimate in Home Theatre Projectors
The VPLVW100 is a next generation Home Theatre projector that will blow you away with its amazing film-like picture quality. Utilizing the exciting new Sony developed SXRD (Silicon X-Tal Reflective Display) technology it delivers unrivalled, high-quality visuals through its native full High Definition resolution of 1920x1080 pixels and an amazing contrast ratio of up to 15000:1 - the highest in the projector industry

Also incorporated into the VPLVW100 is ARC-F (All Range Crisp Focus) lens system which delivers a clear, crisp & undistorted image across the entire screen - even on the edges. An Advanced Iris function dynamically adjusts the light level of the xeon lamp to suit the on-screen image ensuring deeper blacks & better contrast ratios in dark scenes and increased brightness in lighter scenes. Real Colour Processing allows for individual colour adjustment to suit individual tastes and a horizontal & vertical Lens Shift function makes for more flexible placement of the projector.

Its stylish white chassis will compliment the modern home and blends seamlessly into the ceiling if mounted using the optional white ceiling mount. Its ultra quiet fan which produces a mere 22dB (another industry first) will ensure whisper quiet operation during your favourite movies!


SIDE PANEL


OUR SAY
Sony's VPLVW100 is without a doubt the best high definition home projector we have ever sighted. Just when we thought it could not get much better than Sony's VPLHS60 or Panasonic's PT-AE900E we finally got our hands on one of these beauties and... wow.

Similar to Panasonic's home theatre projector, the VW100 uses lens shift technology that actually allows you to place the projector at a horizontal or vertical angle to the screen and still get a great image without any possible quality issues that can occasionally occur with digital keystone correction.

This new release is also the quietest projector we have ever tested, its literally barely audible. Plus it has been designed to look absolutely awesome when ceiling mounted in your home.

Surprisingly Sony has manage to offer a 1920 x 1080 Native Resolution compared to 1280 x 720 for most 16:9 home theatre projectors. This higher resolution results in the highest quality and most detailed image we have ever seen on a home cinema digital projector.



Specifications

Optical Specs

  • Resolution: 1920 x 1080 native pixel resolution
  • Panel type: 0.61" SXRD panels x 3 (each having 2,073,600 pixels)
  • Pixel response time: 5ms
  • Pixel size: 7 microns high with 0.35 micron separating each pixel
  • Contrast ratio: 3,000:1 to 15,000:1
  • Projection system: 3x SXRD panels with 1 lens
  • Lens type: High Resolution All Range Crisp Focus (ARC-F)
  • Lens zoom range: 1.8 x powered zoom
  • Lens shift: 0.65 x Screen Height (Up or Down) 0.067 x Screen Width (L or R) from dead centre
  • Screen coverage: 40" - 300" (widescreen viewable area measured diagonally)
  • Lamp type: Xenon
  • Lamp wattage: 400W Xenon Lamp (LMPH400)
  • Expected Lamp Life: 2500 Hrs
  • Fan noise level: 22 dB due to silicon nipple insulating joints holding fan, optimized shape of fan blades & a non-contact fan shaft mechanism

Signals Accepted

  • Video: DTV - 480i,480p,576i,575p,720p,1080i, 1080p (HDMI & DVI-D only), 15khz RGB/Component, Progressive component,Y/C, Composite
  • Computer: Up to 1920 x 1080 @ fV 60Hz, fH: 19 to 72 kHz, fV: 48 to 92 Hz
  • Colour systems supported: PAL,PAL-M, PAL-N, NTSC, NTSC4.43 & SECAM

Connections

  • HDMI input: x 1
  • DVI-D input: x 1
  • 15-pin D-sub input: x 1
  • Component video input: x 1
  • S-video input: x 1
  • Composite video input: x 1
  • Ethernet RJ-45 10/100 input: x 1
  • RS232C D-sub 9 pin input: x 1
  • 12V minijack trigger input: x 1

Throw Distances

  • (16:9) 40" : 1.2 - 2.1 m
  • (16:9) 60" : 1.8 - 3.2 m
  • (16:9) 80" : 2.5 - 4.2 m
  • (16:9) 100": 3.1 - 5.3 m
  • (16:9) 120": 3.7 - 6.4 m
  • (16:9) 150": 4.7 - 8.0 m
  • (16:9) 180": 5.6 - 9.6 m
  • (16:9) 200": 6.2 - 10.7 m
  • (16:9) 250": 7.8 - 13.4 m
  • (16:9) 300" : 9.4 - 16.1 m

General

  • Cabinet colour: White
  • Power consumption: 610W (Max) 10W (Standby)
  • Power requirements: AC 100 to 240V, 50/60 Hz
  • Dimensions: 496(W) x 574(H) x 175(D) mm
  • Weight: 19 Kgs (Approx)
