Panasonic PT-MZ680 Large Venue Full HD Laser Projector

Panasonic PT-MZ680 SOLID SHINE Laser: Engineered for Professionals, by Professionals

The Panasonic PT-MZ680 laser projector offers a whopping 8000 lumens perfect for large format projection or dealing with well lit large venue environments. The long life laser light source is purpose built for heavy usage with a life up to 24,000 hours and a warranty of up to 5 years/10,000 hours. This is ideal to avoid lamp costs and down time as well as being handy in hard to access installations saving on technicians and scissor lifts. The PT-MZ680 offers amazing flexibility with a high zoom lens as standard and optional lenses for longer or shorter throw installations. It also features 360 degree installation and portrait projection so can be installed pointing down or sideways without worrying about overheating. With both lens shift and keystone correction the PT-MZ680 is also perfect for off centre installations.

Lens Options & Throw Distances

Expand	Lens	Throw Ratio	Price
	ET-ELU20	0.33-0.353:1	$10999
	Min Image : 100" Max Image : 400" Throw Distance Guide 120" 16:10 : 0.85-0.91m 150" 16:10 : 1.06-1.10m 200" 16:10 : 1.42-1.52m
	ET-ELW21	0.8:1	$1849
	Min Image : 40" Max Image : 400" Throw Distance Guide 120" 16:10 : 2.07m 150" 16:10 : 2.58m 200" 16:10 : 3.45m
	ET-ELW22	0.789-0.987:1	$2599
	Min Image : 40" Max Image : 400" Throw Distance Guide 120" 16:10 : 2.04-2.55m 150" 16:10 : 2.55-3.18m 200" 16:10 : 3.40-4.25m
	ET-ELW20	1.3-1.7:1	$1849
	Min Image : 40" Max Image : 400" Throw Distance Guide 120" 16:10 : 3.37-4.39m 150" 16:10 : 4.20-5.49m 200" 16:10 : 5.60-7.32m
	Included	1.6-2.76:1	$0
	Included with projector Min Image : 40" Max Image : 400" Throw Distance Guide 120" 16:10 : 4.20-7.1m 150" 16:10 : 5.20-8.90m 200" 16:10 : 6.89-11.89m
	ET-ELT22	2.8-4.6:1	$1849
	Min Image : 40" Max Image : 400" Throw Distance Guide 120" 16:10 : 7.24-11.89m 150" 16:10 : 9.05-14.85m 200" 16:10 : 12.07-19.81m
	ET-ELT23	4.49-7.21:1	$1849
	Min Image : 40" Max Image : 400" Throw Distance Guide 120" 16:10 : 11.61-18.63m 150" 16:10 : 14.51-23.28m 200" 16:10 : 19.34-31.06m

Well-Balanced Picture Quality

Tuned for Optimal Brightness and Color

Refined optical engine delivers an ideal balance of high brightness and vivid color for clear visibility in well-lit rooms. With a selection of display modes optimized to suit different kinds of content and screen surfaces, and dynamic optimization technologies that continuously adjust the image to suit environment and content, your audience will enjoy comfortably visible pictures without turning the room lights off.

Dynamic Contrast

To best suit the projected content or operating environment, Dynamic Contrast analyzes the input signal frame-by-frame and directly adjusts light-source output according to the contrast requirements of each scene. As well as increasing overall contrast precision, Dynamic Contrast more accurately reproduces scenes where light and dark images frequently interchange.

Daylight View Basic

Daylight View Basic helps deliver sharp, clear images by enhancing detail particularly in dark areas of the image that are otherwise difficult to see in brightly lit rooms. A built-in sensor measures ambient light while Daylight View Basic optimizes halftone color and adjusts brightness according to the surrounding level of illumination.

Detail Clarity Processor 4

Proprietary circuitry analyzes individual video frames to clarify areas of each image containing fine details. Algorithms extract data from four frequency bands of the signal, sharpening outlines, correcting contours, and reducing ringing noise for increased text definition and clearer detail resolution in video and graphics.

Flexible Design Fits Any Space

Unobtrusive Cabinet Blends into the Room

Elegant new cabinet styling helps these projectors blend into the room environment. Use of black for the recessed base makes the side and front panels appear slimmer. By combining unobtrusive styling with quiet operation and clear image visibility, the projection (not the projector) becomes the focus of attention. All-black versions are available for easy concealment in dark environments, such as museums.

Quiet Operation Increases Immersion

With lessons, meetings, conferences, and other events increasingly being held online, it’s important that noise from the projector doesn’t draw attention away from the presentation. Silent projection helps people focus, whether they’re in the room or participating remotely. PT-MZ680 Series includes a Quiet Mode enabling almost inaudible 26 dB* (PT-MZ780/MZ680) or 27 dB* (PT-MZ680) operation, helping these projectors fit unobtrusively into the installation environment while keeping attention focused on the presentation.
* Operating noise is 32 dB in Normal Mode/Eco Mode (PT-MZ780/MZ680) and 34 dB in Normal Mode/Eco Mode (PT-MZ680).

Optional Powered Lenses Including New Ultra-Short-Throw Zoom Lens

PT-MZ680 Series ships with a 1.61–2.76:1 powered zoom lens and supports a selection of optional fixed and zoom lenses to suit your preferred projector location. These optional lenses include a new zero-offset ET-ELU20 Ultra-Short-Throw Zoom Lens making this projector series not only a great fit for education and corporate use, but also for museum exhibition. When paired with a compatible powered lens, projectionists can perform zoom, focus, and V/H lens-shift adjustments using the projector remote control or Smart Projector Control app*.
* Some app functions are not supported by the PT-MZ680 Series. Check device compatibility at App Store or the Google Play Store.

Contrast Sync and Shutter Sync

Contrast Sync synchronizes Dynamic Contrast value among multiple projectors connected via serial in/out terminals. This function increases the uniformity of individual images in a multi-screen system and reduces the visibility of overlapping areas of adjacent images for a seamless widescreen image. Shutter Sync, meanwhile, synchronizes shutter on/off timing for professional fade-in/fade-out effects.

Geometry Manager Pro Software (Geo Pro Software) with Free Grid

Geo Pro software makes edge-blending calibration and screen geometry adjustments via Windows® PC easy. Overlay Free Grid on the projected image to reshape distorted areas by adjusting the position of node or V/H line control-points. Grids of between 2 x 2 and 11 x 11 lines are selectable, and work progress is saved automatically so you can move freely between grid resolutions. Grid and control-point colors are selectable to ensure clear visibility over the projected image. Note: some functions available in Geo Pro software are not supported by the PT-MZ680 Series. Download Geometry Manager Pro free from the PASS website.

Built-in Geometric Adjustment Functions

Geometric Adjustment is a suite of functions built into the projector operated via the projector remote control that allow installers to correct distortion when images are projected at an angle, onto curved screens, or over irregular screen surfaces. Correction extends to spherical, cylindrical, and other complex screen shapes without need of a connected PC. Maintain Aspect Ratio and independent Corner Adjustment simplify correction while the ability to save image-adjustment data is useful whenever correction settings needs to be disabled and reapplied, and for saving work progress as an adjustment profile is created.

Supports 4K Signal Input to Fit Your System Infrastructure

PT-MZ680 Series is compatible with 4K input signals, accepting 4K/60p video* via HDMI inputs or DIGITAL LINK terminal. This capability is useful when integrating the projectors into existing 4K-ready system infrastructure or when it’s necessary to distribute the same 4K signal to a network of endpoints with different display resolutions without having to use an external converter or to reencode the source.
* YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK. Signal resolutions differing from projector resolution are converted to the projector’s resolution (1920 x 1200 dots).

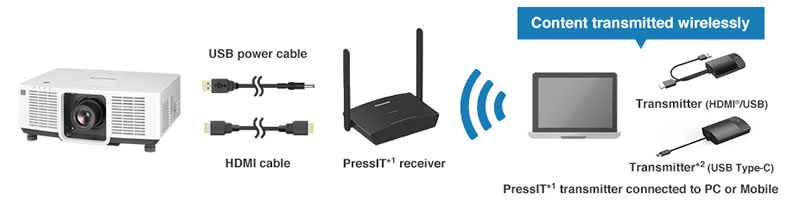

USB-DC Output Supports Wireless Presentation System PressIT

The projectors include a 5 V/2 A USB-DC terminal to power optional Wireless Presentation PressIT*1 or an HDMI network streaming device so that groups can easily share content to the big screen from their PCs or mobile devices. PressIT comprises a transmitter that works with Windows PC, Mac, and mobile devices, and a receiver that connects to your projector’s HDMI port. The transmitter connects to receiver wirelessly with a single press and allows users to display their device-screen at full size. You can also connect a supported network media streaming device via HDMI and USB for a neat, self-contained installation.
*1 Availability may vary by country or region. For more information on Wireless Presentation System PressIT, please click here.
*2 Device’s USB Type-C terminal requires support for DisplayPort™ ALT Mode (image output function) and DC power supply (5 V/0.9 A). Refer to product manual for more information. Android™ devices require a dedicated app.
Note: Accessories sold separately. Operation with third-party devices cannot be guaranteed.

Separate LAN and DIGITAL LINK Terminals

You can choose to control PT-MZ680 Series projectors via a dedicated LAN terminal or the HDBase-T™-based DIGITAL LINK connection. Both support 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron Connected™, AMX, and Extron® applications. With control enabled via LAN, DIGITAL LINK is free to transmit video over long cable runs of up to 150 m* (492 ft).
* 1080/60p signal transmission over distances up to 150 m (492 ft) requires CAT 5e or higher cable with optional ET-YFB200G DIGITAL LINK Switcher (not compatible with 4K signals) and the projector set to Long Reach Mode. Direct transmission is supported over distances up to 100 m (328 ft) for 1080/60p video signals or 50 m (164 ft) for 4K/60p video signals.

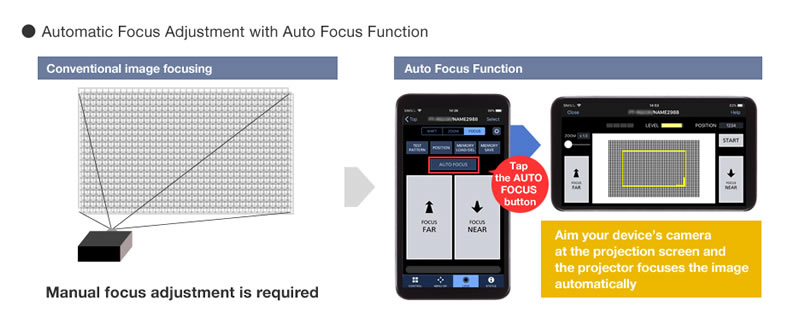

Works with Smart Projector Control App

Smart Projector Control is a remote-control app for iOS and Android™ devices that can be used to adjust, control, and monitor up to 64 projectors individually or simultaneously from anywhere within range of the wireless network. You can use the app to switch the unit on or off, select an input signal, and adjust the projector’s OSD menu settings via your device’s touchscreen while the projector is in standby or powered up with the shutter on. Projectionists can avoid delays by adjusting OSD settings via smartphone whenever OSD menu projection is inconvenient, such as immediately before a presentation starts. As well as enabling OSD menu operations, the app can be used to adjust lens settings, select test patterns, and focus the projection using your phone camera*1 from distances of up to 30 m*2 (98 ft) away. For more information, visit the Smart Projector Control website.

Note: some Smart Projector Control app functions are not supported on the PT-MZ680 Series. Check device compatibility at App Store or the Google Play Store.
*1 Some mobile devices do not support projector autofocus function.
*2 When projecting a 300-inch image. Maximum distance is 3 m (10 ft) for a 100-inch image.

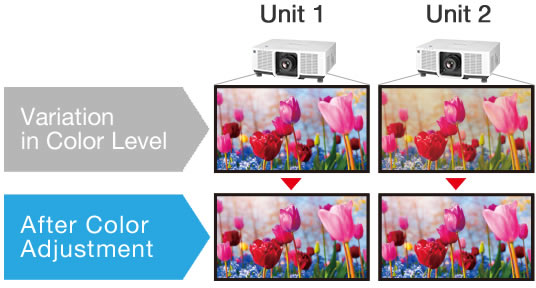

Color Adjustment

Correct slight variations in the color reproduction range of individual units set up for multiple projection, particularly those in side-by-side configuration. Correction is performed on 3 or 7 colors.

Efficient Eco-Friendly Reliability

Reduced Power Consumption

Power consumption is about 20 %* less than previous models. These savings scale with every projector added to your fleet and make a significant contribution to your organization’s efforts to reduce its carbon footprint.
* PT-MZ680 excluded. Approximate value according to Panasonic testing in comparison to equivalent models in PT-MZ770 Series.

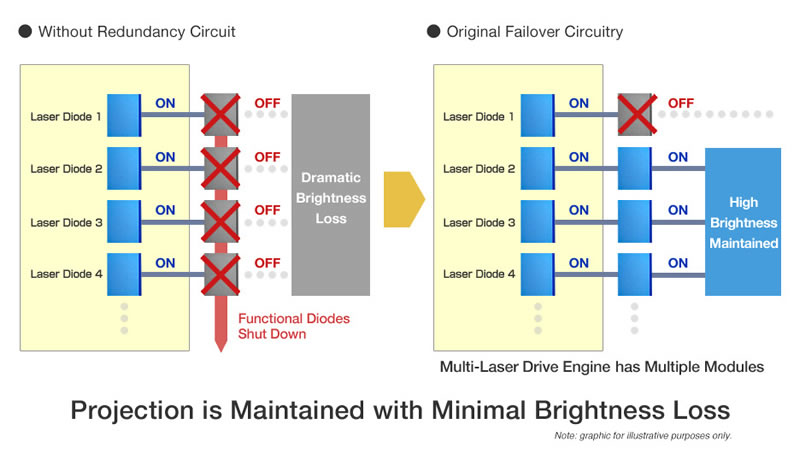

Multi-Laser Drive Engine with Failover Circuitry

Multi-Laser Drive Engine equips multiple laser modules and heat-resistant inorganic phosphor-wheel to enhance projection stability and efficiency. The modules are equipped with proprietary Failover Circuitry. If a single laser diode fails, only diodes in the affected series are bypassed rather than all diodes in the module, as is the case with other projectors. Projection can continue with imperceptible loss in brightness. Failover Circuitry provides an invaluable layer of insurance in situations where image display must be maintained.

Low Maintenance 20,000-hour Operation

Projector maintenance is recommended at about 20,000 hours* to reduce time, cost, and effort to your organization. Long-life laser light-source eliminates hassles associated with lamp disposal (which sometimes contain specified toxic substances) and reduces your consumable parts inventory.
* Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.

Reduced Waste with Lamp-free Design and Eco Filter

Eco Filter includes a Micro Cut Filter that collects minute dust particles with an electrostatic effect. Together with dust-resistant projector cabinet, Eco Filter enables long-term use in dusty conditions with less downtime. Replacement is at about 20,000 hours*1, and the filter can be washed and reused*2. And thanks to the projector’s long-life laser light-source, there’s no hassles associated with lamp disposal.
*1 Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.
*2 Please follow the procedures listed in the operating instructions when washing filter with water. Replacement is recommended after filter has been washed and reused twice, or if filter is not sufficiently clean after washing.

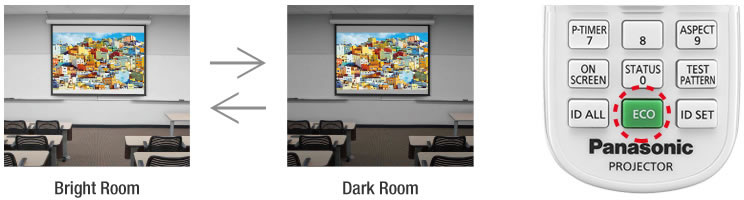

ECO Management System

Energy efficiency is achieved by automatically reducing light-source output power in dim rooms, and by transitioning to a low-power mode when no input signal is detected. These functions are readily accessed via a key on the projector remote control.

Less Packaging for Easy Disposal

Recyclable packing for the projector, accessories, and consumable parts—which can add up in the context of a fleet—is reduced in line with your organization’s CSR policy objectives.

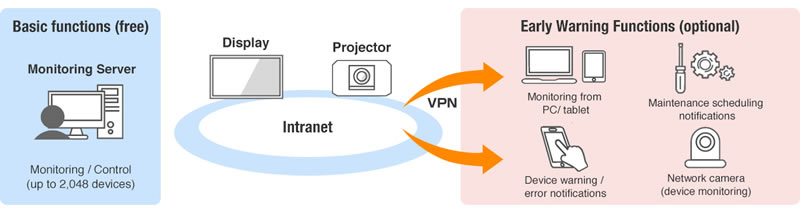

Multi Monitoring & Control Software with Optional Early Warning Functions

Panasonic’s free AV management software for Windows® PC lets you monitor and control up to 2,048 compatible display devices of any brand via LAN to reduce maintenance hassle within display networks of any scale. Multi Monitoring & Control Software enables easy status monitoring, control-command execution, content playlist delivery, playback scheduling, and system map visualization. A free 90-day trial of optional Early Warning software is included and adds extra functionality. It notifies you in the event of a playback or device error, and sends alerts when symptoms of trouble are detected. Maintenance reminders help you to manage parts inventories and to schedule maintenance, while operational reports can be generated and exported as a text file. The software links with compatible network cameras for live screen monitoring, and you can monitor devices remotely from a tablet via VPN. Software data may be acquired via Web API and installed onto an existing monitoring application.

Additional Features

Quick Start/Quick Off

Data-cloning Function*

Art-Net DMX, Crestron Connected™, and PJLink™

Free 360° Installation

Scheduling Function

Presentation Support Function

* Supported via LAN only.
