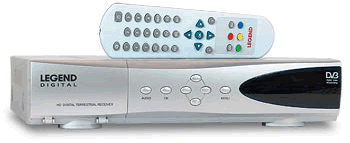

The Legend High Definition Digital television receiver provides crystal clear pictures and incredible
surround sound on your high definition display.
High Definition (HD) provides up to twice the horizontal and up to almost three times the vertical
resolution of Standard Definition (SD) on 16:9 Wide Screen display.
What does the Legend High Definition
Digital TV Receiver offer you?
• On screen TV Guide and program information at your finger tips
• Multiple camera angles to choose from
• Extra channels
• 16:9 Widescreen Transmition (Larger viewing area)
• High Definition Pictures on Selected Programs
FEATURES
- Receive High Definition Digital Television
Signal on selected programs
- Variable aspect ratio (Widescreen & Letterbox)
- Electronic Program Guides complete with
program information at your finger tips
- Automatic channel scan
- Channel list editor
- RCA, S-VIDEO, RF, Component, VGA
576 / 720 / 1080i (PAL) + 480 / 720i (NTSC)
- Fully complies with DVB and MPEG-2
standards
- SPDIF Digital Audio Output for an external
Dolby Digital television or Digital Amplifier
or DAC
- Automatic network search for newly added
channels/programs
- Fully functional IR remote control
Specifications:
Tuner:
• Input: RF
• UHF : 520MHz to 820MHzVHF : 174MHz to 230MHz
• Input impedance 75 Ohms
• Signal Level - 85dBm to -20dBm
• Connector - IEC169-2, Female, Loop Through
• Channel Bandwidth - UHF / 7MHz, VHF / 7MHz
• Channel Assignment - Australia Channel and ± 166.666KHz offset
• Modulation Modes - QPSK, 16QAM, 64QA
Audio decoder:
• Standard ISO/IEC 11172-3
• Audio Decoder MPEG-1 layer 1 and 2
• Audio channel Digital Stereo (PCM)
• Volume control 10 levels of adjustment
• Coaxial Cable

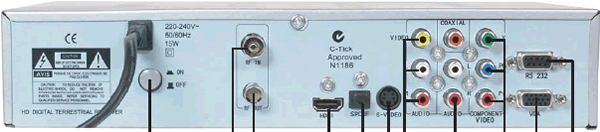

Connector:
• HDMI output (High Definition Multi Media Interface)
• RF output (optional) 1-65 CH
• Audio output 2 X RCA (Dual-channel), SPDIF
• Video output 1 X RCA (CVBS), 3 X RCA (YpbPr),VGA (RGB), DVI 1 X Min Din (S-video)
• Size: 370x242x70mm |
