Screen Technics Interfit Ceiling Mount (280mm Diameter arms supplied)

Screen Technics Logo


Length Price White Black Silver
120mm
$319
300mm
$339
600mm
$359
900mm
$389
1200mm
$419
1500mm
$439
1800mm
$469
2100mm
$499
2400mm
$519
Long Arms
$65


Insured Delivery: $22

Pick Up Available

This commercial grade bracketing system has excellent internal cable management facilities, no tool required for on-site adjustment, cut-down pole length on-site capacity and a build quality that is second to none in the AV industry.

There are nine pole length options to choose from with custom lengths available up to 4000mm for those big commercial projects, with a suite of accessories to provide total solutions for the most challenging of install environments.

Benefits include

  • Universal spider mounting system
  • Unique ball joint assembly to adjust for roll, pitch and yaw
  • Internal cable management
  • No tool on-site adjustment
  • Custom lengths available up to 4 metres.

Colours

White, black, silver

Arms

Standard reach is 280mm

Fixing

Supplied with 4 x M4,M5,M6 bolts for projector attachment

Warranty

3 years (see T&C for more details)



Length Price White Black Silver
120mm
$319
300mm
$339
600mm
$359
900mm
$389
1200mm
$419
1500mm
$439
1800mm
$469
2100mm
$499
2400mm
$519
Long Spider Arms - For larger projectors
$65
Ceiling Trim Kit - For running the pole neatly through a false ceiling
$55
Cut Down Collar - To cover up accidental marks if cutting pole length
$69
Top Ball Joint assembly- For angled or racked ceilings
$145
Vertical Surface Mount - to fix to a vertical pane or the side of a beam
$70
50mm Truss mount - For mounting to a lighting rig or round truss
$145
Equipment tray - For media players etc. *Will not fit the 120mm mount (2KG Limit))
$235
300mm Ceiling Plate - (300mmW x 300mmH, 250mm mounting holes)
$86
490mm Ceiling Plate - (490mmW x 90mmH, 450mm x 50mm Mounting holes)
$127
Adjustable Base Plate
$245


Extra Long Custom Lengths Available Up To 4000mm.

Other Optional Accessories

Extra Long Spider Arms

For those large commercial projectors where the mounting holes are spread too far for the standard spider arms - Standard Arm reach is 140mm from centrepoint (280mm Diameter), with the extra long arms having 220mm from centrepoint (440mm Diameter) reach capacity.

Intefit Spider arms

Ceiling Trim Kit

Allows for the bracket pole to be run through the ceiling material and fixed to a suitable structure above the ceiling line, and provides for a neat trim cover of the cut hole, held in place securely by grommet screws.

Ceiling Trim

Cut Down Collar

This bracket system is designed to be able to be cut down to the required pole length on-site, and then the system simply screws back together after the pole has been trimmed. But if you are not able to perform a neat right-angle cut on-site, you can utilise the deeper cut-down collar which will cover unsightly cutting and square up the pole in relation to the back plate.

Cut Down Collar


Top Ball Joint Assembly

Got a sloping cathedral ceiling? Well, use this top ball joint to fit to the ceiling (up to 30 degrees adjustment) and adjust the pole and bracket to the appropriate vertical plane.

Top Ball Assembly

Vertical Surface Mount Bracket

This bracket can be used with the standard bracket or the top ball joint assembly to fix to a vertical plane, such as an overhead beam.

Vertical Surface Mount

50mm Truss Mount Base Plate

Optional base plate to suit Interfit Projector Bracket Range, allows projector bracket to be mounted to a 50mm truss/Lighting Rig with M8 U Bolts.

Truss Mount

Equipment Tray

Equipment tray to suit Interfit Projector Bracket Range 350mm wide x 290mm deep x 50mm High and Max load rating 2kg.

Tray clamps onto the pole of the Projector bracket.

Cannot be used with a Flush mount projector bracket.

Equipment Tray

300mm Base Plate

Optional base plate to suit Interfit Projector Bracket Range, base plate is 300mm square hole spacng is 250mm centre points.

250mm Base Plate

490mm Base Plate

Optional base plate to suit Interfit Projector Bracket Range, base plate is 490mm long x 90mm wide and mounting holes are 450mm x 50mm from centre point.

450mm Base Plate

Adjustable Base Plate

Optional base plate to suit Interfit projector bracket range, allows bracket to be rotated + or – 90 degrees for raked ceiling or sidewall installation.

Adjustable Base Plate

Interfit Security Cage

Security is becoming an increasing issue for AV equipment and the Interfit Security Cage has all the features recognised as standard requirements in many corporate and educational environments.



Benefits include

  • Fitted after the projector is installed
  • Tilt adjustment to align with projector
  • Moveable uprights to suit centre or offset lens positioning
  • System clamps around existing Interfit Projector Bracket

Colours

  • White, black, silver

Max Load

  • 25kg

Sizes

  • Four standard sizes available
  • Custom sizes available on request

Requirements

  • Requires Interfit Projector Bracket of 300mm or greater.
  • 100mm of bracket post length to underside of ceiling for fitting



Intefir Security Cage



Type Max Projector Size (WxDxH) Price (inc gst) White Black Silver
A 400 x 350 x 150mm $375
B 418 x 418 x 195mm $390
C 508 x 508 x 195mm $410
D 508 x 508 x 300mm $425
F 700 x 700 x 400mm $589

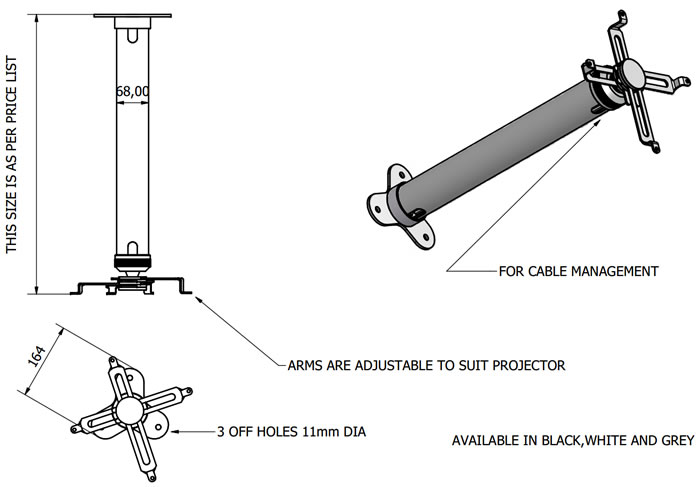

Specifications

Screen Technics Interfit Mount
