BenQ MX528 DLP Multipurpose Projector
MX528




DISCONTINUED

For the current BenQ Range Click here

Quick Facts:
BenQ MX528 Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
84" (4:3) 1650x1237mm From 3.2m to 3.5m
100" (4:3) 2030x1523mm From 3.8m to 4.1m
120" (4:3) 2360x1770mm From 4.5m to 5.0m
SPECIFICATIONS
Native Resolution: XGA 1024 x 768 4:3
Brightness: 3300 ANSI Lumens
Maximum Contrast: 13,000:1
Weight: 1.9kg
Fan Noise: 33 / 28db (eco)
Warranty: 2 Years (+1 Year $65)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 10,000hrs
FEATURES
- Vertical Keystone Correction
- HDMI Connection
- 3D Capable(3D glasses required)

Best Choice at Class-leading Value for Small-Medium Space

Featuring a brightness of 3300 ANSI lumens and a high contrast ratio of 13000:1, the cost-effective and eco-friendly MX528 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.

Saving More on Power Consumption with BenQ’s SmartEco™ Technology

Offering lower TCO and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life –SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporates are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.

Smart Eco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

Smart Economic

LampSave Mode

Projector lamp replacement costs make up the biggest part of the total cost of projector ownership. The LampSave Mode is designed to adjust the lamp power dynamically by content brightness level to extend projector lamp life significantly by 50%! The lamp replacement frequency is also reduced by up to 50% to lower the replacement costs.

Long Lamp Life

Eco Blank Mode

The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

When inactive, the MX528 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for ealier projector models. This technological advancement in energy saving certainly helps extend the projector lamp life and lower energy costs.

Blu-ray Full HD 3D Supported

BenQ MX528 is built with latest DLP® technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content from your blu-ray player.



MW519 3D

Quick Installation

By pressing Test key on the remote control, installer can quickly acces to installation related functions in the OSD menu.
ecoFACTS Label

ecoFACTS can tell you how eco-friendly BenQ products are!

Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!

ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.

Connections

MX528 Rear Connections

Projector Screen Bundle




Specifications

Projection System‎ DLP ‎
Native Resolution‎ XGA (1024 x 768) ‎
Brightness (ANSI Lumens)‎ 3300AL ‎
Contrast Ratio‎ 13000:1 ‎
Display Color‎ 1.07 Billion Colors ‎
Lens‎ F=2.56-2.8, f=21-23.1 mm ‎
Aspect Ratio‎ Native 4:3 (5 aspect ratio selectable) ‎
Throw Ratio‎ 1.96-2.15 (78"@3.1m) ‎
Image Size (Diagonal)‎ 36"~300" ‎
Zoom Ratio‎ 1.1:1 ‎
Lamp Type‎ 190W ‎
Lamp Mode (Normal/Economic)*‎ 4500/6000/6500/10000 hours ‎
Keystone Adjustment‎ 1D, Vertical +/- 40 degrees ‎
Projection Offset**‎ 120% ±5% ‎
Resolution Support‎ VGA(640 x 480) to WUXGA_RB(1920X1200) *RB=Reduced blanking ‎
Horizontal Frequency‎ 15~102KHz ‎
Vertical Scan Rate‎ 23~120Hz ‎
HDTV Compatibility‎ 480i, 480p, 576i, 576p, 720p, 1080i, 1080p ‎
Video Compatibility‎ NTSC, PAL, SECAM ‎
Interface‎ Computer in (D-sub 15pin) x 2 (Shared with component)
Monitor out (D-sub 15pin) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type mini B) x 1
RS232 (DB-9pin) x 1
IR Receiver x 1 (Front) ‎
Dimensions (W x H x D mm)‎ 283 x 95 x 222 mm (with feet)
283 x 88.7 x 222 mm (without feet)‎
Weight (Without Packing / With Packing)‎ 1.9kg ‎
Audible Noise (Normal/Economic Mode)‎ 33/28 dBA (Normal/Economic mode) ‎
Power Supply‎ AC100 to 240 V, 50 to 60 Hz ‎
Power Consumption‎ Normal 270W, Eco 220W, Standby<0.5W ‎
3D Support and Compatibility‎ Frame Sequential: Up to 720p
Frame Packing: Up to1080p
Side by Side: Up to 1080i/p
Top Bottom: Up to 1080p‎
On-Screen Display Languages‎ Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) ‎
Picture Modes‎ Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2 ‎
Accessories (Standard)‎ Remote Control w/ Battery
Power Cord (by region)
UM Download Instruction and Regulatory Statements
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable ‎
Supplied Accessories
Remote
Benq Projector Remote

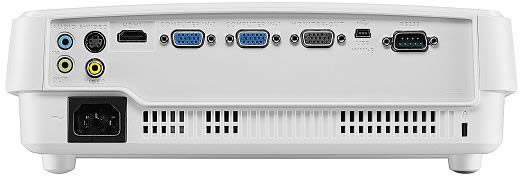

Rear Panel
MX528 Rear
