CASIO XJ-A135 Ultra Slim projector With Wireless & PC Free






DISCONTINUED

For Current Casio Projectors Click Here


Casio XJ-A135 Review:


"The XJ-A135 isn't just a long lamp life it is also incredibly thin making it perfect for portable projection. It could easily slot into a laptop bag of brief case which is a great feature for air travel where they are limiting individual carry on bags. It features an XGA resolution so will be fine with even detailed presentations and small text. A good contrast level at 1800:1 so would be fine with the odd movie or training video. "


CASIO's innovative mobile styling has resulted in an A4-size projector that measures just 43 mm in thickness and 2.3 kg in weight. It slips neatly into a slim briefcase and travels with you easily to presentations outside your office.




CASIO has applied its unique new Laser & LED Hybrid Light Source to achieve breakthrough development of a mercury-free high-brightness projector. Adopting a new semiconductor-based light source system combining a blue laser, phosphor and a red LED, we have achieved both high-brightness performance enabling projection in well-lit rooms and environmental friendliness with mercury eliminated from the light source.
Revolutionary new light source technology
CASIO developed a new semiconductor light source technology combining a red LED, phosphor and a blue laser. This source achieves high luminance safely by employing a phosphor device to modify the wavelengths and phases of blue laser light.


New illumination technology

The new and innovative semiconductor light-source technology developed by CASIO combines LEDs and laser light to create a completely new, mercury-free light source. The new generation of projectors with laserand LED-hybrid light sources has an illuminative performance of up to 2,500 ANSI lumens, creating brilliant, natural colours for impressive presentations – even in daylight.
This revolutionary light source has a 20,000-hour life expectancy, and can be switched on and off without any significant delays – full power is available after only eight seconds!

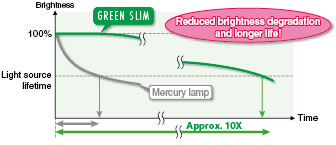

Compared with conventional high-brightness projectors employing mercury lamps, this cuts the cost as well as the time and effort involved in exchanging lamps dramatically, while at the same time maintaining clear, high-quality images over an extended period by reducing the tendency toward degradation of the brightness.

The new generation of projectors has arrived, thanks to the new CASIO models with an operational life of up to 20,000 hours without changing lamps. This means a ten-fold improvement in performance against the conventional lamps used in CASIO projectors (approx. life of 2,000 hours). 20,000 hours means: 10,000 two-hour business presentations, or over 13,000 live football matches viewed in large format at home with friends. A new projector from CASIO is a profitable investment for the future, above all when you think of the considerable follow-up costs for replacing conventional projector lamps: assuming a service life of around 20,000 hours, you would need to buy up to nine new lamps with total costs amounting to about $3,600.

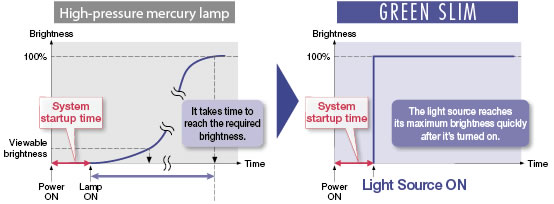

The projector reaches its maximum brightness as quickly as 8 seconds after it's turned on, significantly shortening the time before you start your presentation. Since it doesn't need time to cool down afterwards, either, you can conduct your presentations cleanly and efficiently, from setting up to packing up.


The dramatically enhanced colour purity achieved by our Laser & LED Hybrid Light Source technology results in superior colour reproducibility and brighter, more beautiful colouration. High-purity colour visual effects also generate brighter images, enabling you to present clear, powerful visuals that conventional projectors can't match.

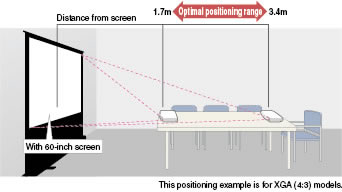

The wide-angle 2x zoom lens boosts magnification to the highest level among data projectors.* This zoom capability enables the projector to project optimally sized images from close to the screen or farther away as well as to correct screen distortions resulting from the projector's positioning automatically.

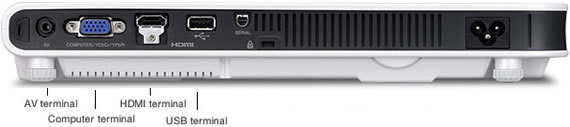

AV terminal
Connect a VCR, video camera or other audio-visual equipment to the AV terminal and use it as a VIDEO input terminal for projecting images. You can also use it as an AUDIO input (output) terminal to play back audio recordings from a PC on the built-in speaker.
*Audio playback with the speaker or connection to external speaker for presentations made from a USB memory device is also possible.

Computer terminal
Images can be projected on a PC screen by simply connecting the PC to the RGB input terminal.

HDMI terminal
AV equipment such as HD televisions and DVD recorders can be connected to the HDMI terminal with a single cable. This enables you to project high-definition images on a large screen while maintaining high image quality.


The projectors are equipped with four colour modes you can select from depending on the venue and content of your presentation. A full range of contents, from text and graphs to moving and still images can be projected with optimal effect.

  • Standard: Suitable for general presentations emphasizing colour expression
  • Graphic: Suitable for natural-looking presentation of photos, etc.
  • Theater: Suitable for showing dark or shaded areas in movies clearly
  • Blackboard: Suitable for high-visibility projection of images on a blackboard

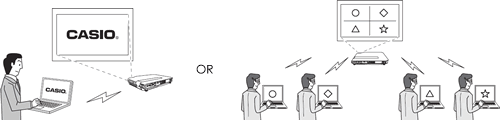

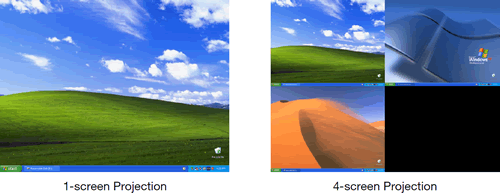

Wireless communication is possible with up to four Windows® PCs (IEEE 802.11b/g): The meeting with operating up to four PCs, presentation away from projector are possible at ease.
(Only Available on: XJ-A255/A245/A155/A145/A135)

To make presentations without a PC, simply save your presentation materials such as PowerPoint (2003/2007), image (JPEG/BMP) and even movie (Motion JPEG/AVI format) in a USB memory device commercially available and project them directly from the projector (USB 2.0-compliant).

(Only Available on: XJ-A255/A245/A155/A145/A135 Via EZ Converter FA software conversion [supplied])

Ceiling Mounting

The new XJ-A Casio projector range can aso be ceiling mounted. Allowing for permanent instalations.


Specifications

Model XJ-A135
Brightness*1 2000 ANSI lumens
Contrast ratio 1800:1
Estimated light source life Up to 20,000 hours
Keystone correction +30° (auto) ±30° (manual)
Focusing Manual power focus
Projection lens 2X optical power zoom lens
Projection screen size 15~300-inch

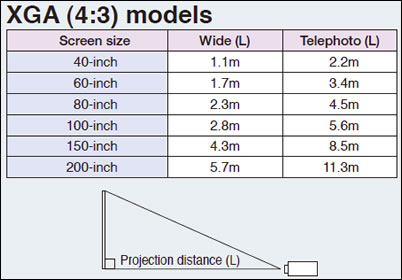

Projection range
60-inch screen: 1.7m~3.4m,
100-inch screen: 2.8m~5.6m
Minimum range: 0.84m
Projection system DLP® system
Display element XGA 0.55-inch DLP® chip 786,432 pixels (1,024×768)
Color reproduction Full color (16.77 million colors)
RGB
input
Display
resolution
XGA Real (1,024×768),
Compressed: Maximum UXGA (1,600×1,200)
Input terminal RGB mini D-Sub 15 pin×1
(Also serves as YCbCr/YPbPr input terminal.)
Digital input Input terminal HDMI Type A×1 (480P~1080P)
Video
input
Signal systems NTSC/PAL/PAL-N/PAL-M/PAL60/SECAM
Input terminal Composite: AV terminal (3.5mm mini-jack) (Also serves as audio terminal.)
Component: Also serves as RGB mini D-Sub 15 pin.
Audio Input-output terminal 3.5mm mini-jack x 1
(Also serves as video input terminal.)
Speaker 1W monaural
Other
terminals
USB (USB terminal on rear)*2
USB (2.0-compliant)
Type A×1
Control terminal RS-232C x 1 (Separately-sold YK-5 serial conversion cable required for connection.)
Wireless compatibility IEEE 802.11b/g*3
Power source AC100~240V, 50/60Hz
Power consumption Operating: 190W (Eco mode-on level 1) /
Standby: 1W or less
Dimensions (W×H×D) 297×43×210mm (including projections)
Weight 2.3kg
Remote control Wireless remote controller
Security compatibility Kensington-compatible, Power-on password
Other functions Direct power-on, Direct power-off, Digital zoom (2X), Rear-projection, Freeze, Pointer, Color mode, Eco mode, Blank, Ceiling mount*4
Included accessories Wireless remote controller / AC power cord / RGB cable /Special AV cable / Instruction manual (on CD-ROM)*5 / Quick reference / Warranty card / Soft case
Supplied Accessories
Carry Bag
Remote
Rear Panel

Optional Accessories

Extended Warranty
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions

Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes
+ 2 Year On-Site Extended Warranty (up to 5 years total) $139
+ 1 Year On-Site Extended Warranty $110


Premium VGA Monitor Cable (15HDM/15HDM)

5 metres
$29.95
10 metres
$59.95
15 metres
$69.95
20 metres
$89.95
30 metres
$110.95


Aus Wide Delivery: $15

[Buy Now]

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

. Features UL Approved Cabling
. Filters included on both ends cutting down on noise
. Maintains stronger signals using a shielded cabling run.
. Comes in 15pin D-sub format with Male to Male conectors
