Viewsonic PJD6553W High Brightness Widescreen Multipurpose Projector
|
|
|
 |
|
FOR CURRENT MODELS CLICK HERE
|
Broaden your vision with ViewSonic ’s PJD6553w widescreen projector. Featuring BrilliantColor™ technology, PJD6553w delivers impressive color performance in any room. 1280 x 800 (WXGA) resolution, 3,500 lumens and 15,000:1 contrast ratio offer outstanding digital clarity for sharp graphics and stunning video. Environmentally friendly DynamicEco™ mode provides energy and cost savings, and minimizes noise to eliminate distractions during class. RGB and HDMI connectivity plus an integrated 10W speaker enable excellent multimedia presentations to enhance the learning experience. Use Crestron RoomView® to remotely manage up to 250 networked projectors through RJ45 connectivity. And with 3-second power-on and instant power-off times, teaching has never been more efficient or effective.
 |
High-impact presentations
PJD6553w shines with 3,500 lumens of high brightness. 1280 x 800 WXGA resolution and 15,000:1 contrast ratio provide clear, brilliant pictures with vivid colors. Make impressive, widescreen presentations without turning off the lights.
BrilliantColor™ technology
Latest BrilliantColor™ technology delivers stunning, all-digital clarity with lifelike color, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enriches the yellow color performance that is key to accurate and vivid color reproduction. |
Fast on, instant off
PJD6553w is an ideal, time-saving solution for efficient and effective teaching. It only takes 3 seconds to turn on the projector, while the Off-to-Go feature enables immediate shutdown and protects the lamp from sudden power blackouts. Simply unplug the projector and go without waiting for it to cool down.

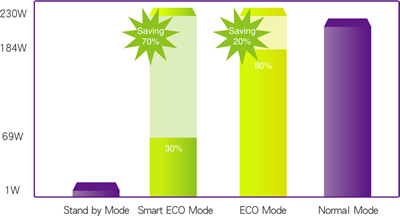

70% energy savings with DynamicEco-mode
The projector’s environmentally friendly DynamicEco™ mode feature extends lamp life and lowers energy consumption up to 70%, saving you money and saving the planet. DynamicEco™ mode also reduces fan noise to eliminate distractions during class. It also advances contrast ratio to 15,000:1 to tailor for a professional projection performance. |
 |
 |

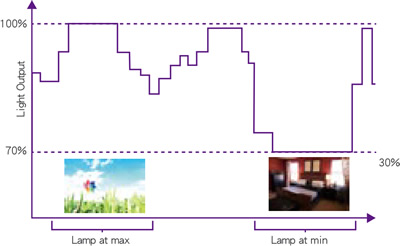

Dynamic movie mode for amazing contrast
With dynamic movie mode, PJD6553w automatically detects image brightness and adjusts the contrast ratio for the most vivid viewing experience possible. When displaying dark images, the lamp automatically dims to strengthen black levels and reveal fine details. When displaying bright images, the lamp is turned up again to create brilliant, bright whites. |
Crestron RoomView® network control
User-friendly Crestron RoomView® software lets you remotely manage up to 250 networked projectors through RJ45 connectivity. With real-time monitoring and control, schedule events and program e-mail alerts for projector lamp status. |
 |
|
Specifications
| LCD |
|
Type |
|
TI DMD 0.65" |
| |
|
Resolution |
|
1280x800 |
| |
|
Lens |
|
1.3X |
| |
| Display |
|
Size |
|
29 - 306 inch (measured diagonally) |
| |
|
Throw Distance |
|
1.5 - 6.0m |
| |
|
Lamp |
|
OSRAM / 5000 hour rating** |
| |
|
Brightness |
|
3500 Lumens |
| |
|
Contrast Ratio |
|
15000:1 |
| |
|
Keystone Correction |
|
+40 ~ -40 |
| |
|
Aspect Ratio |
|
4:3 / 16:9 |
| |
| Audio |
|
Speakers |
|
10W *1 |
| |
| Input Signal |
|
Video |
|
NTSC M (3.58 MHz), 4.43 MHz, PAL (B, D, G, H, I, M, N, 60) SECAM (B, D, G, K, K1, L) 480i and 576i 480p and 576p 720p,1080i, 1080p |
| |
|
Sync |
|
|
| |
|
Frequency |
|
Fh: 31-100KHz; Fv: 48-120Hz |
| |
| Compatibility |
|
PC |
|
1024 x 768 @ 60Hz (Native) |
| |
|
Mac |
|
1024 x 768 @ 75Hz (MAC adaptor may be required) |
| |
| Connector |
|
RGB Input |
|
DB-15 *2 |
| |
|
RGB Output |
|
DB-15 *1 |
| |
|
Composite Video |
|
RCA-1 *1 |
| |
|
Component Video |
|
Share with RGB (RGB *1) |
| |
|
Digital Input |
|
HDMI x 1 |
| |
|
Audio |
|
input:3.5mm Mini-Mono Jack *2; output:3.5mm Mini-Mono Jack *1 |
| |
|
Control |
|
RS-232 (DB-9 *1) |
| |
|
USB |
|
*1 (Firmware Update / Mouse) |
| |
| Power |
|
Voltage |
|
120 V ~ 240 Vac 50 / 60 Hz |
| |
|
Consumption |
|
361 W |
| |
| Operating Conditions |
|
Temperature
Humidity |
|
0 - 40 (° C) / 32 - 104 (° F)
10% - 80% (non condensation) |
| |
| Dimensions |
|
Physical |
|
294mm (W) x 242mm (H) x 84mm (D) |
| |
| Weight |
|
Net |
|
2.6 kgs |
| |
| Regulations |
|
|
|
RoH, CB, CCC, PSB, C-tick, KC, SASO, CE, GOST-R, Ukr, ErP, SVHC list & REACH DoC, UL, FCC (including ICES-003), cUL, NOM, TUV-S, GS |
|
|
|
| Optional Accessories |
|
Kensington 2.4Ghz Wireless Presentation Remote - With Red Laser Pointer |
Normally $99.95 |
|
FEATURES
- Wireless range up 50 meters
- Red Laser Pointer
- Low battery indicator
- Backlit buttons
- Two modes—switch from presenter to cursor control mode
- On/off switch
- USB receiver stores inside
- Carry pouch included
- Controls Keynote and PowerPoint
|
- Windows Compatible
- Mac Compatible
[More Information]
|
|
Universal Flush Projector Ceiling Mount FB-1 *Recommended* |
| White - $149 |
|
| Black - $149 |
|
|
|
SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
|
FEATURES
- Direct to ceiling mount (150mm)
-
Suits most projectors with 3 or 4 holes
|
|
|
Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors |
1 Metres |
$19.95 |
|
2 Metres |
$29.95 |
|
3 Metres |
$39.95 |
|
5 Metres |
$49.95
|
|
10 Metres |
$79.95 |
|
15 Metres |
$99.95 |
|
20 Metres |
$149.95 |
|
|
- High Speed HDMI CAT2 cable
- Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
- Designed to support the features of HDMI V2.0 and previous versions
- Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
- High Speed HDMI performance with a dedicated Ethernet channel.
- Shieled cable construction for optimum RF & EMI Protection
- Gold Plated terminals
- 12 Month Warranty
*We recommend keeping the length short for 4K under 10m - especially for 60hz
|
|
|
Premium VGA Monitor Cable |
5 Metres |
$29.95
|
|
10 Metres |
$59.95 |
|
15 Metres |
$69.95 |
|
20 Metres |
$89.95 |
|
30 Metres |
$110.95 |
|
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
- Features UL Approved Cabling
- Filters included on both ends cutting down on noise
- Maintains stronger signals using a shielded cabling run.
- Comes in 15pin D-sub format with Male to Male conectors
|
 |
