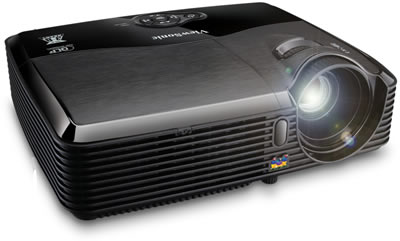

Viewsonic PJD5523W Multipurpose Widescreen Projector

PLED-W500





Viewsonic Logo


Discontinued
FOR CURRENT MODELS CLICK HERE



The powerful performance of a light and thin projector! PJD5 series creates excellent images for briefing and recreation with outstanding effects. It supports signal sources of digital and contrast images, restoring true color effects with advanced techniques. Its performance makes projecting communication smoothly!

The color enhancement of BrillantColor improves colorful sharpness and contrast of projecting images. With clear quality, briefing and multimedia images will be more outstanding. It features 2700 lumen and the contrast of 3000:1. With ViewMatch color adjustment, you can restore images without complex processes.

The series support diverse sources to satisfy various requirements. With double VGA input and single VGA output, it is easy to project images from laptops and various facilities.Advanced PJD5523w is installed with HDMI for connecting blue-ray disks and TV games to display high quality images. With VP3D1 3D video processor, the series can be upgraded to 3D display, reaching the climax projection.

Weighing only 2.6 kg, the series is portable for commercial needs. Domestically, space issue is also overcome. Image restoration is no longer a problem for its vertical digital keystone correction. PJD5 series have excellent specifications to ensure the display of projecting communication, creativity expression, and video recreation!

BrilliantColor™ Color Enhancing
ViewSonic BrilliantColor color enhancing increases the saturation of images. They provide surprising effects with vivid images and topics. The advanced six-segment color wheel improves the saturation in the images and enhances the brightness and precision of representation

Off to Go
With “Off to Go,” lecturers turn off the projector and take it away soon. This series do not require cooling before moving. This function avoids damages caused by power failure.

DLP 3D Ready
With VP3D1 3D video processor, the 120Hz frequency doubling 3D Ready display supports new mainstream 3D facilities, 3D images, movies, and games.

Advanced HDMI Digital Input
HDMI is a digitalized video/audio transmission interface. It transmits high quality video/audio signals. The streaming bandwidth reaches 10.2 Gbps/second. It supports 1080P Full HD signal input and provides colorful images. HDMI supports HDCP for ensuring Full HD images and provides digital visual feasts.

Light and Portable
The light and thin body weighing 2.6 kg provides excellent projection. It satisfies the carrying requirements of businessmen. Applied to domestic recreation, it provides a freer setting environment.

Easy light bulb replacement
The light bulb can be replaced by opening the cover. To maintain and repair the projecting facilities are more convenient and user-friendly .

±40° Vertical Digital Keystone Correction with More Flexible Adjustment
The vertical digital keystone correction can correct the twisted images caused by the environment into square projection and restore the true images without twists.




Specifications
LCD   Type   0.55 DMD chip
    Resolution   1280x800
    Lens   1.2x

Display   Size   27 - 300 inch (measured diagonally)
    Throw Distance   1.4 - 8.0m
    Lamp   180w / 5000 hour rating
    Brightness   2700 Lumens
    Contrast Ratio   3000:1
    Keystone Correction   Vertical digital keystone correction: ± 40 degrees

Audio   Speakers   2w x 1

Input Signal   Video   NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G,H, I, M, N, 60), SD 480i and 576i (24fps,25fps and 30fps), ED 480p and 576p (24fps,25fps and 30fps), HD 720p, 1080i , 1080p
    Sync
    Frequency   Fh: 31-100KHz; Fv: 50-120Hz

Compatibility   PC   XGA to UXGA
    Mac   Up to 1400×1050 (may require Mac Adapter)

Connector   RGB Input   2×15-pin mini D-sub
    RGB Output   1×15-pin mini D-sub
    Composite Video   1 x RCA jack
    S-Video   1 x 4-pin mini DIN
    Digital Input   HDMI x 1 (V1.3)
    Audio   1×3.5mm mini jack(Microphone)/1×3.5mm mini jack
    Control   1 x RS-232 (9 pin D-sub)

Power   Voltage   100~240VAC(Auto Switching), 50/60Hz (universal)
    Consumption   245W (Typical) / <1W (RGB out disable)

Operating Conditions   Temperature
Humidity
  0 - 40 (° C)
10%-90% (non-condensing)

Dimensions   Physical   284mm (W) x 81.5mm (H) x 234mm (D)

Weight   Net   2.6 kgs

Regulations       RoHS, CB, CCC, PSB,C-tick, KC, SASO, CE, GOST-R, Ukr, ErP, SVHC list & REACH DoC, UL, FCC(including ICES-003), cUL/ CSA, Argen, NOM

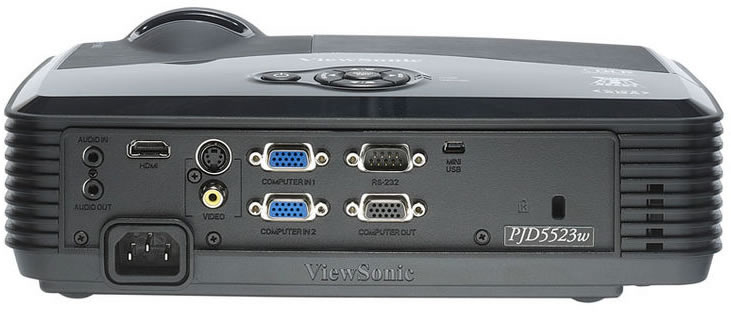

Rear Panel

PJD5523W Rear Connections



Optional Accessories

Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
HDMI Features




VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
