A SIMPLE WIRELESS SETUP FOR USE WITH A USB MEMORY STICK
The PLC-XU355 has an innovative wireless feature called “Simple Wireless
Set Up” .This model can set up a wireless connection easily without installing
a software from a CD-ROM. Just pass off the USB memory. By connecting the
PC and USB memory, the program in the PLC-XU355 starts running
automatically, and the image will be projected directly on the screen.
PC-FREE
With the Memory Viewer function, you can project images in these formats below.
• Bitmap data
• JPEG data converted with the Network Viewer 5 [File Converter 1 and 2] software.
• Text data
• Program file created with the Network Viewer 5 [Program Editor].
* Some data may not be projected even with these formats. In that case, convert that kind of
data into JPEG data with the Network Viewer 5 [File Converter 1 and 2] software.
Text data used with Memory Viewer
Memory viewer supports the text file with the ASCII format for single byte. Other text formats cannot
be supported.
NETWORKING CAPABILITY
Bright 3500Im, the PLC-XU355 is equipped with SANYO’s exclusive PJ-Net
Master Network Interface software for wired and wireless networking, a
common feature among SANYO’s extensive line of commercial projectors.
Networking allows the monitoring of projector functions and operation from a
long distance via a web browser for up 15,000 Sanyo projectors. Emails can
be sent automatically to report operating status.
COMPLETE EASY AUTO SET UP FUNCTION, SMART AUTO INPUT
SEARCH AND AUTO VERTICAL KEYSTONE CORRECTION
PLC-XU355 provides "Auto Set Up Function" that corrects keystone shaped
distortion by searching for an input signal and detecting projector incline,
therefore reducing set up time. PLC-XU355 automatically compensates for
keystone picture distortion. Auto Keystone Correction, Auto Input Search and
Auto PC Adjustment make it a really smart projector.

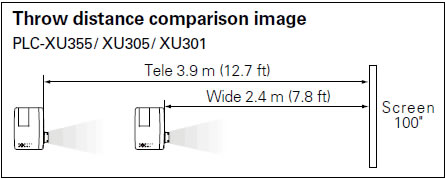

SHORT THROW LENS WITH 1.6 ZOOM AND 7W SPEAKER
PLC-XU355 is equipped with a zoom lens that allows screen size adjustment.
The optical zoom works to maintain the image quality. The short-focus type
lens allows large screen image projections with a short throw distance. The
PLC-XU355 enables 100-inch screen projection at the shortest distance, 80
inches. Along with its mobility, the PLC-XU355 features a high-output 7 Watt
speaker. Sufficient audio is delivered through its built-in speaker, so the
projector can be used in conference rooms, classrooms, and other similar
spaces.
BLACK BOARD / COLOR BOARD MODE
What could be more right for education? A black board mode. The PLCXU355
is compatible with four colored (red, blue, green and yellow) projection
surfaces via the ‘Color Board Mode’. It adjusts the color to make images look
as true as on an ordinary white screen.
LAMP REPLACEMENT ON TOP CABINET
There is access to the lamp from the top of the projector which means you can
replace the lamp on a ceiling-mounted unit without taking down the projector.
Specifications
Type
3.0 x 063" TFT p-Si (4:3), micro lens
Panel type
Organic LCD panel
Lamp
225 W UHP (LMP-131)
Brightness
3500 ANSI lumens
Brightness (eco mode)
2450 ANSI lumens
Lamp life
2500h (eco mode), 2000h (normal mode)
Fan noise
29dB (eco mode), 34dB (normal mode)
Standard lens
F=1.65-2.33 / f=15.47-24.53*
Throw distance ratio
11.18-1.91:1
Throw distance
0.69-7.23m
Contrast ratio
500:1
Resolution in pixels
1024 x 768 (XGA)
Image size min-max (diagonal)
30-300 inch
Uniformity
85%
Bandwidth/Frequency
140kHz, Horizontal: 15-100kHz, Vertical 50-100Hz
Colour systems
PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N

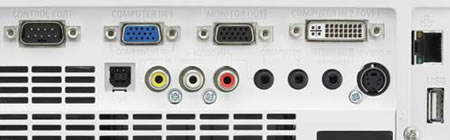

Connections
Input 1: DVI-I (digital/HDCP/analogue)
Input 2: D-sub 15 (RGB/Component/SCART-RGB)
Input 3: Rca (video)
Input 4: Mini DIN 4 (S-Video)
Input 5: RJ45 (LAN)
Audio 3.5mm Stereo Jack
Audio 2 x RCA (R/L mono)
Audio output 3.5mm Stereo Jack
Monitor output D-sub 15
control input jack 1 D-sub 9 (RS232)
Control input jack 2 RJ45 (LAN)
Control input jack 3 USB type B (Mouse control)
Others USB type A (USB key)
IR remote control, Batteries, User Manual, Power cable, PIN code label, Lens cover with cord, CD-ROM for network module, USB stick with software for easy network set-up
