NEC PX803UL DLP Large Venue Full HD Laser Projector
- Lens Required
|
|
|
|
|
For the current NEC Range Click here
|
| Quick Facts: |
|
|
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 8000 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 28.0kg
Fan Noise: 40 / 35db (eco)
Warranty: 5 Years
Optical Block Warranty: 5 Years/20,000Hrs
Laser Warranty: 5 Years/20,000Hrs
Laser Life Up To: 20,000hrs |
FEATURES
- Lens Options
- Horizontal & Vertical Lens Shift
- Horizontal & Vertical Keystone
- 360° Installation (vertical axis)
- Portrait Installation Mode
- Edge Blending
- Multi Screen Function
- Stacking Function |
| Model |
NP17ZL
 |
NP18ZL
 |
NP19ZL
 |
| |
$6299
|
$2799
|
$6599
|
| Screen size range |
50-500" |
50-500" |
50-500" |
| Throw Ratio |
1.25-1.79:1 |
1.73-2.27:1 |
2.22-3.67:1 |
| NEC PX803UL Distance Chart (Examples for common Sizes) |
110" (16:10)
2370x1480mm |
3.0m to 4.2m |
4.1m to 5.3m |
5.3m to 8.6m |
130" (16:10)
2800x1750mm |
3.5m to 5.0m |
4.9m to 6.3m |
6.2m to 10.2m |
180" (16:10)
3880x2420mm |
4.9m to 6.9m |
6.8m to 8.8m |
8.7m to 14.2m |
Professional Installation Projectors ideal for
corporate, higher education and museum applications
Powerful installation projectors
equipped to take on the most
demanding integration projects
The PX803UL - simply install & forget. First grade high end blue laser diode light source, combined with an unique quality Phosphor wheel technology and no filter replacement required, results in an up to 20,000 hours hassle free operation. These features, bundled with a low overall power consumption, provide exceptional reliability and an attractive total cost of ownership addressing long lasting Signage installations or Museums.Superior cinema picture quality, especially on large screens is provided by 4k signal processing performance. Enhanced by an optional new ultra-short throw lens, this projector is also perfectly suited for Rental/Staging, Higher Education and large installations.
See how NEC has been an advocate for improving education for over 15 years. Click here for more details!
- Resource-saving - up to 20,000 h maintenance-free operation thanks to Laser Light Source technology, filter less dust shielded design & integrated liquid cooling system.
- Hassle-free Installation - wide zoom bayonet lens portfolio & support of third party lenses (ask your local trusted NEC partner) enables customised installations and easy replacement of current inst
- Outstanding Picture Quality - whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing technology based on the latest NEC scaler chip.
Laser Light Module
• 20,000-plus hours of virtually maintenance-free
operation
• High-brightness, lower power consumption
enhances applications such as retail, digital
signage and theme parks
• Ability to control brightness creating a stable
image over longer time periods |
Integrated and Powerful
• Project uncompressed FHD video with integrated HDBaseT
• High performance video processing/scaling creates life-like images
• Integrated software applications
such as DisplayNote®, Crestron Roomview,
AMX Beacon and PJ Link allow
for complete interactivity and control
• Tile Matrix enables 4Kx2K resolution |
Flexible
• Enjoy greater installation flexibility with a complete line of optional bayonet style lenses (8) for quick and easy exchange. Lens throw distances
range from 2.1 to 179.8 ft
• Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
• +/- 50% vertical lens shift and +/- 15% horizontal lens shift capabilities make alignment easy
Screen Splitter
NEC is committed to bringing the latest and
greatest innovation to projectors. Multi-display
capabilities and TileMatrix technologies are
integrated into the new PX series projectors.
This processing is all done internally and
therefore eliminates the additional hardware
typically required to produce a beautiful 4K
resolution image.
|
 |

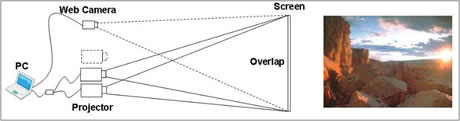

| Stacking Correction
The industry’s first built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up to
40,000 lumens, which is ideal for larger-sized
screens and environments with heavy ambient
light. This feature also prevents the complete
loss of an image, which can happen when using
only one projector. |
 |
Edge Blending
This function seamlessly blends multiple
projected images to display a single high-
resolution image.
|
 |
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed
full HD digital video, audio, ethernet, power and various control signals. With only a single cable (up to
100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is
no cable clutter to manage. With uncompressed HD video support, images have never been more stunning.
What’s more, control signals are contained in the same cable.
|
 |
Remote control
Wired and wireless backlit remote
allows you to adjust for complete
control of the projectors menu
structure in a well lit or dark
environment. Direct controls such
as lamp mode, aspect ratio, volume
and input selection eliminates
multiple button pushes. |
Digital Inputs
Among the PA Series’ wide selection
of inputs are dual HDMI w/HDCP and
DisplayPort w/HDCP for connecting
to high-definition sources such as
Blu-ray players, cable boxes, satellite
receivers and personal computers. |
Wall color correction presets
These provide for adaptive color tone correction to
display properly on non-white surfaces |
 |
 |
 |
ADVANCED SOFTWARE FEATURES
Cornerstone
Enhanced keystone
correction allows for horizontal,
vertical and diagonal image correction for aligned
images even when the projector is set up at an angle
to the screen. |
3D
When combined with active shutter
glasses and 3D emitter, the
PX Series Projectors create 3D
images from a computer or Blu-ray
player. The PX Series utilize the 3D
sync line output from the projector
to connect to the 3D emitter.
Optional 3D glasses and emitters
from XPAND are available from
NEC |
Geometric Correction
Projecting an image isn’t
confined to a standard
flat screen or wall with the
NEC PX Series. Geometric
correction allows these
models to project an image
on spheres, cylinders,
corner angles and many
more non-standard
surfaces. |
 |
 |
 |
Tilt-free
The projector can
be rotated freely
(360°) to orient the
image depending
on the installation
requirements |
Portrait mode
Allows the projector to be rotated
(and screen if necessary) to a vertical
alignment so that portrait content can
be viewed without black bars on the
side when landscape mode is used. |
 |
 |
UNIQUE FEATURES
3D Reform™ allows you to square the image by adjusting
horizontally, vertically or diagonally when the projector cannot be placed parallel or perpendicular to the screen
Advanced AccuBlend™ ensures detailed images when non-
native resolution sources are connected to the projector
AutoSense™ automatically syncs with any computer signal
and features one-touch image optimization
64-step image magnification with location control
Discreet source keys
for source selection
Remote diagnostics
enable the user to monitor and make
adjustments to the projector remotely
Built-in HTTP page
for control and monitoring over a LAN
network. Email notification of error messages or lamp end-of-life can be sent to remote locations. |
Specifications
| Optical |
| |
| Display Technology |
DLP (0.67" DMD) |
|
| Light Output(Lumens) |
8000 normal |
|
| Resolution |
|
| Native |
WUXGA 1920 x 1200 |
|
| Maximum |
4K 4096 x 2160 |
|
|
| |
|
| Contrast Ratio (up to) |
10,000:1 with dynamic contrast |
|
| Lamp Type |
Laser/Phosphor |
|
| Lamp Life (up to) |
20,000 hours |
|
| Screen Size (diagonal) |
30 to 350 in. / 0.76 to 8.89m |
|
| Projection Distance |
1.5 to 179.8 ft. / 0.5 to 54.8m |
|
| Projector Angle |
2.1 to 19.1° tele / 3.3 to 24.0° wide |
|
| Lens |
|
| Focus |
Power |
|
| Shift |
Power +/-0.59 vertical, +/-0.28 horizontal |
|
|
| |
|
| Keystone Correction |
+/- 40° horizontal, +/- 40° vertical |
|
|
| |
| Signal Compatibility/Connectivity |
| |
| Synchronization Range |
|
| Horizontal (Analog/Digital) |
Analog: 15-100kHz, Digital: 15-153kHz |
|
| Vertical (Analog/Digital) |
Analog: 48-120Hz, Digital: 24-120Hz |
|
|
| |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
| RGB1(analog) |
VGA 15-pin D-sub |
|
| RGB2(analog) |
5-BNC |
|
| RGB2(digital) |
HDMI w/HDCP |
|
| RGB4(digital) |
DisplayPort w/HDCP |
|
| RGB5(digital) |
HDBaseT |
|
|
| |
|
| External Control |
RS-232, IR, HDBaseT, Stereo Mini, PJ-45 |
|
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
|
| Networking |
HDBaseT, RJ-45 |
|
|
| |
| |
| Electrical |
| |
| Power Requirements |
100-240V AC, 50/60 Hz |
|
| Input Current |
9.4-3.8A |
|
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
874W / 456W / 4.3W / 0.18W |
|
|
| |
| |
| Mechanical |
| |
| Optional Lenses |
NP16FL, NP17ZL, NP18ZL, NP19ZL, NP20ZL, NP21ZL, NP31ZL, NP39ZL |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
19.7 x 22.9 x 8.5 in. / 500 x 583 x 216mm |
|
| Net Weight |
61.7 lbs. / 28.0 kg |
|
| Fan Noise |
40 dB normal / 35 dB eco |
|
| Regulations |
USA: UL60950-1, Laser + Lamp (IEC60825-1 + IEC62471), FCC Part15 Class A, Canada: C-UL CSA60950-1, Laser + Lamp (IEC60825-1 + IEC62471), ICES-003 Class A, NOM |
|
|
| |
| Environmental |
| |
| Operating Temperature |
41-104°F / 5-40°C |
|
| Humidity |
20-80% non-condensing |
|
| Storage |
-14-122°F / -10-50°C |
|
