Epson EH-TW8300 LCD Full High Definition 3D Home Cinema Projector


EH-TW8300




3D



Australian 2 Year Warranty


DISCONTINUED
FOR CURRENT EPSON PROJECTORS CLICK HERE

Quick Facts:
Epson EH-TW8300 Throw Distance Chart (Examples for common Sizes)
T/R: 1.35-2.84:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 2.8m to 5.7m
100" (16:9) 2130x1200mm From 2.9m to 6.0m
110" (16:9) 2435x1370mm From 3.3m to 6.9m
120" (16:9) 2580x1450mm From 3.5m to 7.3m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1080 16:9
Brightness: 2500 ANSI Lumens
Maximum Contrast: 1,000,000:1
Weight: 11kg
Fan Noise: 20db
Warranty: 2 Years (+1 Year $139)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 5
,000hrs

FEATURES
- 4K Enhancement
- 2.0x Zoom (Powered)
- Veritcal & Horizontal Keystone
- Vertical Lens Shift (+/-96%)
- Horizontal Lens Shift (+/- 47%)

- Frame Interpolation
- 3D Capable(3D glasses required)
- 2D to 3D Conversion

- 2x HDMI Connections


Epson EH-TW8300 Projector

The top of the line EH-TW8300 from Epson is designed from the bottom up to give you a high detail razor sharp image which is bright and colour accurate. Although the TW8300 is a 1080P native projector Epson have developed 4K enhancement to give you increased detail through fast and accurate pixel shifting. In essence you get the 4K experience on the big screen at a fraction of the price.  Combined with inky deep black levels of the 1,000,000:1 contrast ratio the TW8300 is a perfect match for the most discerning home theatre enthusiast.

KEY FEATURES:

Stunning 4K Enhancement – Discover a whole new way to watch movies — the way filmmakers intended. Epson's 4K Enhancement Technology delivers an astonishing picture quality and even allows you to upscale 1080P content
Striking Contrast Ratio – Experience incredible black levels with an amazing 1,000,000:1 contrast ratio to experience incredible
Lens Memory – Allowing you to preset up to 10 positions for zoom, focus and lens shift for both standard projection and wide cinema ratios
Amazing Colour Brightness – 2,500 Lumens colour brightness and 2,500 Lumens white brightness
3LCD Reflective Technology – Light reflection reduces and corrects the variation of polarization, delivering rich, deep blacks
A True Cinematic Experience – Innovations, including Epson's unique Super-resolution with Detail Enhancement Technology, exceptional frame interpolation capabilities, as well as powerful Bright 3D Drive projection let you experience a new standard in home entertainment
Powered Lens Shift – Lens shift technology enables outstanding installation flexibility with an incredible range of up to ±96% on the vertical axis and up to ±47% on the horizontal axis
Efficient Cooling System – With noise levels as low as 20 dB, these are among the quietest projectors in the industry
2D-to-3D Conversion – Easily transform 2D images to spectacular 3D for unlimited 3D content

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. The Epson EH-TW8300 features the cutting edge D9 panels with 12bit colour which enables the projector to reproduce subtle differences in colour gradation, especially important with skin tones. The TW8300 also features the C2 Fine technology which projects a brighter image by boosting aperture ratios making for a brighter image capable or operating in rooms without full light control.

4K Enhancement

Stunning 4K Enhancement

Discover a whole new way to watch movies — the way filmmakers intended. Epson's 4K Enhancement Technology delivers astonishing picture quality. Now every subtle intricacy is captured — even your most-loved films will offer something new. Plus, Epson's Detail Enhancement Technology refines surface details for true-to-life images that pop off the screen. Users can adjust levels of sharpness and detail enhancement for optimal viewing. This isn’t just a new way to watch movies — it's the best way.

Upscale 1080P Content
The EH-TW8300 also features 4K enhancement which can upscale current HD content making it appear as a more detailed image.

EH-TW8300 4k enhancement

Pixel Scaling

Epson’s 4K enhancement is achieved with a state of the art pixel shifting technique. The projector shifts the each pixel diagonally by a miniscule 0.5 of a pixel doubling the resolution on both the horizontal and vertical plane. 4K enhancement improves the detail without having to fork out for new 4K movies and players.

Pixel Scaling
Colour Gamut

Wide Colour Gamut

Enjoy brilliant colour with the EH-TW8300. The projector has been designed to give you rich and vibrant colour even in the brightest mode. The TW8300 covers the sRGB colour gamut completely and even adheres to the DCI colour gamut (the digital cinema standard).

Lens Memory

Fast, quiet and precise, the new range allows you to preset up to 10 positions for zoom, focus and lens shift for both standard projection and wide cinema ratios. Project 2.40, 1.85 and 1.78 aspect ratios on the same screen without an anamorphic lens — and no downtime when switching between ratios. Watch movies on a grander scale at the touch of a button, without any disruptive black bars.

Lens Memory



A True Cinematic Experience

Epson have equipped the EH-TW8300 projector with a swath of cutting edge technologies:

  • Super-Resolution upscales lower resolution content to appear more detailed utilizing detail enhancement technology.
  • Frame Interpolation artificially inserts extra frames giving you better performance for fast motion in movies sport and games.
  • Bright 3D drive offers you a brighter 3D experience above some competing projectors and TV’s which darken the appearance of 3D images.

Detail enhancement

Frame Interpolation

Powered Lens Shift, Zoom and Focus

The Epson EH-TW8300 features one of the most flexible zoom focus and lens shift on the market. This makes for easier installation when you need the projector quite close or far away from the screen and also if it needs to be far off centre from a high ceiling or off to the side. The adjustments are all achieved optically so you do not loose any resolution. The TW8300 features a 2x zoom and a massive lens shift range ± 96 percent on the vertical axis and up to ± 47 percent on the horizontal axis. This is all adjustable from the remote so you do not have to be up at the projector to make adjustments.

Powered lens shift

Efficient Cooling System

The only sound you want in a true home cinema is crystal clear audio not the buzzing of a projector cooling fan. The EH-TW8300 features larger slower moving cooling fans and purpose designed vents to achieve an almost silent 20db noise rating on cinema mode. This is among the quietest projectors in the industry.

Bright 3D Drive Technology for 3D Cinematic Adventures

Enjoy thrilling 3D adventures right in the comfort of your living room. Featuring Bright 3D Drive technology, the EH-TW8300 puts you right in the middle of the action. Epson's drive system minimises the blackout time of 3D glasses and provides greater brightness when viewing 3D content.

2D-to-3D Conversion

The TW8300 also has the ability to upscale you standard 2D content to 3D. Even older movies everything from your favourite scifi to black and white classics can be transformed into 3D with a touch of a button.

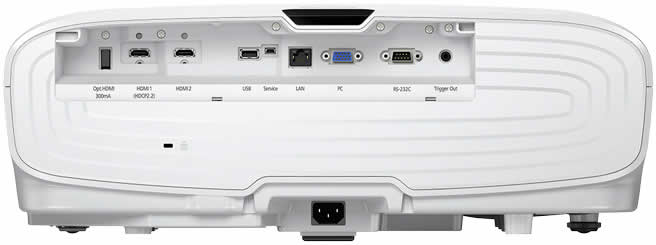

Connectivity Panel

EH-TW8300 Rear Connections








Specifications
PRODUCT NAME Epson EH-TW8300
PRODUCT CODE V11H713053
WHAT'S IN THE BOX
  EH-TW8300 Projector, Power Cable, Remote Control + Batteries, HDMI Clamp x 2, User Manual
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.74-inch wide panel with MLA (D9, C2 Fine, 12 bit, OD)
OPTICAL
Zoom 1 - 2.1 (Optical)
Screen Size 50" to 300" [1.48 to 9.08 m] (Zoom: Wide)
50" to 300" [3.13 to 18.99 m] (Zoom: Tele)
Projection Distance 100" screen 3.0 - 6.3 m
Throw Ratio 1.35 (Zoom: Wide), 2.84 (Zoom: Tele)
Projection Lens F Number 2.0-3.0
Projection Lens Focal Length 22.5mm - 46.7mm
Focus Method Powered
Colour Light Output 2,500 Lumens
White Light Output 2,500 Lumens
Resolution 1080p (4K Enhancement)
Native Aspect Ratio 16:9
Contrast Ratio 1,000,000:1
Lamp Type 250 W UHE
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit (Partial 12 bit)
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Lens Shift (Powered) Vertical: -96.3% to +96.3%
Horizontal: -47.1% to +47.1%
CONNECTIVITY
Input: Digital 2 x HDMI (1 x HDCP2.2)
Input: Computer 1 x D-sub 15-pin (RGB)
Input: Opt. HDMI 1 x USB A
Input: Control 1 x RS232c
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Trigger Out 3.5 mm mini-jack
Wireless Connectivity Optional
ADVANCED FEATURES
WirelessHD No
Super Resolution Yes
Image Enhancement Yes
Frame Interpolation Yes
4K Enhancement Yes
3D Formats Top-and-Bottom, Side-by-Side
2D to 3D Conversion Off / Weak / Medium / Strong
Internal Speakers No
Picture in Picture Yes
Direct Power On Yes
Security Kensington®-style lock provision
Colour Modes 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema
3D: 3D Dynamic, 3D Cinema
GENERAL
Dimensions D x W x H 450 x 520 x 193 mm
Weight Approx. 11kg
Lamp Warranty 1 Year or 750 Hours - Whichever comes first
Projector Warranty 2 Years
Power Consumption: Lamp on 355W
Power Consumption: Standby 0.35W
Noise Level Normal / Eco: 31 / 20 dB
Manual Download Epson EH-TW8300 User Manual

Supplied Accessories
Remote
EH-TW8100 Remote
Rear Panel
EH-TW8300 inputs
