Epson EB-970 LCD High Brightness Projector

EB-970







DISCONTINUED




NEW MODEL:
EB-972



Quick Facts:
Epson EB-970 Throw Distance Chart (Examples for common Sizes)
Throw Ratio: 1.38-2.24:1
Image Size Installation Distance
(Approx. To Lens)
84" (4:3) 1650x1237mm From 2.3m to 3.7m
100" (4:3) 2030x1523mm From 2.8m to 4.5m
120" (4:3) 2360x1770mm From 3.3m to 5.2m
SPECIFICATIONS
Native Resolution: XGA 1024 x 768 4:3
Brightness: 4000 ANSI Lumens
Maximum Contrast: 15,000:1
Weight: 3.0kg
Fan Noise: 37 / 28db (eco)
Warranty: 3 Years (+1 Year $85)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 12
,000hrs
FEATURES
- Vertical & Horizontal Keystone

- Powerful 16W Speaker

- 1.6x Zoom
- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- Instant Off
- Presentation Wireless - Optional

Epson EB-970 Corporate Multimedia Projector

The Epson EB-970 is designed to slot in as a perfect replacement for a current installation. With a 4:3 aspect ratio it can accommodate older installations without having to upgrade the screen and with a 4000 lumen brightness can handle a high ambient light environment. The 1.6x optical zoom provides flexibility of installation distance making the EB-970 a perfect choice for upgrading an older installation.

KEY FEATURES & BENEFITS

  • 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
  • Amazing Colour Brightness – 4,000 lumens colour and 4,000 lumens white brightness.
  • Crisp, Clear Resolution – Featuring XGA resolution for sharp images.
  • Epson iProjection – Wirelessly display and control from your iPhone®, iPad® or iPod Touch®, Android™, and Chromebook devices (wireless LAN needs to purchased separately).
  • Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment.
  • Low Cost of Ownership – Long life, cost efficient lamp and a high efficiency filter extends the life of your projector and allows for hassle free maintenance.
  • Auto Power on – Simply plug-in HDMI, USB or VGA cable to turn the projector on.
  • Built in Speaker – Presenting is easy with a built in speaker.
  • 3 Year Projector Warranty – Enjoy peace of mind.

High Brightness
With a combination of a whopping 4000 lumens brightness and a strong contrast ratio of 15,000:1 the Epson EB-970 is perfect for a high ambient light environment but still provides good shading and punchy colours. This allows for use in situations where you would like to keep the lights on and allows the audience to take notes and concentrate on the presenter.

3LCD technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD's true-to-life colour.

Collaborative Presenting

Multiple users can connect simultaneously to one projector using EPSON iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

With the EPSON iProjection App, you can even display and control content from your iPhone®, iPad®, Android™, and Chrome devices. Just turn on the projector, use the Epson iProjection App to scan the on-screen QR code, and share content on the big screen. (An optional ELPAP10 Wireless LAN unit is required for the EB-970).

iProjection

Easy image adjustments with auto vertical correction

The Epson EB-970 is designed for flexibility with both vertical and horizontal keystone allowing you place or install the projector off centre but still correct the angle for a square projection. The vertical keystone is automatic which means it will adjust to the up and down angle all on its own. For the horizontal keystone there is an easy slide adjuster which you slide left or right to square up the image quickly and easily.

H + V Keystone

Auto power on feature

The projector starts automatically upon connecting a VGA*, HDMI**, or USB cable to the device itself. This feature means you no longer have to use the power on button because startup is activated with cable insertion.
*VGA auto power on is available with Computer 1 only
**HDMI auto power on is available with HDMI1 only

Auto Power On

New home screen

The EB-970 comes with a new home screen design fir quick and easy access to a variety of useful functions and information. The new home screen provides all the basic source information at a glance and if you have installed the optional wireless all the Wifi setup information without having to look through settings menu’s.



EB-2265U Home Screen

Split Screen

The EB-970 Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

EB-970 Split Screen

Longer lamp life

The new Epson lamp design is included in the EB-970. This new design offers a longer life of up to 12,000 hours saving you down time and maintenance costs. On top of that the price of replacements has also been cut to just $79rrp reducing the total costs of ownership.



ELPLP96

Connectivity Panel

EB-970 Rear



Projector Screen Bundle



Specifications
PRODUCT NAME EB-970
PRODUCT CODE V11H865053
WHAT'S IN THE BOX
  Projector, 1.8m power cable, 1.8m computer cable, remote control, 2 x AA batteries, cover for optional wireless LAN unit
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.63-inch (D10)
OPTICAL
Zoom 1 - 1.6 Optical
Screen Size 30" to 300" [0.83 to 8.54 m] (Zoom:Wide)
30" to 300" [1.36 to 13.86 m] (Zoom:Tele)
Projection Distance 60" screen 1.69 m - 2.75 m
Throw Ratio 1.38 (Zoom: Wide), 2.24 (Zoom: Tele)
Projection Lens F Number 1.51 - 1.99
Projection Lens Focal Length 18.2 mm - 29.2 mm
Focus Method Manual Focus
Offset 8.6:1
Colour Light Output 4,000 Lumens
White Light Output 4,000 Lumens
Resolution XGA
Native Aspect Ratio 4:3
Contrast Ratio 15,000:1
Lamp Hours Normal/Eco: 6,000 Hours/12,000 Hours
Lamp Type 210W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 2 x HDMI (1 x MHL)
Input: Audio 2 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type A
Wireless LAN Optional
WiDI/Miracast N/A
Speaker Output 16W
ADVANCED FEATURES
Epson Projector Management Yes
Epson iProjection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Split Screen Yes
Instant Off Yes
Auto Power On Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision
Padlock
Security cable hole
Optional Wireless LAN Unit Lock
Password protect function
Colour Modes Dynamic
Presentation
Cinema
sRGB
Blackboard
GENERAL
Dimensions D x W x H (excluding feet) 282 x 309 x 90 mm
Weight 3.0kg approximate
Compatible Lamp Model ELPLP96
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal/Eco: 315W/225W
Noise Level Normal/Eco: 37/28dB

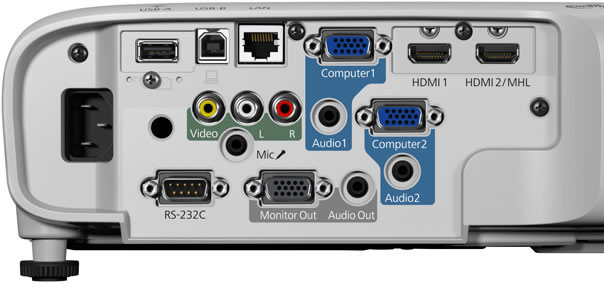

Rear Panel


EB-970 Rear
