Epson EB-2155W LCD High Brightness HD Widescreen Projector



EB-2155W









DISCONTINUED

FOR THE CURRENT RANGE CLICK HERE



Quick Facts:
Epson EB-2155W Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.5m to 4.0m
98" (16:10) 2110x1320mm From 3.0m to 4.7m
118" (16:10) 2540x1590mm From 3.6m to 5.7m
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 5000 ANSI Lumens
Maximum Contrast: 15,000:1
Weight: 4.5kg
Fan Noise: 39 / 29db (eco)
Warranty: 3 Years (+1 Year $129)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10
,000hrs
FEATURES
- Vertical & Horizontal Keystone

- Powerful 16W Speaker

- 1.6x Zoom
- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- USB reader (JPEG, GIF, BMP, AVI)
- Instant Off
- Presentation Wireless - Included

Epson EB-2155W Corporate Multimedia Projector

The powerful EB-2155W is engineered for a bright vibrant image. With a HD resolution and 5000 lumens brightness the EB-2155W is perfect in a well lit environment and with a selection of wired inputs and inbuilt wireless is a very versatile machine. The added flexibility of a 1.6x zoom and both horizontal and vertical keystone correction means the EB-2155W is very flexible for tricky installations.

KEY FEATURES & BENEFITS

  • 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Crisp Clear Resolution – WXGA image resolution (1280 x 800)
  • Versatile Connectivity – Easily integrate with any system with HDMI and MHL
  • Endless Wireless Functionality – Wi-Fi **Not for full motion video
  • Gesture Presenter – Simply move your hand in front of the presentation
  • Split Screen – simultaneously project two images, video or still, side by side, from two different sources
  • USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
  • Automatic Setup – The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
  • Remote Network Monitoring and Control – Plus Message Broadcasting and built-in schedule functions with EasyMP® software / Multi-PC Projection

3x Brighter Colours with Epson*

Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*.

One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.

*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

3LCD technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD's true-to-life colour.

EB-2165W resolution

Brilliant high definition image up to 300"

Featuring native resolution up to WXGA (1280 x 800), the Epson EB-2000 series delivers high quality images and crisp, sharp text without any distortion.

Images can be projected on a large screen with no information left out. This applies to video output devices such as PCs and smart devices with their ever increasing image quality and higher definition and accommodates a variety of content including 3D CAD, digital broadcasts, Blu-ray, and internet movies.

High brightness

Even though its light weight and compact size enables it to be carried from room to room, the projector is capable of highly visible images thanks to its high brightness (up to 5,000lm) and superior 15,000:1 contrast ratio. Room lights don't have to be dimmed to see bright and clearly projected images, allowing meeting participants to concentrate better for improved meeting productivity.

Auto V/H keystone and screen fit

In cases where the image extends beyond the frame of the screen or whiteboard you just have to push the "Screen Fit" button and the image frame automatically matches up with the edges of the screen.

H + V Keystone

Epson iProjection App

Display and control content from your iPhone, iPad or iPod touch, Android and Chrome devices with the Epson iProjection App. This free application allows road warriors to travel light and present from their mobile devices. The app is easy to use and intuitive menu options bring your content to the bigger screen.

iProjection

Auto power on feature

The projector starts automatically upon connecting a VGA*, HDMI**, or USB cable to the device itself. This feature means you no longer have to use the power on button because startup is activated with cable insertion.
*VGA auto power on is available with Computer 1 only
**HDMI auto power on is available with HDMI1 only

Auto Power On

Gesture presentation

Present smarter with newly added ‘gesture presentation’ function. Simply move your hand in front of the arrows, and make your presentation more engaging and realistic with the audience.

Gesture Presentation

Split Screen

Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

EB-2165W Split Screen

New home screen

New home screen offers quick and easy access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections can be made easily because all the information you need is right there on the screen.

EB-2165W Home Screen
Multi PC Projection

EasyMP Multi-PC projection

The EasyMP Multi PC Projection application makes it possible to connect with up to 50 computers and partition the screen for split screen projection.

The moderator can select up to 4 of the connected devices and project their screens from the projector, maintaining control and preventing interference with the projected screen.

EasyMP Monitor

With EasyMP Monitor, Epson's network monitoring and control software, a single PC can see which projectors are available and if they are running efficiently, even across the biggest of networks. This series can be configured remotely, with instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Each projector's serial number can also be accessed remotely via LAN/serial connection.

Wireless LAN Enterprise security

The EB-2000 series projectors now include ‘WPA-Enterprise security' mode to connect in robust integrated network environment; compatible with WPA, WPA2-PSK and WPA2-EAP security protocols.

PC Free Presentations With USB Meadia Reader

Easily present basic files from a memory stick without the need for a media player or computer. Image files and even video can be presented directly from a memory stick for extra versatility and portabilty. For best results format the stick file format to Fat16/32. File format and size limits apply see manual for more details.

PC Free Presentations USB reader

Longer lamp life

The long 10,000H* lamp life saves time and money by reducing the frequency of costly lamp replacements.
*Power Consumption: ECO mode

ELPLP95

Connectivity Panel

EB-2155W Rear





Specifications
PRODUCT NAME Epson EB-2155W
PRODUCT CODE V11H818053
EAN 9314020623783
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.59-inch panel
OPTICAL
Zoom 1-1.6 (Optical Zoom)
Screen Size 29" to 280" [0.85m to 8.45 m] (Zoom: Wide)
29" to 280" [1.40m to 13.71 m] (Zoom: Tele)
Projection Distance 60" screen 1.79m - 2.92m
Throw Ratio 1.38 (Zoom: Wide), 2.24 (Zoom: Tele)
Projection Lens F Number 1.51 - 1.99
Projection Lens Focal Length 18.2mm - 29.2mm
Focus Method Manual Focus
Offset 10:0
Colour Light Output 5,000 Lumens
White Light Output 5,000 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 15,000:1
Lamp Hours Normal/Eco: 5,000/10,000 Hours
Lamp Type 300W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device 1 x USB Type A
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 2 x HDMI (1 x MHL)
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, 1 x RS232C
Input : HDBaseT NA
Input: Epson USB Document Camera 1 x USB 2.0 type A
Network I/O: 1 x RJ45 (100Mbps)
Wireless Connectivity Included
WiDI/Miracast NA
Output: Video 1 x D-sub 15 pin (black moulding)
Output: Audio 1 x Stereo mini jack
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Auto Power On Yes
Direct Power On/Off Yes
Security Padlock & Security Cable Hole
Kensington®-style lock provision
Wireless LAN Unit Lock
Password protect function
Colour Modes Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM
GENERAL
Dimensions D x W x H (excluding feet) 291 x 377 x 101 mm
Weight 4.5kg (approximate)
Compatible lamp model ELPLP95 (New)
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal/Eco: 420/350W
Power Consumption: Standby 0.5W (communication off)
Noise Level Normal/Eco: 39/29dB

Manual Download Epson EB-2155W User Manual

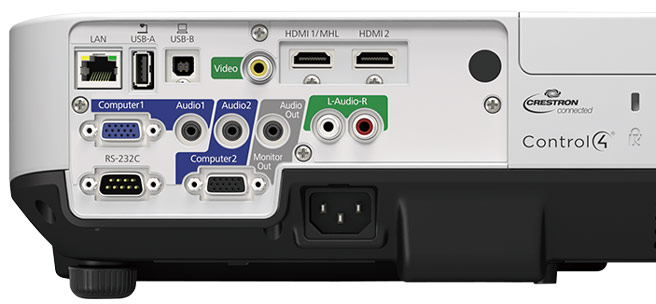

Rear Panel


EB-2155W Rear
