BenQ W11000 DLP Ultra HD 4K Home Theatre Projector

W11000







Australian 2 Year Warranty


DISCONTINUED

For the current BenQ Range Click here

Quick Facts:
BenQ W11000 Throw Distance Chart (Examples for common Sizes) TR: 1.37-2.06:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 2.8m to 4.1m
100" (16:9) 2130x1200mm From 3.0m to 4.4m
110" (16:9) 2435x1370mm From 3.4m to 5.0m
120" (16:9) 2580x1450mm From 3.6m to 5.3m
SPECIFICATIONS
Native Resolution: UHD 3840 x 2160 16:9
Brightness: 2200 ANSI Lumens
Maximum Contrast: 50,000:1
Weight: 14.8kg
Fan Noise: 26 / 23db (eco)
Warranty: 2 Years (+1 Year $339)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 6,000hrs
FEATURES
- Rec. 709 Colour Calibration
- Flawless All Glass Optics
- Pixel/Colour/Flesh Tone Enhancer
- Vertical Lens Shift ±65%,
- Horizontal Lens Shift ±27%
- 2x HDMI connections
- 12 Volt Trigger

World’s First THX Certified DLP 4K UHD Projector Brings Authentic Cinematic Performance to Your Own Home Cinema.

The world’s first DLP 4K UHD home cinema projector, W11000 achieves prestigious THX® HD Display Certification* to deliver authentic reproduction of the director’s vision, rivaling the picture quality of a commercial digital cinema. Producing 8.3 million distinct pixels for dazzling clarity without panel-related artifacting, and THX Certification for extraordinary picture quality, W11000 offers cinematic image quality with absolute Rec. 709 color accuracy and stunning 50,000:1 dynamic contrast for an ultra-realistic widescreen film viewing experience. With intelligent functionality and installation flexibility, W11000 is comprehensively equipped to integrate seamlessly into any upscale home cinema.

key features

  • 4K UHD with Razor-Sharp True 8.3 Million Pixel Detail
  • Distinct Clarity Without Artifacts from Panel Misalignment
  • THX Certification for Guaranteed Superb Cinematic Performance
  • Rec. 709 HDTV Standard for Finest Cinematic Color
  • Ultra High Contrast Performance
  • H/V Lens Shift & Big Zoom Lens for Installation Flexibility

W11000 Home Theatre

Reference-Grade DLP 4K UHD Home Cinema Projector with THX Certified Performance for True Videophiles

Generating 8.3 million razor-sharp pixels, BenQ W11000 is the one and only THX Certified DLP 4K UHD home cinema projector with perfect DLP picture quality to rival a commercial digital cinema with seamless integration into any home screening room.

Breathtaking 8.3 Million Pixel Picture Quality without Artifacts

4K UHD True 8.3 Million Pixel Performance for Perfect Pictures with Subtle Details

W11000 harnesses the advanced DLP 4K UHD DMD with 2716 x 1528 (4.15 million) micromirrors to achieve Consumer Technology Association's (CTA) 4K UHD specification, utilizing XPR fast-switching technology via dual-position precision optical actuator with state-of-the-art image processing to double the resolution to 8.3 million distinct pixels for each frame, four times the resolution of Full HD 1080p. Awe-inspiring 4K UHD image quality reduces blur between pixels to deliver supreme clarity and crisply defined fine details.

W11000 Resolution

Image Detail Integrity and Color Accuracy Without Artifacts

With single DMD DLP technology to avoid inherent alignment issues of multiple panels, W11000 presents image integrity and accurate color, especially important with ultrafine 4K pixels much smaller than 1080p pixels. W11000 generates razor-sharp images and accurate colors devoid of artifacting such as blur, shadowing, and interference patterns for immaculate clarity.

W11000 artifacts

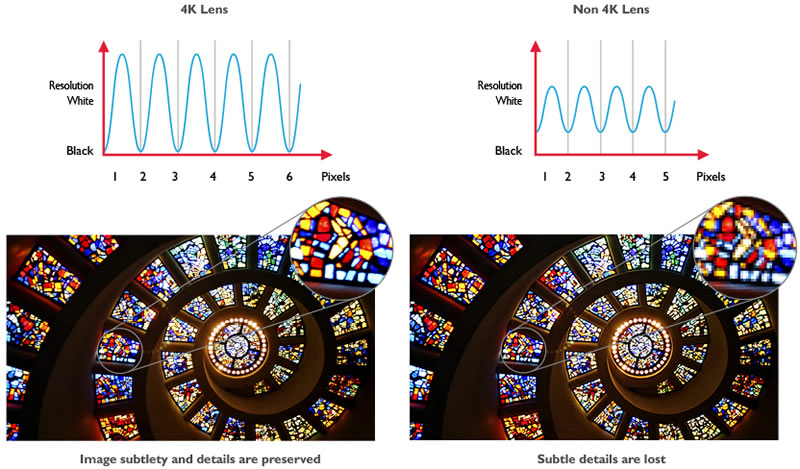

Sophisticated 4K-Optimized Lens System for Pure Clarity

With class-leading lens architecture, W11000’s optical engine is specifically designed for spectacular 4K image quality, offering True Zoom function and presenting the best viewing quality with flawless optics.

W11000 Lens

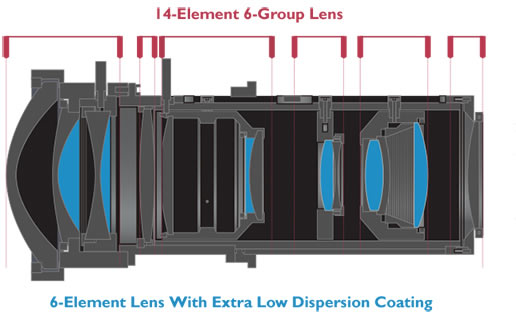

High-Precision 14-Element 6-Group Lens Array

Super-high resolution 14-element lens array is structured into six groups with metal barrel and cell framework, far outshining 1080p projector technology with greater light penetration for long-lasting 4K intensity with heart-stopping color performance, clarity, and sharpness across the entire screen.

W11000 Lens Precision

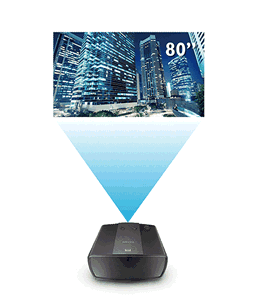

Synchronized True Zoom and Focus System for Ultimate Precision

W11000’s True Zoom system adjusts automatically to follow focus adjustments, optimizing the zoom ratio to deliver visually perfect focus without blemish. The three focusing lens groups adjust simultaneously with the zoom lens group to negate any curved field for immaculate cinematic performance and high-precision clarity at every corner of the image.

W11000 Precision Lens

Flawless Optics for the Best Viewing Quality

The BenQ 4K optical system uses only the highest grade glass for superior light penetration and realistic image quality. Proprietary low-dispersion lens coatings minimize chromatic aberration, so you can enjoy your favorite 4K UHD content in brilliant clarity.

W11000 Lens Dispersion



THX Certification Guarantees Authentic Cinematic Performance

Reserved only for best-in-class audio and video systems, THX Certification guarantees equipment for accurate reproduction of content as the director originally intended. Our crowning achievement, W11000 delivers Rec.709 color accuracy, precise gamma, ideal color temperature, enhanced uniformity, super high native contrast ratio, and THX Mode, pre-calibrated by THX engineers for the most accurate out-of-the-box picture quality possible, to recreate every single detail of the authentic content and image quality filmmakers wanted you to see.

How Our Projectors Achieve THX Certification

To earn this prestigious and exclusive distinction, BenQ engineers pursued over 18 months of rigorous development comprising 200 THX laboratory tests covering over 500 data points. This intensive development process involved 10 times as much data analysis and 7 times the engineering effort and resources in precise color and gamma adjustments as required for pure Rec. 709 compliance, resulting in supreme overall image performance to pass 3 rounds of live testing at THX’s San Francisco headquarters.

Rec. 709 HDTV Standard for the Finest Cinematic Color Authentic HDTV Color Accuracy

Rec. 709 is the international HDTV standard to guarantee accurate replica of cinematic color as the director intended.


W8000 REC Colour
With 6X Speed RGBRGB Color Wheel, W11000 is calibrated for cinematic color modeled on the HDTV standard, Rec. 709, to deliver refined colors that are the truest possible reproduction of the original palette of your video. REC709 Colour
W2000 Colour Wheel

How Our Projectors Are Designed for Rec. 709

Only displays that conform to Rec. 709 can reproduce colors correctly in all images through an entire movie. While most projector manufacturers choose a saturated color tone bias to increase colorfulness, resulting in color accuracy loss, W11000 achieves the Rec. 709 color standard. The process of building a projector includes many variables such as lenses, lamps and color wheel coating. We work relentlessly to close any gaps from those variances and to make our projectors perform exactly to Rec. 709. This is because we believe that colors matter to our users when enjoying movies as they were meant to be seen.

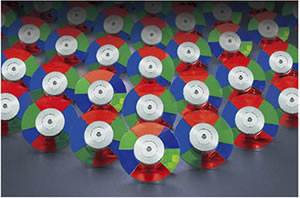

Hardware Design

BenQ’s ISF-trained expert engineers tried more than 20 different combinations of color segments and color wheel coating, the factors that directly affect color gamut and brightness of a projector.

W11000 Hardware
W11000 Software

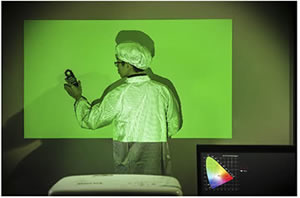

Software Optimization

To maximize color accuracy, the process of software optimization involved adjusting the blacks, whites and greys towards D65 defined by Rec. 709. And the three primary and three secondary colors were adjusted one by one, until they were as close as possible to the references on the Rec. 709 color gamut.

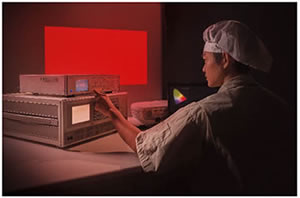

Production Line Quality Control

Three color adjustment stations in the production line perform final checks on every single unit of our Rec. 709 projectors. Using exclusive BenQ color adjustment procedures, we make sure each projector is manufactured according to the Rec. 709 color standard, and BenQ quality engineers perform final color tests on each projector built to ensure Rec. 709 performance.

W11000 Quality Control

High Native Contrast for the Finest Details

As one of the most important characteristics that determine the picture quality performance, native ANSI measures the ability of projectors to produce extreme levels of brightness and darkness. Generating industry-leading levels of high native ANSI contrast ratio performance, W11000 produces clearly deep, true blacks and resolves subtle layers and fine details in dark and bright scenes without washout.

W11000 Lens Dispersion

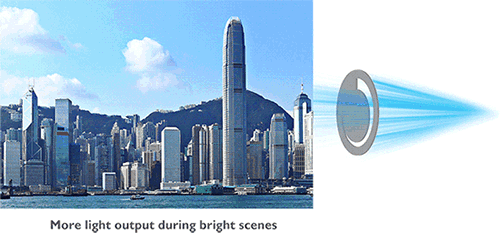

Dynamic Black Technology with Active Iris Control for Intelligent Contrast Optimization

Active iris controls the amount of light passing through the optical system to optimize contrast performance according to the scene. Dynamic Black™ technology analyzes the brightness levels of the scene to ideally adjust light output and contrast. Working to bring out subtle details in dark shadows and preventing bright scenes from becoming washed out, W11000 delivers impressive contrast for true black rendition and amazing picture depth, details, and clarity.

W11000 Iris

Special Black-Paint Sealed Light Engine

BenQ takes extra countermeasures to guard against the small possibility of stray light leakage from the light tunnel affecting contrast and obscuring fine details, a special black paint seals the W11000 light engine to boost contrast and render even the slightest details in the darkest scenes.

Precise Gamma Control

W11000 maintains accurate gamma correction to deliver the perfect brightness balance for fine details and shading, with smooth greyscale performance to prevent overexposed bright scenes and preserve every subtlety in dark areas.

Ideal Color Temperature

W11000 strictly adheres to ideal color temperatures to ensure true-to-life, cinematically accurate colors throughout every scene of any film.

W11000 colour temperature

State-of-the-Art Image Uniformity via TIR

BenQ’s pioneering Total Inner Reflection (TIR) optical system utilizes multiple prisms forming precise beam angles, dispersing light to reflect more uniformly from the Digital Micromirror Device (DMD) and register beautifully even color, brightness, and fidelity across the entire projected image. The result is pristine image quality without blemish across the entire big screen, with nothing to distract the audience from flawless cinema enjoyment.

W11000image uniformity

BenQ SmartEco™

An ingenious solution that intensifies your viewing pleasure while saving energy, SmartEco™ automatically adjusts lamp brightness based on content to project richer blacks and increase contrast for tiny text and subtle details.

W8000 smart Eco

Cinemaster+

CinemaMaster

CinemaMaster turns any room into a world-class home theater with video and audio-enhancing technologies sure to please even the most critical movie enthusiasts:

4K Pixel Enhancer

4K Pixel Enhancer is a motion-adaptive edge enhancement feature that detects changes in color between an object and its background to produce sharp edges and precise surface textures.

Pixel Enhancer

Color Enhancer

Color Enhancer modulates complex color algorithms to flawlessly render saturated colors, fine gradients, intermediate hues and subtle pigments.

Colour Enhancer

Flesh Tone

The Flesh Tone feature prevents discoloration of skin tones from the light of the projection beam, portraying every skin tone in its most beautiful shade.

Flesh Tone enhancer

Digital Color Transient Improvement (DCTI) &
Digital Luminance Transient Improvement (DLTI)

Sophisticated algorithms significantly improve color and light output when producing images with contrasting colors or bright and
dark scales. DCTI heightens color vibrancy for drastic color transitions without noise interference. DLTI reduces noise from fast
switching of varied luminances to optimized brightness and contrast. The result is picture quality with the utmost picture depth and
color performance.

DCTI

Expanded Viewing Angle for Truly Immersive Movie Enjoyment

With anamorphic 2.35:1 cinema-wide format support, W11000 provides a truly immersive movie-going experience with expansive viewing angles befitting its grand cinematic performance.

Ultra-Wide 2.35:1 Anamorphic Format for Genuine Cinema Experience

W11000 offers ultra-wide 2.35:1 aspect ratio with native support for Panamorph anamorphic lenses enabling full-pixel cinemascope experiences, exactly as would be seen in a commercial digital cinema. W11000 is capable of filling an ultra-wide cinematic 2.35:1 screen by utilizing an optional anamorphic lens, for authentic digital cinema immersion in the original film format without distracting letterbox bars.

W11000 Anamorphic

Expanded Viewing Angle for Truly Immersive Movie Enjoyment

W11000 opens a wider viewing angle to allow comfortable viewing seated close to the screen and to maximize the useable screen size within a given space, with a 55° viewing angle at 1.5X PH (picture height) for a 16:9 screen and a 48° viewing angle at 2X PH for a 2.35:1 screen. The ultra-detailed 4K UHD picture quality on a grand scale delivers a mesmerizingly immersive movie watching experience.

Beautifully Functional Design to complement any Décor

W11000 is styled with a thoroughly modern design to complement upscale home cinema, blending seamlessly into existing aesthetics without any need for renovation.

Sleek Front-Facing Ventilation Design for Custom Screening Rooms

W11000’s front-facing ventilation and sleek, simple design is suitable for subtle ceiling-mount, hidden, cabinet, or wall inset installations. The minimalist design blends into any existing interior design and creates flexible installation opportunities.

W11000 Cooling
W11000 Connections

Advanced Interface Design for Simplified Configuration

W11000’s unobstructed port layout separates the power and video signal to eliminate interference without visible clutter, with enough buffer space clearance to accommodate thick high-quality cables and HDMI / power cable locks to hold them securely in place.

Flexible Adjustments for Perfect Screen Alignment

Fitting perfectly into home cinemas and installation sites of any size, W11000 offers powerful, yet user-friendly adjustment tools for professional installations with ease.

H/V Lens Shift for Custom Screen Placement

W11000’s lens can be shifted vertically or horizontally within the projector for a dynamic range of projection locations. The projected image can be moved up/down or left/right without sacrificing image quality for a custom installation in any room.

W11000 Lens Shift

1.5X Big Zoom Expands Installation Opportunities

W11000 offers 1.5X big zoom for a wide range of throw distances to significantly increase installation flexibility for diverse mounting and placement options, turning any space into a truly inspirational home cinema.

W11000 Zoom







Specifications
Projection System‎ DLP 4K UHD ‎
Native Resolution‎ 3840 x 2160 with XPR technology ‎
Brightness*‎ 2200lm‎
Contrast Ratio‎ 50,000:1 with Dynamic Iris ‎
Display Colour‎ 1.07 Billion Colors ‎
Lens‎ F=2.05 f= 20.5~30.4 ‎
Aspect Ratio‎ 16:9 ‎
Throw Ratio‎ 1.37 - 2.06 (100" @ 3m) ‎
Clear Image Size Maximum Image Size‎ 95"~180" / 300" ‎
Zoom Ratio‎ 1.5:1 ‎
Lamp Type‎ PHILIPS 240W E22.7 ‎
Lamp Mode (Normal/Eco/SmartEco)*‎ 3000 / 4000 / 6000 hours ‎
Lens Shift‎ Vertical: ± 65% / Horizontal: ± 27% ‎
Resolution Support‎ VGA(640 x 480) to 4K2K_RB (4096x2160) *RB = Reduced Blanking ‎
Horizontal Frequency‎ 15 - 102KHz ‎
Vertical Scan Rate‎ 23 - 120Hz ‎
HDTV Compatibility‎ 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2560x1200, 3840x2160, 4096x2160 ‎
Video Compatibility‎ NTSC, PAL, SECAM ‎
Interface‎ PC (D-Sub) x 1
HDMI x 2 (HDMI1 2.0 / HDCP 2.2 support x 1)
USB (Type mini B) x 1 (Service)
LAN x 1
RS232 x 1
DC 12V Trigger x 2
IR Receiver x 2 (Front & Back)
IR in x 1‎
Dimensions(W x H x D)‎ 470.7 x 224.9 x 564.7 mm ‎
Weight‎ 14.8 kg ‎
Audible Noise Normal Economic Mode‎ 26 / 23 dBA (under Silence Mode)‎
Power consumption‎ Normal 353W, Eco 290W, Network Standby <6W, Standby <0.5W ‎
Colour Wheel Segment‎ 6-Segment (RGBRGB) ‎
Colour Wheel Speed‎ 6x (50Hz), 4x (60Hz) ‎
On-Screen Display Languages‎ Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) ‎
Picture Modes‎ ** ISF Disabled: Bright / Vivid / Cinema / THX / Silence / User 1 / User 2
*** ISF Enabled: Bright / Vivid / Cinema / THX / Silence / User 1 / User 2 / ISF Night / ISF Day‎
Accessories (Standard)‎ Lens Cover
Remote Control with Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card‎
Power Supply‎ AC100 to 240 V, 50 to 60 Hz ‎

Rear Panel
W11000 Rear
