BENQ TH683 DLP Full HD Widescreen Projector



Your Price: $949

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available

Quick Facts:
BenQ TH683 Throw Distance Chart (Examples for common Sizes) T/R: 1.15-1.5:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 2.4m to 3.0m
100" (16:9) 2130x1200mm From 2.5m to 3.1m
110" (16:9) 2435x1370mm From 2.8m to 3.6m
120" (16:9) 2580x1450mm From 3.0m to 3.8m
Native Resolution: WUXGA 1920 x 1080 16:9
Brightness: 3200 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 2.65kg
Fan Noise: 34 / 29db (eco)
Warranty: 2 Years (+1 Year $85)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 10,000hrs

- 2x HDMI Connection
- Vertical Keystone Correction
- Powerful 10W Speaker
- 3D Capable(3D glasses required)
- Optional Wireless


The Best Way to Enjoy the Beautiful Game

BenQ TH683 with Football Mode is just the all-in-one projector you need to enjoy home entertainment. Featuring Full HD 1080P resolution with 3200 ANSI lumens and 10000:1 high contrast ratio, TH683 also offers multi display for ultra-smooth connection to keep your enjoy high image quality without worry!

key features

  • Football Mode for Brilliant Audiovisual Experience
  • Native 1080P Full HD
  • Up to 3200 Lumens
  • CinemaMaster Audio Enhancer
  • MHL Mirror the Screen of Smart Device


BenQ TH683 1080p Home Projector for entertainment in Well-lit Environment

The Best Way to Enjoy the Beautiful Game
Football Mode Brings Every Player, Every Goal, Every Blade of Grass to Life.

When it comes to the big sports event, BenQ believes there's only one way to fully enjoy the beautiful game. Whether your friends are gathered for a backyard BBQ or in a bright living room watching football, a huge 100"+ projected Full-HD picture with amazing audio can't be beat. That's why we invented Football Mode for TH683, so fans can truly feel like they're in the stadium as part of the action.

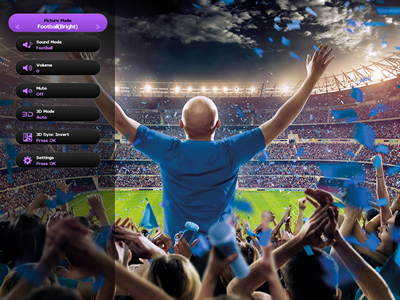

TH683 Fottball mode Football Picture Mode
Blending precision color tuning with digital enhancement for ultra-realistic skin tones and lush green grass, Football Picture Mode of TH683 provides stunning big-screen projection to make every second of the match seem larger than life. Football (Bright) Mode is available and further optimized for the well-lit environment.
Football Sound Mode
With Football Sound Mode, you'll hear the announcer's every comment even as you're immersed in the cheering crowd with Football Sound Mode.

Brilliant Audiovisual Performance

Showcase Full-HD content in sharp, 1080p definition and enjoy Blu-ray, video games and HD broadcasting in beautiful, high-contrast quality without downscaling or compression.

TH683 Full HD

High Brightness

A 3200 lumens high brightness projector ensures you watching image in a relatively bright setting or even with a light-on environment. It is ideal for home entertainment because you can watch sport games and movies with your family by seeing their enjoyment on their faces.

Cinemaster Audio CinemaMaster turns any room into a world-class home theater with audio-enhancing technology sure to please even the most critical movie enthusiasts. With 10-watt speakers housed in resonant sound chambers plus BenQ Audio Enhancer, your sound booms with breakthrough algorithms used by Hollywood studios, to dramatically boost bass and treble for serious stereo sound.

Easy and Simple Operation

Vertical Keystone

When the projector is placed off center, the keystone correction feature gives you a wider projector installation flexibility by correcting the trapezoid effect.

TH683 Keystone

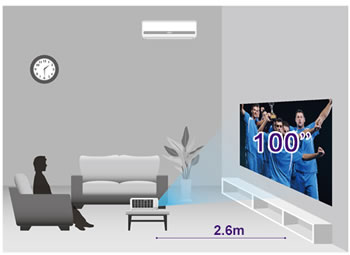

Superior Short Throw Projection with 100” of Big-Screen Enjoyment at 2.6 Meters

Maximize thrills in minimum space with BenQ home projectors that require as little as 2.6m to project stunning 100” pictures. Bring big-screen theater entertainment into whichever room you like.

TH683 Short Throw Distance

Intuitive User Interface Design Made Smarter

TH683 is made utterly simple to operate with a whole new self-explanatory user interface design that’s easy for anyone to figure out.

TH683 Keystone
The advanced Auto Source Detection, which now detects the input source with half the original speed, even highlights the detected source with the color green to signal ‘go’ with this source. And for setting up the TH683 for the very first time, simply follow the step-by-step visual instructions provided on the friendly user interface of the setup wizard. You’ll be done with the setup process before you know it. TH683 Ceiling Mount

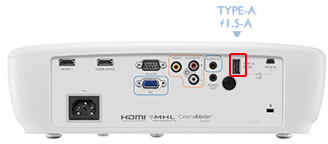

TH683 12Volt Power

1.5A USB Type-A Power Supply

You can charge your video streaming dongles or mobile devices through 1.5A USB Type-A power supply providing sufficient power while streaming sports events.

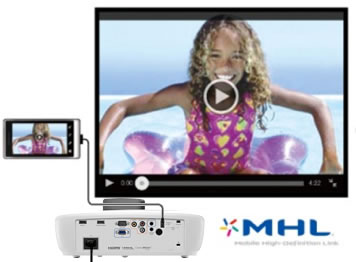

MHL Connectivity

With the support of MHL technology, you can stream content from your smartphone or tablet instantly. Simply connect your device via a MHL cable and watch the flawless mirroring of contents expanded onto the projector screen.


Closed Captioning

Display subtitles in video content without the need for an external closed-captioning device with the TH683.

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

No Source Detected Mode

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Projector Screen Bundle


Projection System‎ DLP‎
Native Resolution‎ 1080p (1920x 1080) ‎
Brightness (ANSI Lumens)‎ 3200 AL‎
Contrast Ratio‎ 10000:1 ‎
Display Color‎ 1.07 Billion Colors‎
Lens‎ F=2.59~2.87, f=16.88~21.88mm‎
Aspect Ratio‎ Native 16:9 (5 aspect ratio selectable)‎
Throw Ratio‎ 1.15-1.5‎
Image Size (Diagonal)‎ 60"~180"‎
Zoom Ratio‎ 1.3:1‎
Lamp Type‎ 210W‎
Lamp Mode (Normal/Economic/SmartEco/LampSave)*‎ 3500/5000/7000 hours‎
Keystone Adjustment‎ 1D, Vertical +/- 40 degrees‎
Projection Offset**‎ 115%±5%‎
Resolution Support‎ VGA(640 x 480) to WUXGA(1920 x 1200)*RB-Reduced blanking‎
3D Compatibility‎ Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p‎
Horizontal Frequency‎ 15~102KHz‎
Vertical Scan Rate‎ 23~85Hz‎
HDTV Compatibility‎ 480i, 480p, 576i, 576p, 720p, 1080i, 1080p‎
Video Compatibility‎ NTSC, PAL, SECAM‎
Weight (Without Packing / With Packing)‎ 2.65kg‎
Dimensions (W x H x D mm)‎ 346.24 mm (W) x 101.70 mm (H) x 214.81 mm (D)‎
Interface‎ PC in (D-sub 15pin) x1
HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1)
MHL x 1(HDMI with MHL2.0)
Audio in (RCA) x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 10W x 1
USB (Type mini B) x1 (Download)
USB (Type A) x1 (Charger)
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Rear) ‎
Power Consumption‎ 270 W(Normal), 220 W(Eco), Standby <0.5W‎
Power Management Function‎ Automatic power off after 20 minutes without a display source.‎
Picture Modes‎ ** Bright / Football /Football(Bright) / Cinema / Game/ User‎
Audible Noise (typ.)‎ 34/29 dBA (Normal/Economic mode) ‎
On-Screen Display Languages‎ Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)‎
Accessories (Standard)‎ Power Cord (by region)
Remote Control w/ Battery
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable ‎
Supplied Accessories
Rear Panel
TH683 Rear

Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty


Kensington 2.4Ghz Wireless Presentation Remote - With Red Laser Pointer
Your Price:

Normally $99.95

Projector Remote


  • Wireless range up 50 meters
  • Red Laser Pointer
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]

Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes

Optoma HDCast Pro Wireless Presentation HDMI Adapter
Your Price:

WAS $149 SAVE $50

Ends 30th March

• Stream your presentation wirelessly with Wifi or Miracast
• Plugs into any HDMI port
• Connect with a Smartphone or tablet, Laptop or Macbook
• Compatible Operating Systems:
Windows 7 / 8 / 8.1 / 10, MacOSX 10.9 +, Android 4.0+, iOS 8+

• Can be powered through most MHL or USB 1.5A ports

Commercially available USB power adapter may be required

[More Information]

HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
5 Metres
10 Metres
15 Metres
20 Metres

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty

VGA Cable

Premium VGA Monitor Cable

5 Metres
10 Metres
15 Metres
20 Metres
30 Metres

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
