BENQ MW705 DLP HD Widescreen Projector

MW705


BenQ Logo



DISCONTINUED

For the current BenQ Range Click here

Quick Facts:
BenQ MW705 Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.8m to 3.0m
98" (16:10) 2110x1320mm From 3.3m to 3.6m
118" (16:10) 2540x1590mm From 3.9m to 4.3m
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 4000 ANSI Lumens
Maximum Contrast: 13,000:1
Weight: 3.0kg
Fan Noise: 31 / 28db (eco)
Warranty: 2 Years (+1 Year $85)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 7,500hrs

FEATURES
- HDMI Connection
- Vertical Keystone Correction
- Horizontal Keystone Correction
- Powerful 10W Speaker
- 3D Capable(3D glasses required)
- Optional Wireless



Presentations Made Easy

Brilliantly powerful yet simple to use, the BenQ MW705 business projector turns your bright ideas into effective presentations. Its sleekly modern design quietly delivers 4000 lumens bright image and with the ease of one-touch controls, even for wireless streaming makes presenting a breeze. Look no further, the MW705 is smartest professional projection solution.

key features

  • WXGA (1280x800) resolution
  • 4,000 ANSI lumens
  • Dual HDMI, MHL x 1
  • H + V keystone image adjustment
  • Optional wireless presentation on the go

Powerfully Bright and Whisper Quiet

Fan noise on conventional high-brightness projectors can be loud. The MW705 was designed to operate at whisper quiet noise levels. Even at its bright 4000 lumens level, the MW705 measures only 31dB. Virtually silent and super brilliant, your presentation will command your audience’s full attention with no distracting fan noise.

Easy QCast Wireless Streaming

The MW705 features a convenient integrated docking port to house the optional BenQ QCast wireless streaming dongle, providing seamless wireless integration for easy, effective, cable-free presentations. All-new one-touch controls for EcoBlank and QCast wireless streaming on both, the remote and projector keypad make it easy to pause presentations by blanking the screen or to quickly launch QCast wireless Full HD 1080p streaming.

TH670 Full HD

High Contrast

A high contrast ratio ensures that text, images, graphs, charts and videos are projected with optimal clarity and enhanced sharpness, especially for numerical data. The MW705 is intended for demanding presenters who want their content to be clearly seen by every person in the audience.

MW705 Contrast

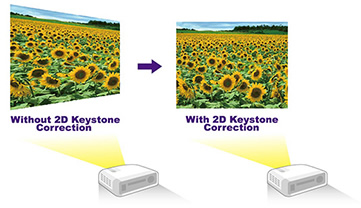

2D Keystone Geometric Correction

2D keystone correction provides installation flexibility by correcting the trapezoid effect via horizontal and vertical adjustments up to ±30 degrees. With it, the projector can be placed off center, allowing the presenter to stand in front of the screen without blocking the image. The projector can also be placed anywhere on a u-shaped tabletop without moving the table or putting a stand in the center.

MW705 Keystone
MW75 Cornerstone

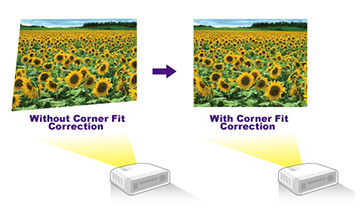

Corner Fit Geometric Correction

Corner fit Geometric Correction is a flexible and convenient way to align the picture perfectly on the screen by independently adjusting each corner of an image.

MHL Connectivity

With MHL, you can use an Android smartphone or tablet to deliver presentations, business proposals and other content to instantly share your ideas. Turn small screen into big screen by mirroring documents, photos, videos and any other content in your smart device on the projection screen. Once connected, the smart device will be charged by the projector so it will never run out of battery power while presenting.

MW705 Contrast

Various 3D Format Supported

MW705 is standard-equipped with DLP Link™-supported 3D projection to offer you the same amazing 3D effects seen in 3D movies. The 3D formats supported by the MW705 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. Furthermore, this incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

No Source Detected Mode

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Multi-Function Connectivity

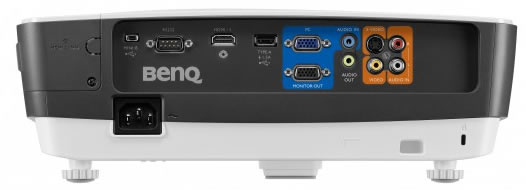

MW705 Rear



Specifications

Projection System DLP
Native Resolution WXGA (1280x800)
Brightness* (ANSI Lumens) 4000 ANSI Lumen
Contrast Ratio 13000:1
Display Color 1.07 Billion Colors
Lens F=2.56~2.68, f=22.04~24.14mm
Aspect Ratio Native 16:10 (5 aspect ratio selectable)
Throw Ratio 1.55~1.7 (Wide 87"±3% @ 2.9m)
Image Size (Diagonal) 60" ~ 180"
Zoom Ratio 1.1x
Lamp Type 240W
Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)* 2500/4000/6000/7500(80%~30%) hours
Keystone Adjustment 2D, Vertical & Horizontal ± 30 degrees; Auto vertical keystone ± 30 degrees
Projection Offset Vertical: 100% ±5%
Resolution Support VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency 15K-102KHz
Vertical Scan Rate 23-120Hz
Interface Computer in (D-sub 15pin) x1( integrate with component)
HDMI x2 (HDMI with MHL2.0 x1 internal for Qcast, HDMI x 1)
Monitor out x 1
Composite Video in (RCA) x 1
S-Video in x 1
Audio in (Mini Jack) x 1
Audio in (L/R) x1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type A) x 1 (1.5A power supply)
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Top)
Dimensions (W x H x D mm) 13.03 x 4.5 x 9.69 inches (331.0 x 114.4 x 246.2mm) - without foot
13.03 x 5.09 x 9.69 inches (331.0 x 129.4 x 246.2 mm) - with foot
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
3D Support and Compatibility Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p
Audible Noise (Normal/Economic Mode) 31/28 dBA (Normal/Economic mode)
On-Screen Display Languages Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ TraditionalChinese (28 Languages)
Picture Modes **Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2
Accessories (Standard) Power Cord (by region)
Remote Control w Battery
VGA cable
User Manual CD
QSG
Lens Cover
Warranty Card (by region)
Accessories (Optional) Spare Lamp Kit P/N: 5J.JEC05.001
Video Streaming Dongle - QCast P/N: 5J.JCK28.A01
Ceiling mount kit P/N: 5J.JAM10.001
3D Glasses P/N: 5J.J9H25.001
Power Supply AC100 to 240V, TBD A, 50 to 60 Hz
Power Consumption 350W(Normal), 261W(Eco), Standby <0.5W
Weight 6.61 lbs (3Kg)
Supplied Accessories
Remote
Rear Panel
MW705 Rear
