Bright Choice for Full HD Projection

The BenQ MH741 is ideal for use in medium to large size conference rooms, training rooms, higher education and houses of worship. With a powerful 4000 lumens and a remarkable 10,000:1 contrast ratio the MH741 delivers bright large-screen presentations with fantastic image clarity, outstanding color accuracy and incredibly sharp image detail to make your presentations shine.

key features

• Full 1080p (1920x1080) resolution

• 4,000 ANSI lumens

• 10,000:1 high contrast ratio

• Full HD 3D support

• Optional Wireless Presentation by Qcast

• HDMI x 2, MHL

Brilliant Image Performance

Full HD 1080P

Showcase Full-HD content in sharp, 1080P definition and enjoy Blu-ray, video games and HD broadcasting in beautiful, high-contrast quality without downscaling or

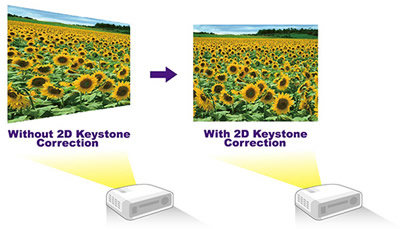

2D Keystone 2D keystone correction enhances installation flexibility by correcting the trapezoid effect via horizontal and vertical adjustments up to ±30 degrees. With it, the projector can be placed off center and the presenter can stand in front of the screen without blocking the image. The projector can also be placed anywhere on a u-shaped tabletop without moving the table or putting a stand in the center.

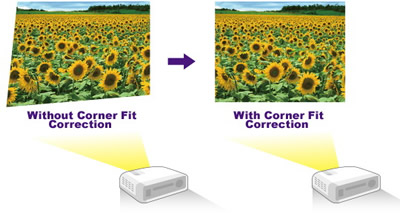

Corner Fit Corner fit is a flexible and convenient way to align the picture perfectly by adjusting each corner of an image independently.

MHL Connectivity

With MHL, you can present your business proposals and share your ideas instantly using your Android smart device. Turn small screen into big screen by mirroring documents, photos, videos and any other content in your smart device onto the projection screen. Once connected to the projector, the smart device will be electrically charged so you don’t run out of battery power while presenting.

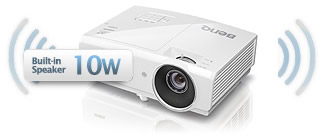

Built-in 10W Speaker Power The MH741 comes with enhanced audio support for your classroom, delivering crisp-clear audio performance with built-in 10W speaker power. Now, teachers can teach with ease and students can learn more effectively.

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

No Source Detected Mode

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Multi-Function Connectivity

Specifications

Projection System‎ DLP ‎ Native Resolution‎ 1080P (1920x1080)‎ Brightness* (ANSI Lumens)‎ 4000AL‎ Contrast Ratio‎ 10000:1‎ Display Color‎ 1.07 Billion Colors‎ Lens‎ F=2.59~2.87, f=16.88~21.88‎ Aspect Ratio‎ Native 16:9 (5 aspect ratio selectable)‎ Throw Ratio‎ 1.15-1.49 (Wide 95” ±3% @ 2.42m)‎ Image Size (Diagonal)‎ 60" ~ 196"‎ Zoom Ratio‎ 1.3x‎ Lamp Type‎ 260W‎ Lamp Mode (Normal/Economic/SmartEco/)* 2500/3500/4500 hours Keystone Adjustment‎ 2D, Vertical & Horizontal ± 30 degrees; Auto vertical keystone ± 30 degrees‎ Projection Offset‎ Vertical: 130% ±5%‎ Resolution Support‎ VGA(640 x 480) to WUXGA_RB(1920 x 1200)*RB = Reduced blanking‎ Horizontal Frequency‎ 15K-102KHz ‎ Vertical Scan Rate‎ 23-120Hz‎ Interface‎ Computer in (D-sub 15pin) x1( integrate with component) HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1) MHL x 1(HDMI with MHL2.0) Monitor out x 1 Composite Video in (RCA) x 1 S-Video in x 1 Audio in (Mini Jack) x 1 Audio in (L/R) x1 Audio out (Mini Jack) x 1 Speaker 10W x 1 Microphone in (mini Jack) x 1 USB (Type A) x 1 (1.5A power supply) RS232 (DB-9pin) x 1 IR Receiver x2 (Front+Rear) ‎ Dimensions (W x H x D mm)‎ 12.36" x 4.5" x 8.5" (314.2x116x216.3mm) ‎ HDTV Compatibility‎ 480i, 480p, 576i, 576p, 720p, 1080i, 1080p‎ Video Compatibility‎ NTSC, PAL, SECAM‎ 3D Support and Compatibility‎ Frame Sequential: Up to 60Hz 720p Frame Packing: Up to 24 Hz 1080pSide by Side: Up to 24Hz 1080pTop Bottom: Up to 60Hz 1080p‎ Audible Noise (Normal/Economic Mode)‎ 36/31 dBA (Normal/Economic mode) ‎ On-Screen Display Languages‎ Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ TraditionalChinese (28 Languages) ‎ Picture Modes‎ **Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 ** Default mode is Presentation. When 3D is on, Picture Modes only shows 3D. When 3D is off, it is not shown in Picture Modes.‎ Accessories (Standard)‎ Power Cord (by region) Remote Control w Battery VGA cable User Manual CD QSG Lens Cover Warranty Card (by region) ‎ Power Supply‎ AC100 to 240V, 3.5A, 50 to 60 Hz‎ Power Consumption‎ 330 W(Normal), 270 W(Eco), Standby <0.5W‎ Power Management Function‎ Automatic power off after 20 minutes without a display source‎ Weight‎ 7.25 lb (3.3 kg)‎
Supplied Accessories
Remote	Carry Bag

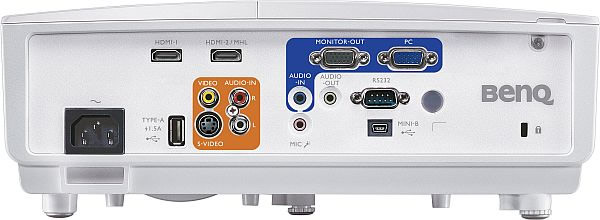

Rear Panel
