| BENQ MH530 DLP Full HD Projector |
|
|
|
 |
For the current BenQ Range Click here |
 |
| Quick Facts: |
|
| BenQ MH530 Throw Distance Chart (Examples for common Sizes) |
| Image Size |
Installation Distance
(Approx. To Lens) |
| 92" (16:9) 2030x1140mm |
From 3.0m to 3.3m |
| 100" (16:9) 2130x1200mm |
From 3.3m to 3.6m |
| 110" (16:9) 2435x1370mm |
From 3.6m to 3.9m |
| 120" (16:9) 2580x1450mm |
From 3.9m to 4.3m |
|
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1080 16:9
Brightness: 3200 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 1.9kg
Fan Noise: 33 / 28db (eco)
Warranty: 2 Years (+1 Year $85)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 10,000hrs |
FEATURES
- HDMI Connection
- Vertical Keystone Correction
- 3D Capable(3D glasses required)
- Optional Wireless
|
Best Choice at Class-leading Value for Small-medium Space
Featuring a brightness of 3200 ANSI lumens and a high contrast ratio of 10000:1, the cost-effective and eco-friendly MH530 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
key features
- Full HD 1080p Resolution
- Easy Installation & Control
- Easy Maintenance
Brilliant Image Performance
Full HD 1080P
Showcase Full-HD content in sharp, 1080P definition and enjoy Blu-ray, video games and HD broadcasting in beautiful, high-contrast quality without downscaling or
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Multi-Function Connectivity
|
Specifications
| Projection System |
DLP |
| Native Resolution |
1080p (1920 x 1080) |
| Brightness (ANSI Lumens) |
3200AL |
| Contrast Ratio |
10000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.55-2.68, f=22-24.1mm |
| Aspect Ratio |
Native 16:9 (5 aspect ratio selectable) |
| Throw Ratio |
1.47-1.62 (95" ±3% @ 3.1m) |
| Image Size (Diagonal) |
70"~150" / 300" |
| Zoom Ratio |
1.1:1 |
| Lamp Type |
196W |
| Lamp Mode (Normal/Economic/SmartEco/LampSave)* |
4000/6000/6500/10000 hours |
| Keystone Adjustment |
1D, Vertical +/- 40 degrees |
| Projection Offset** |
116% ±5% |
| Resolution Support |
VGA(640 x 480) to WUXGA_RB(1920 x 1200) * RB= Reduced blanking |
| Horizontal Frequency |
15k~102KHz |
| Vertical Scan Rate |
23 ~ 120 Hz |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |

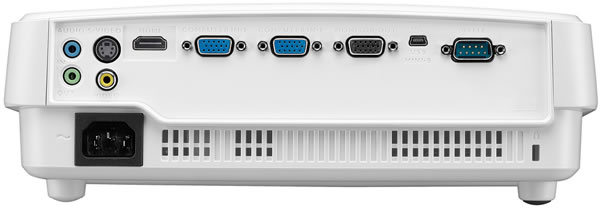

| Interface |
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1 (Only support Computer 1)
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type mini B) x 1 (Download & page/down)
RS232 (DB-9pin) x 1
IR Receiver x 1 (Front) |
| Dimensions (W x H x D mm) |
283x95x222 mm |
| Weight (Without Packing / With Packing) |
1.96KG |
| Audible Noise (Normal/Economic Mode) |
33/28 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
Normal 270W. Eco 220W. Standby <0.5W |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA, PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i |
| Power Management Function |
Automatic power off after 20 minutes without a display source. |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable |
|
Supplied Accessories
|
Remote |
|
|
|
|
| Optional Accessories |
|
|
Extended Warranty For Projectors
|
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes |
[More Information] |
|
|
|
|
|
Kensington 2.4Ghz Wireless Presentation Remote - With Brighter Green Laser Pointer |
Normally $119.95
Flat Rate Freight!
$16 Insured Australia Wide.
Pick up Available
|
|
FEATURES
- Wireless range up to 50 meters
- Green laser pointer is 10X brighter than standard red
- Low battery indicator
- Backlit buttons
- Two modes—switch from presenter to cursor control mode
- On/off switch
- USB receiver stores inside
- Carry pouch included
- Controls Keynote and PowerPoint
|
- Windows Compatible
- Mac Compatible
[More Information]
|
|
Universal Flush Projector Ceiling Mount FB-1 *Recommended* |
| White - $149 |
|
| Black - $149 |
|
|
|
SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
|
FEATURES
- Direct to ceiling mount (150mm)
-
Suits most projectors with 3 or 4 holes
|
|
|
Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors |
1 Metres |
$19.95 |
|
2 Metres |
$29.95 |
|
3 Metres |
$39.95 |
|
5 Metres |
$49.95
|
|
10 Metres |
$79.95 |
|
15 Metres |
$99.95 |
|
20 Metres |
$149.95 |
|
|
- High Speed HDMI CAT2 cable
- Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
- Designed to support the features of HDMI V2.0 and previous versions
- Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
- High Speed HDMI performance with a dedicated Ethernet channel.
- Shieled cable construction for optimum RF & EMI Protection
- Gold Plated terminals
- 12 Month Warranty
*We recommend keeping the length short for 4K under 10m - especially for 60hz
|
|
|
Premium VGA Monitor Cable |
5 Metres |
$29.95
|
|
10 Metres |
$59.95 |
|
15 Metres |
$69.95 |
|
20 Metres |
$89.95 |
|
30 Metres |
$110.95 |
|
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
- Features UL Approved Cabling
- Filters included on both ends cutting down on noise
- Maintains stronger signals using a shielded cabling run.
- Comes in 15pin D-sub format with Male to Male conectors
|
|
 |
